CTF350CJ3C130
1300V, 350A, 6in1
The J3-T-PM*1 and pin fin baseplate are joined together to form a 6-in-1 power module. Equipped with SiC-MOSFET, it contributes to extending the driving range and improving power consumption of EVs, PHEVs, etc.
*1：Transfer molded Power Module
Features
- 6-in-1, integrated water-cooling fin package with pin fins
- Direct water-cooled high heat dissipation package
- SiC-MOSFET uses a low-loss trench type

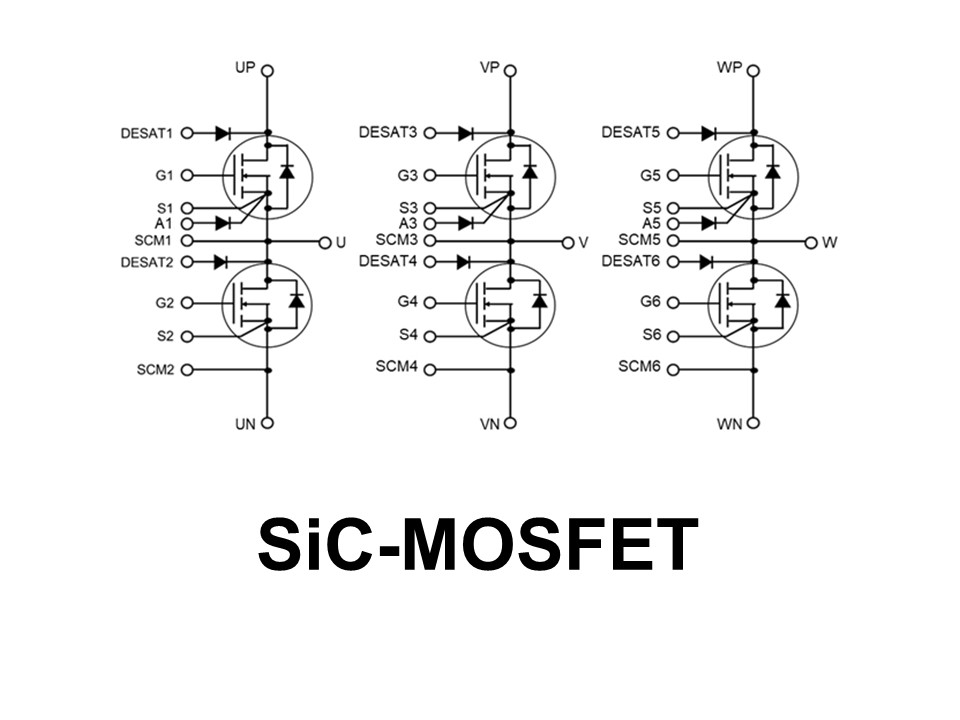

- Multi-function chip (Si) is built-in to achieve small size and low inductance
- Equipped with SCM*2 to ensure safe operation in the event of a short circuit
- Evaluation kit available
- *2：Short Circuit Monitor
Applications
- EV・HEV
- High reliability inverter
Main Specifications
| Parameter | Level | Value | Unit |
|---|---|---|---|
| Main Applications | Automotive | ||
| Supply situation | Under development | ||
| Rated voltage | Max | 1300 | V |
| Rated current | Max | 350 | A |
| Connection | 6-PACK | ||
| Package type |
Transfer molded Power Module ( integrated water-cooling fin package with pin fins ) |
||
| Device | SiC-MOSFET |
Please contact us for samples, data sheets, application notes and evaluation kits.
