CTF350DJ3A130
1300V, 350A, 2in1
This is the latest generation of our T-PM*1, which has a proven track record in the automotive market, and realizes a small module size. Equipped with SiC-MOSFET, it contributes to extending the driving range and improving power consumption of EVs, PHEVs, etc.
*1：Transfer molded Power Module
Features
- About 60% smaller modules compared to existing products*2 , which will contribute to smaller xEV inverters
- Compact, lightweight, and low profile for a wide range of applications
- 2in1, low thermal resistance, high reliability transfer mold package
- SiC-MOSFET uses a low-loss trench type

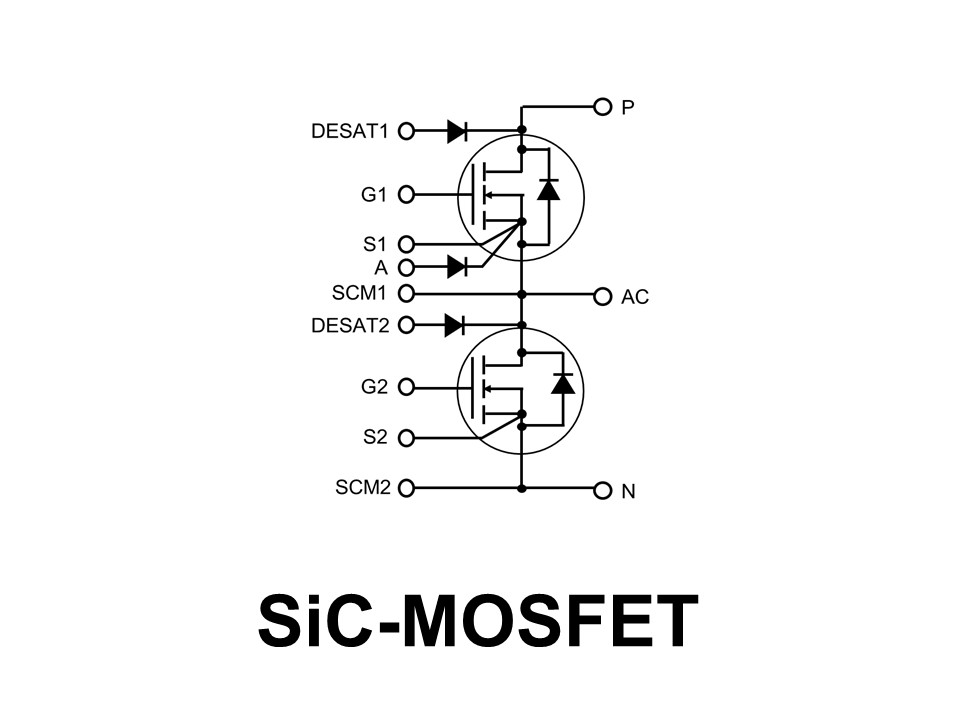

- Multi-function chip (Si) is built-in to achieve small size and low inductance
- Equipped with SCM (Short Circuit Monitor) to ensure safe operation in the event of a short circuit
- *2：2in1 J-Series T-PM(CT300DJH120)
Applications
- EV・HEV
- High reliability inverter
Main Specifications
| Parameter | Level | Value | Unit |
|---|---|---|---|
| Main Applications | Automotive | ||
| Supply situation | Under development | ||
| Rated voltage | Max | 1300 | V |
| Rated current | Max | 350 | A |
| Connection | 2-PACK | ||
| Package type | Transfer molded Power Module | ||
| Device | SiC-MOSFET |
Please contact us for samples, data sheets and application notes.
