GOT2000 Series

Sophisticated Programmable Controller Interactive Features

Visually check logging data

Log viewer function

Having problems?
Having problems?

How can I check the logging data collected by programmable controllers without opening a cabinet?

GOT will solve your problems!
GOT will solve your problems!

GOT displays the logging data, which achieves quick troubleshooting without using a personal computer at the worksite.

Function features

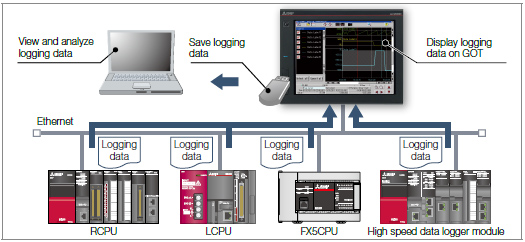

GOT displays the logging data collected by the data logging function of programmable controller CPUs or other modules.

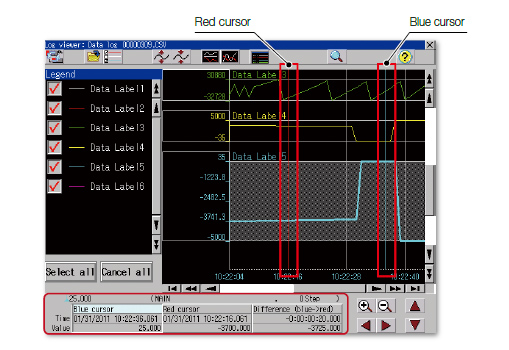

Quick check of data by multiple cursors

Multiple cursors make it easier to visually check how the data has changed. You can search for the data by specifying the time and index No.

Logging data can be easily changed

FA transparent function enables you to view the logging data with GX LogViewer on a personal computer and to change logging settings with CPU Module Logging Configuration Tool.

Logging data can be obtained without opening a cabinet

Logging data can be obtained without opening a cabinet

The logging data can be copied to a USB memory device attached to a USB interface on the front (or the backside) of the GOT. It reduces the need to remove a memory card from a CPU or high speed data logger module to retrieve the logging data.

Specification details and restrictions* For the necessary option devices, please refer to the “Function list”.

● Target models
RCPU*1, QCPU*2, LCPU*3, FX5CPU*4, high speed data logger module (MELSEC iQ-R Series/Q Series), BOX data logger, CNC (C80, C70)
  • *1 Supported by R01CPU, R02CPU, R04CPU, R08CPU, R16CPU, R32CPU, R120CPU, R04ENCPU, R08ENCPU, R16ENCPU, R32ENCPU, R120ENCPU only.
  • *2 Supported by Q03UDVCPU, Q04UDVCPU, Q06UDVCPU, Q13UDVCPU, Q26UDVCPU only.
  • *3 Excluding L02SCPU, L02SCPU-P.
  • *4 Restrictions apply to the CPUs. For the details, please refer to the relevant product manual.
● Supported connection types*1
Ethernet connection*2
  • *1 For the details of connectable models of each connection type, please refer to the “Connectable model list” (page 152).
  • *2 R01CPU, R02CPU, R04CPU, R08CPU, R16CPU, R32CPU, R120CPU, QCPU, and LCPU are supported via the built-in Ethernet port; R04ENCPU, R08ENCPU, R16ENCPU, R32ENCPU, and R120ENCPU are supported via the port CPU P1.
Recommended industries
Automotive
SEMICON, LCD
Electronics
F & B
Pharma
Plant
Supported GOT types
GT27
GT25
GT23
GT21
GS21
SoftGOT
