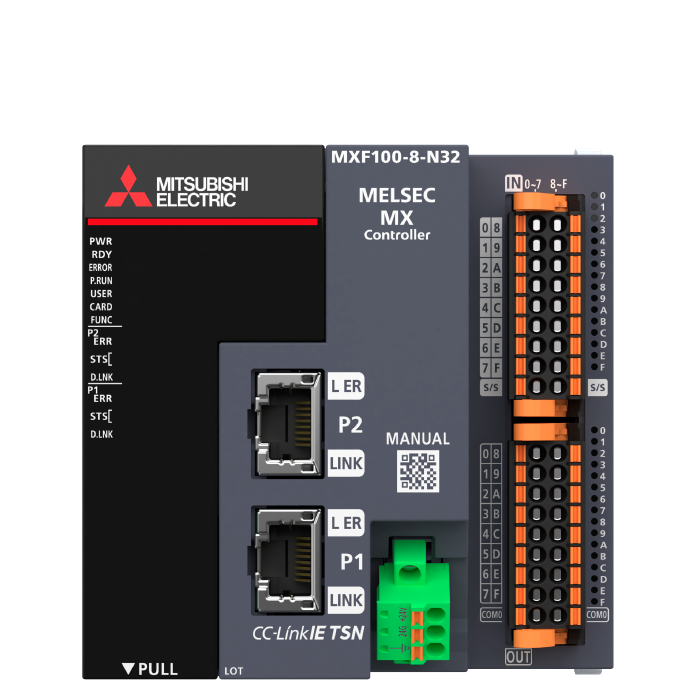

MELSEC MX Controller - MX-F model
Compact integrated controller for standalone machines and modular systems
The MX-F model integrates three types of control on one platform:
Sequence
Motion
Network
With the MX-F model, users can build compact and flexible control systems by combining with MELSEC iQ-F Series modules — ideal for standalone machines and modular equipment.
MX-F Concept
High-speed control in a compact design
Integrated into one controller, delivers:
- High-speed motion control
- Stable, high-accuracy performance
- Efficient synchronization for standalone machines
Optimized for installation space while maintaining advanced control performance

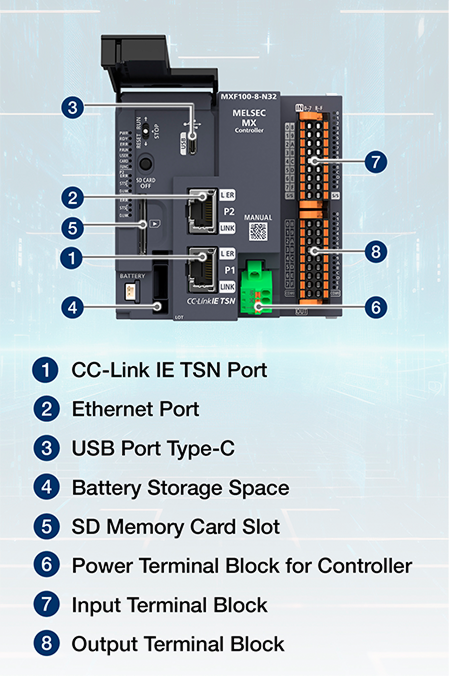

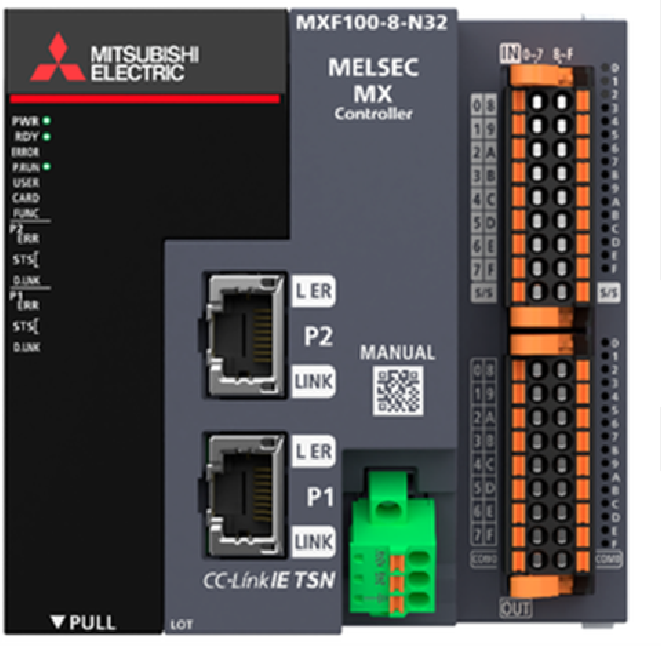

MX-F model details
Model
Number of controllable axes
(Real drive axes)
8 axes
16 axes
MX-F is compatible with and can be used with products in the MELSEC iQ-F Series according to the latest catalog.
Key benefits
- Flexible I/O expansion
- Integrated servo and network control
- Fast deployment for standardized machines

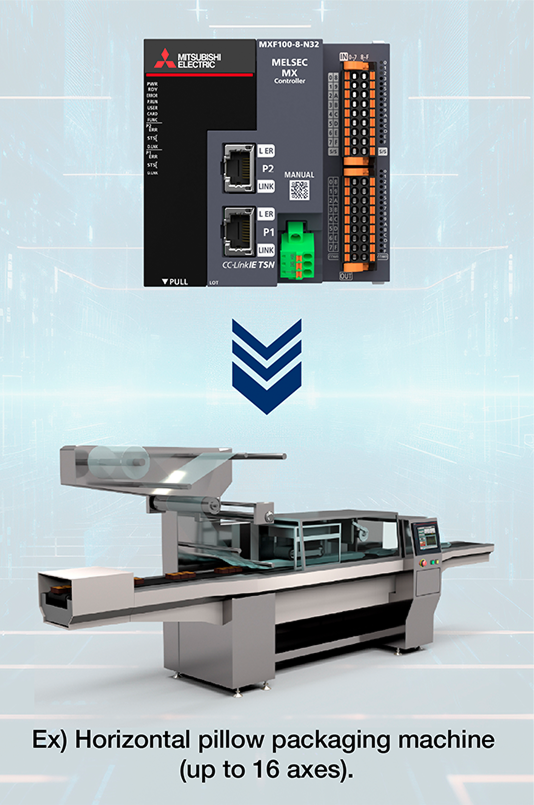

Ideal applications
Packaging machines
Automated assembly machines
Standalone processing equipment
Cost-optimized modular systems

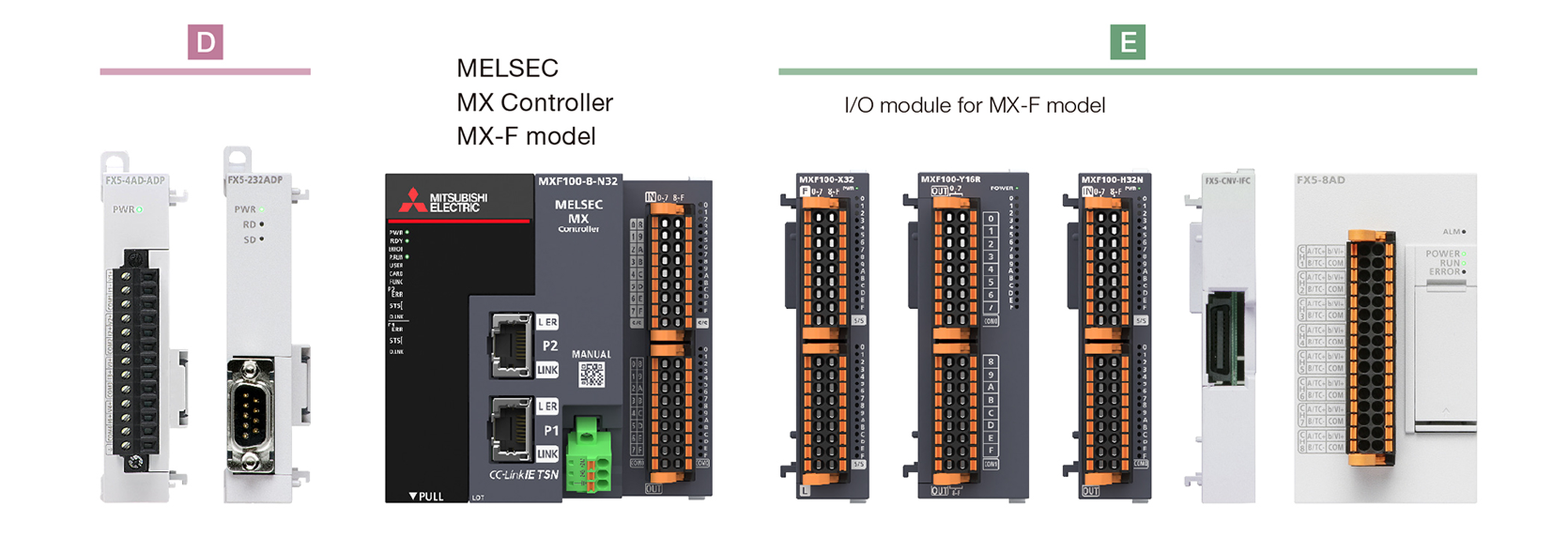

MX-F compatibility
MX-F can be combined with MELSEC iQ-F Series modules and devices, ensuring:
- System-wide synchronization
- Easy configuration
- Future-ready expansion

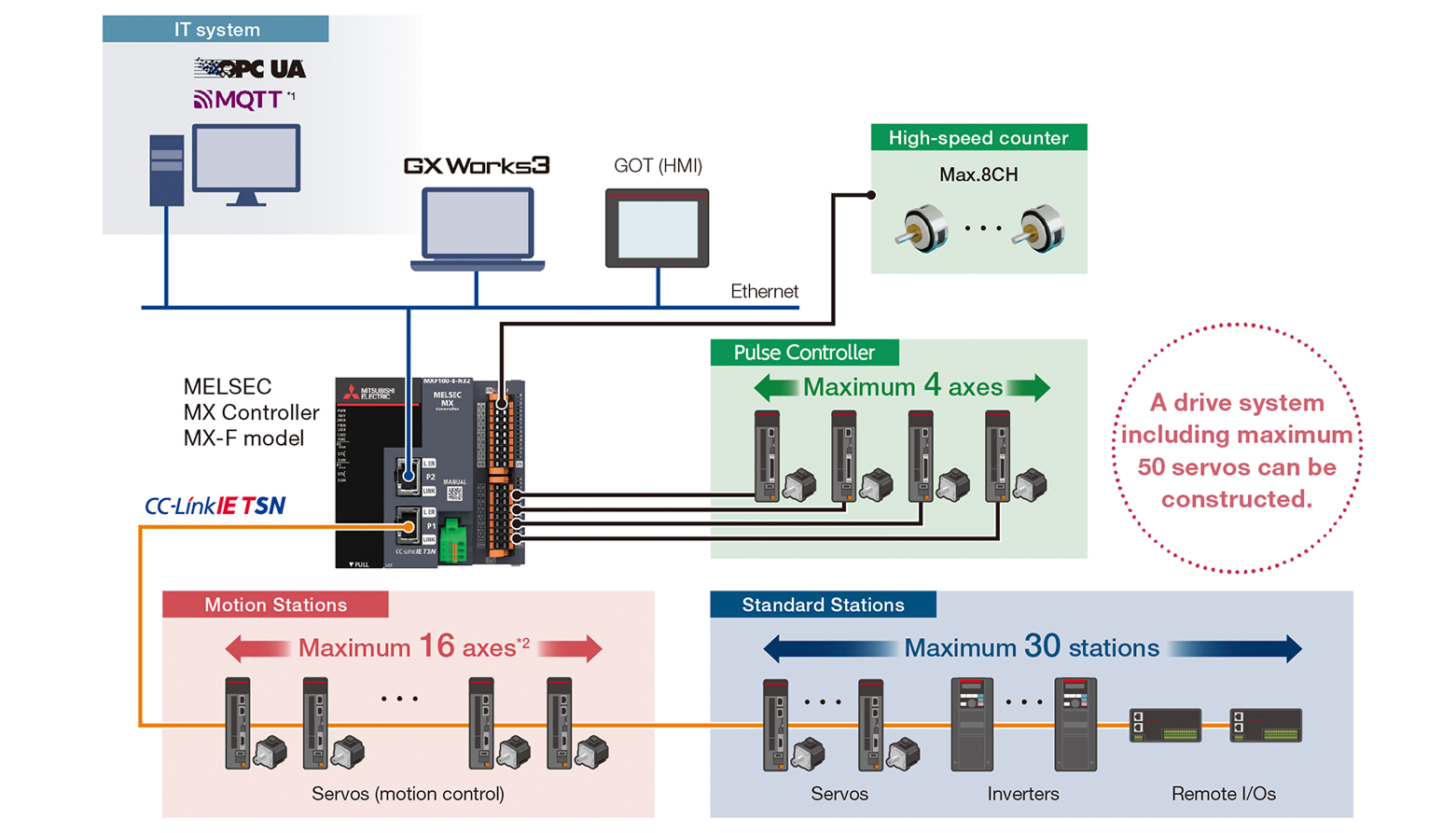

The MX-F model can be configured with:
*1: Some functions will be supported in future updates. Future support
