Full SiC SLIMDIP/Hybrid SiC SLIMDIP

Added SiC-equipped products to the SLIMDIP lineup

The first SiC versions in SLIMDIP achieves excellent output and power loss reduction for energy savings in small- to large-capacity appliances.

  • ##@.FIGURE_04_TTL_VEW##
  • ##@.FIGURE_05_TTL_VEW##
  • ##@.FIGURE_06_TTL_VEW##
  • ##@.FIGURE_04_01_TTL_VEW##
  • ##@.FIGURE_05_01_TTL_VEW##
  • ##@.FIGURE_06_01_TTL_VEW##
##@.FIGURE_04_TTL_VEW##
##@.FIGURE_05_TTL_VEW##
##@.FIGURE_06_TTL_VEW##
##@.FIGURE_04_01_TTL_VEW##
##@.FIGURE_05_01_TTL_VEW##
##@.FIGURE_06_01_TTL_VEW##
Previous Next

Features

  • The first SiC versions in SLIMDIP series of compact, terminal-optimized modules.
  • Reducing package size 30% compared to Super mini DIPIPM.
  • The terminal layout and protection functions are equivalent to the conventional SLIMDIP series.
  • Full SiC SLIMDIP significantly reduces power loss compared to Si-based products for more energy-efficient appliances.
  • Integration of both SiC-MOSFET and RC-IGBT※1 into SLIMDIP enables Hybrid SiC SLIMDIP to reduce power loss compared to the current Si-based products.
  • ※1：Reverse Conducting IGBT
DIPIPM, SLIMDIP, DIPIPM+, SOPIPM, DIPPFC and CSTBT are trademarks of MITSUBISHI ELECTRIC CORPORATION.

Applications

  • Air-conditioner
  • Clothes Washer and Dryer
  • Fan and Brower
  • Small capacity inverter
  • Small capacity servo
  • Pump

Lineup

VCES / VDSS = 600V
ConfigurationIC/ID [A]Type nameDataSheet
Full SiC SLIMDIP15
Hybrid SiC SLIMDIP15

Featured Products

Built-in power chips

The Full-SiC SLIMDIP adopts an all-SiC configuration, while the Hybrid-SiC SLIMDIP adopts a parallel configuration using an SiC MOSFET and an RC-IGBT.
  • ##@.TEXT_22_01_VEW##

    SLIMDIP (e.g. SLIMDIP-L)

  • ##@.TEXT_22_02_VEW##

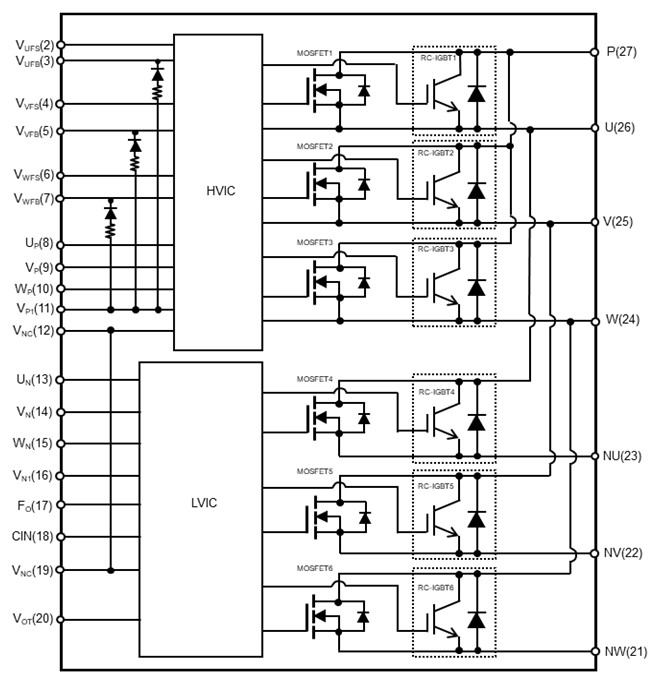

    Hybrid SiC SLIMDIP

  • ##@.TEXT_22_03_VEW##

    Full SiC SLIMDIP

Loss reduction by SiC SLIMDIP (ratio comparison to Si-based products)

By incorporating SiC MOSFET, significant loss reduction has been achieved compared to conventional products equipped with Si chip.
  • ##@.TEXT_23_01_VEW##

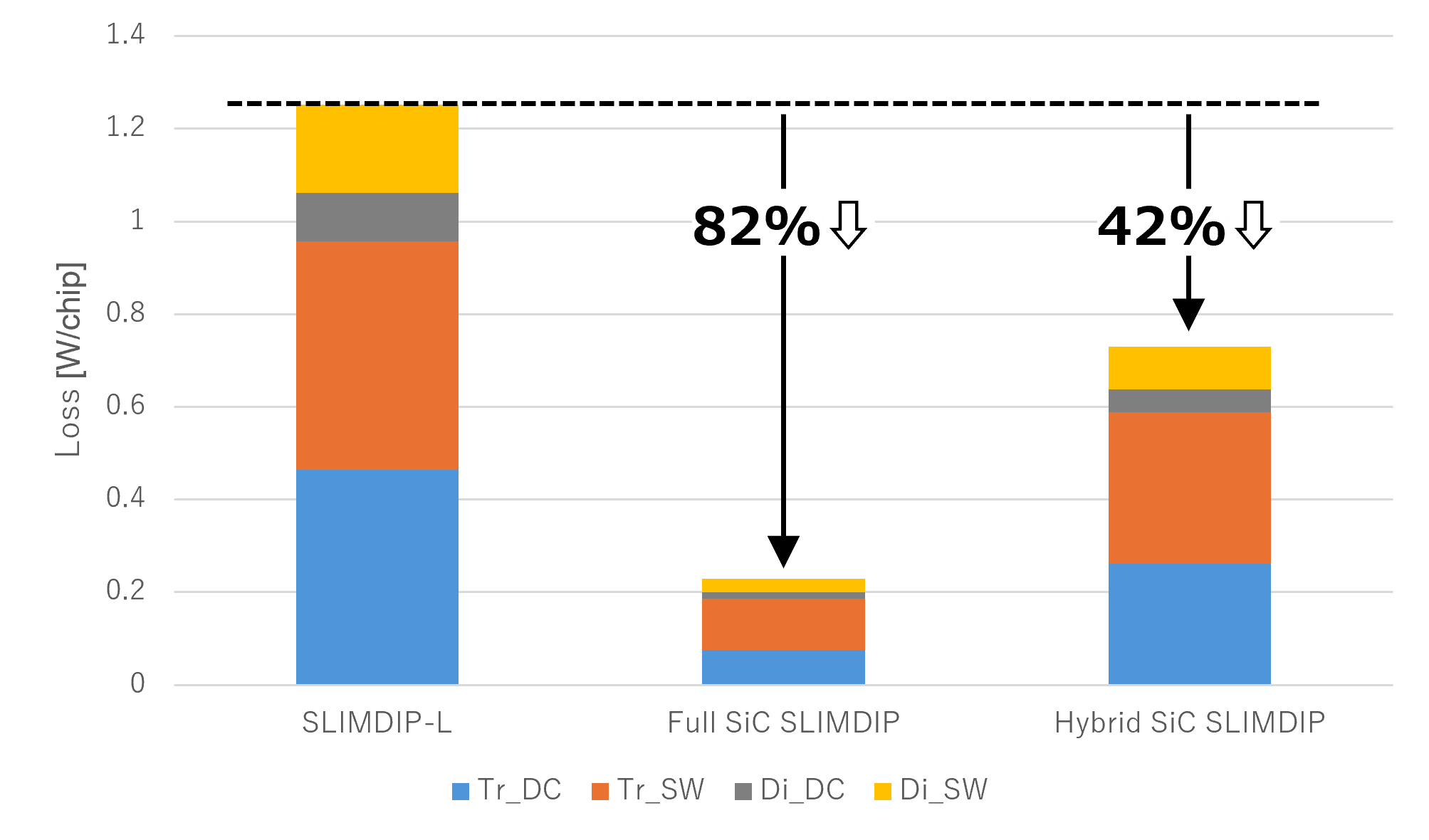

    Io = 1.5Arms

  • ##@.TEXT_23_02_VEW##

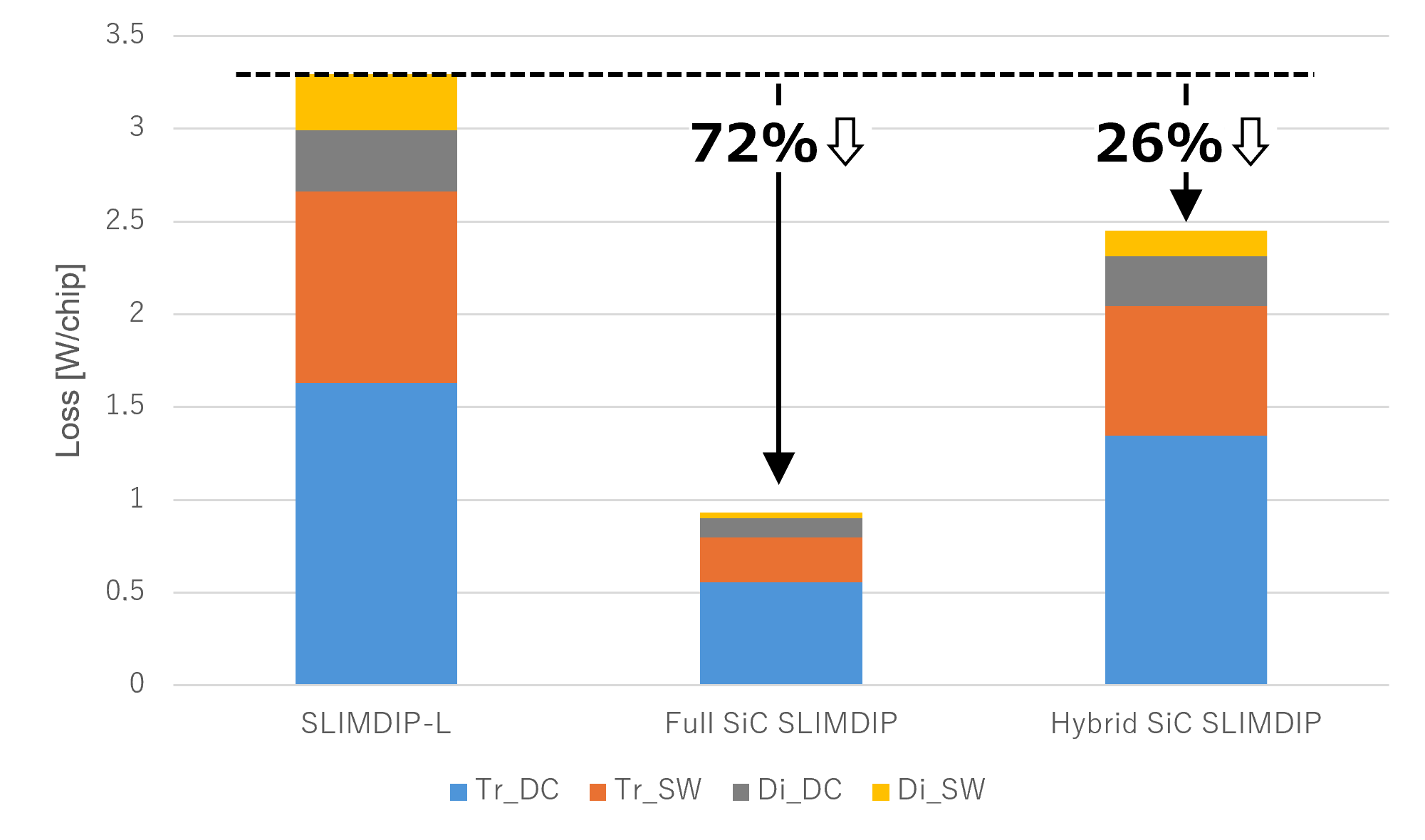

    Io = 4Arms

Simulation conditions：three-phase modulation, VCC/VDD = 300V, fC = 5kHz, fO = 60Hz, P.F.=0.8, Modulation=1, Tj=125℃ data
