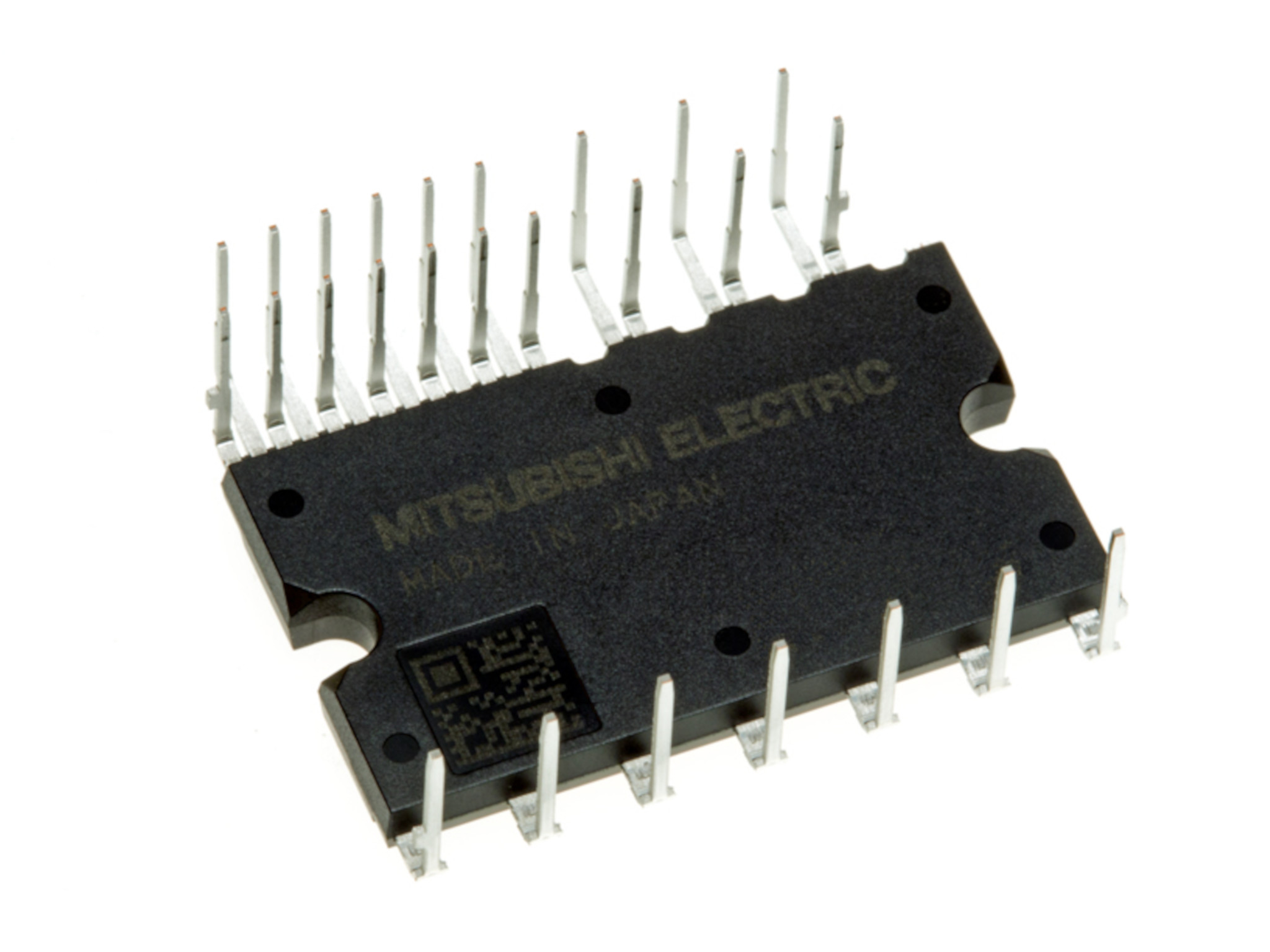

SLIMDIP
Small-capacity package ideal for low-cost inverters
This contributes to the simplification of inverter PCB design and downsizing of home electric appliances such as air conditioning, washing machines, and refrigerators — all of which are becoming increasing high-functional and high-performance.
Features

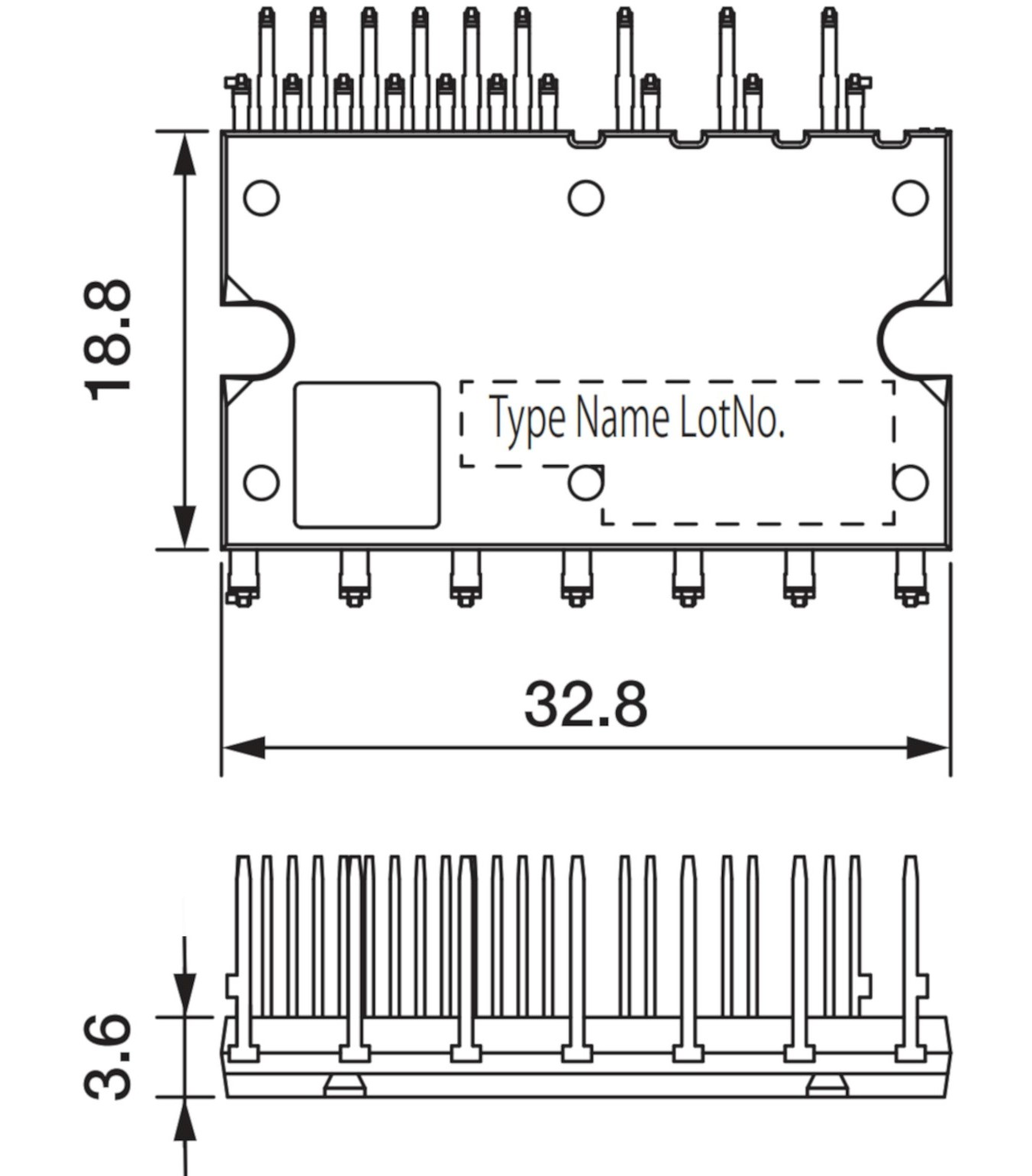

- 30% smaller package size compared with Super Mini DIPIPM™, due to being equipped with an RC-IGBT*1 which implements the thin wafer structure of 7th generation IGBT

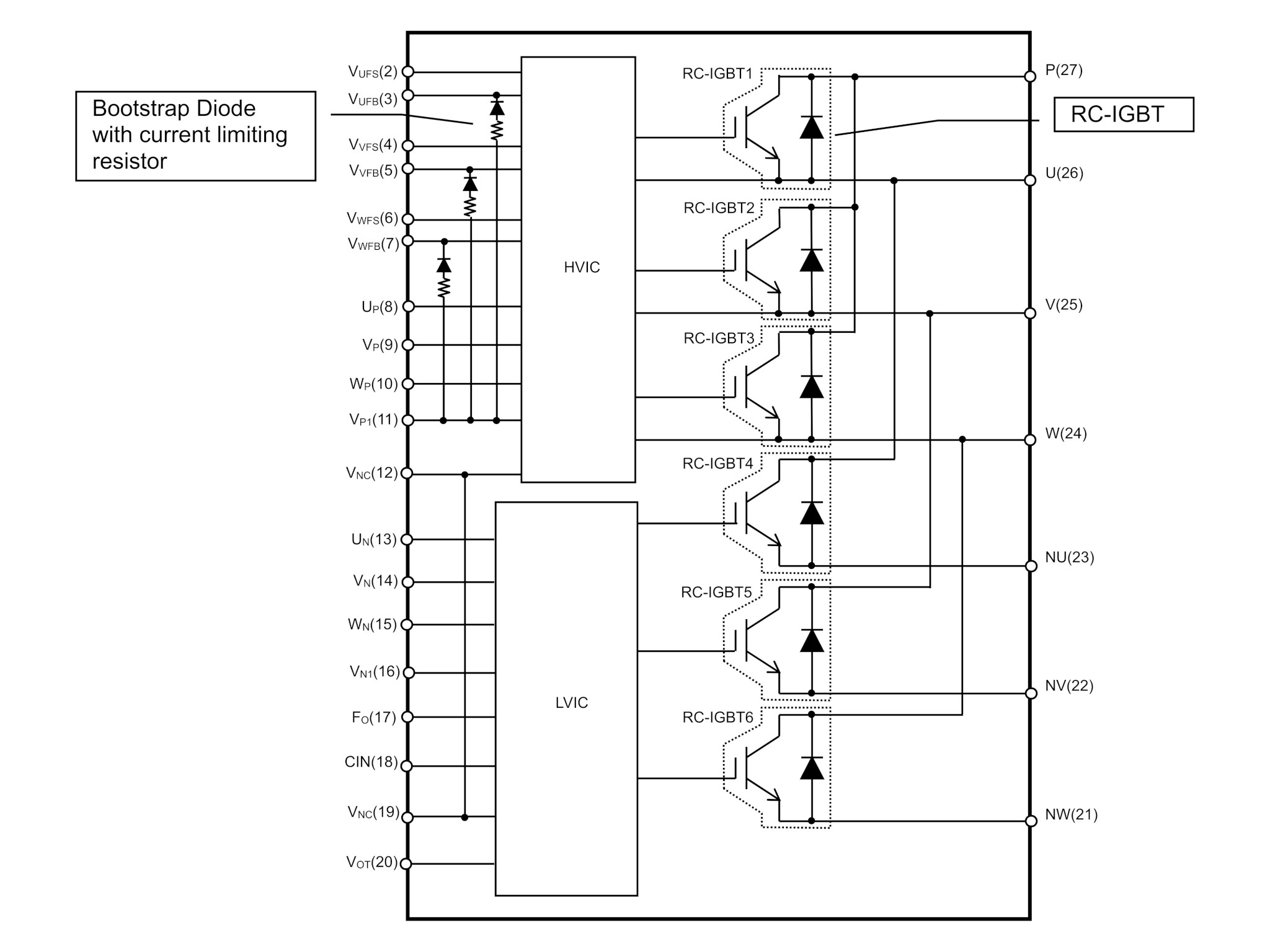

- A built-in control IC with protection functions and a BSD*2 with a current limiting resistor reduces the number of external components
- Adding a new GND terminal for the high-voltage side drive power supply simplifies the high-voltage terminal pattern on the PCB, thus contributing to downsizing and simplification of system design.
- The maximum guaranteed case temperature has been expanded to 115℃ for greater flexibility in heat dissipation design
- In addition to an over-temperature protection function that automatically protects against temperature rise, a temperature output function that outputs the temperature of the control IC section as an analog signal improves the degree of freedom in temperature protection design.
- ※1：Reverse Conducting IGBT: A reverse conducting IGBT with a built-in free-wheeling diode and 1 chip
- ※2：Bootstap Diode
DIPIPM, SLIMDIP, DIPIPM+, SOPIPM, DIPPFC and CSTBT are trademarks of MITSUBISHI ELECTRIC CORPORATION.
Applications
- Air-conditioner
- Clothes Washer and Dryer
- Fan and Brower
- Small capacity inverter
- Small capacity servo
- Pump
