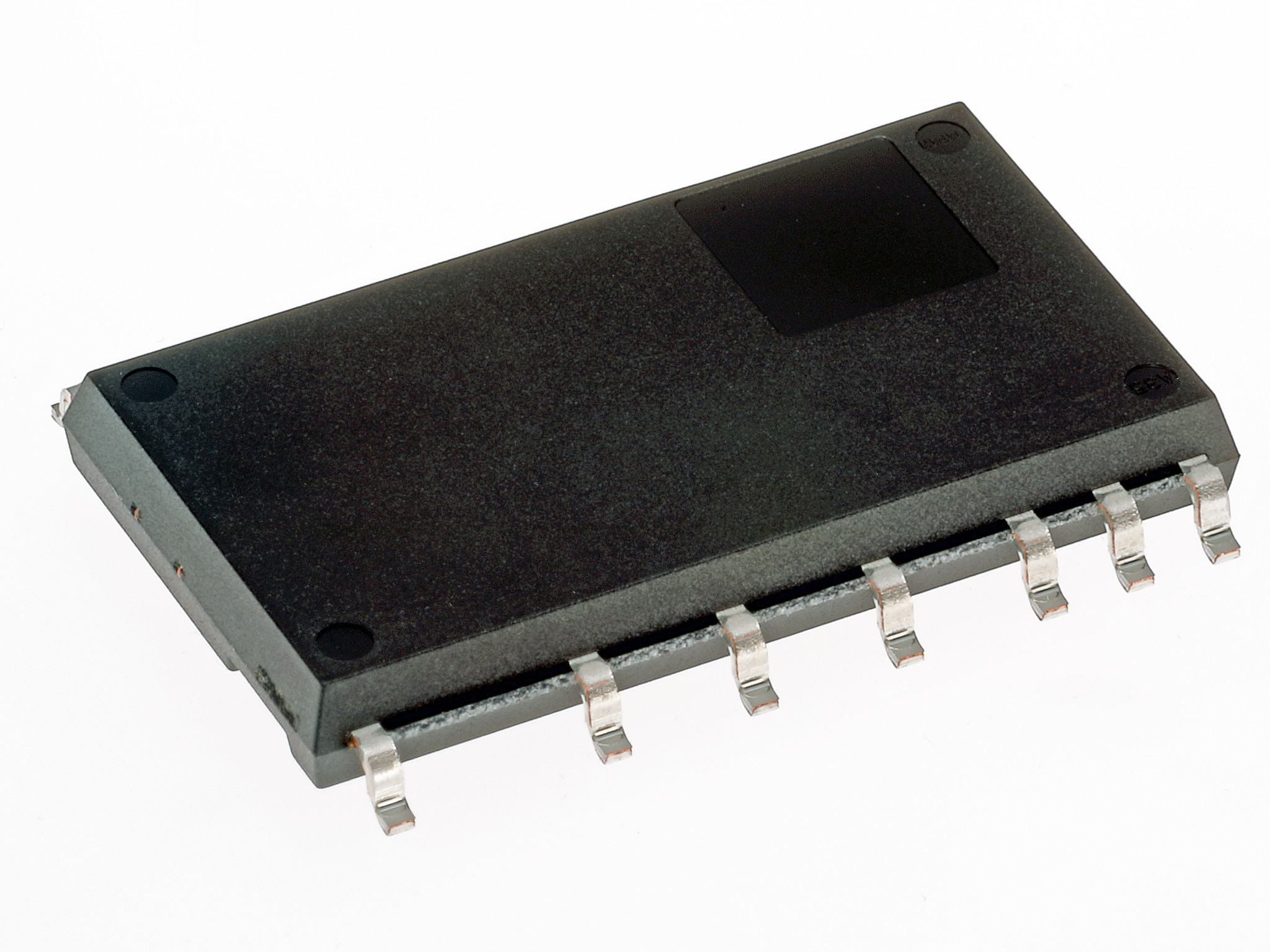

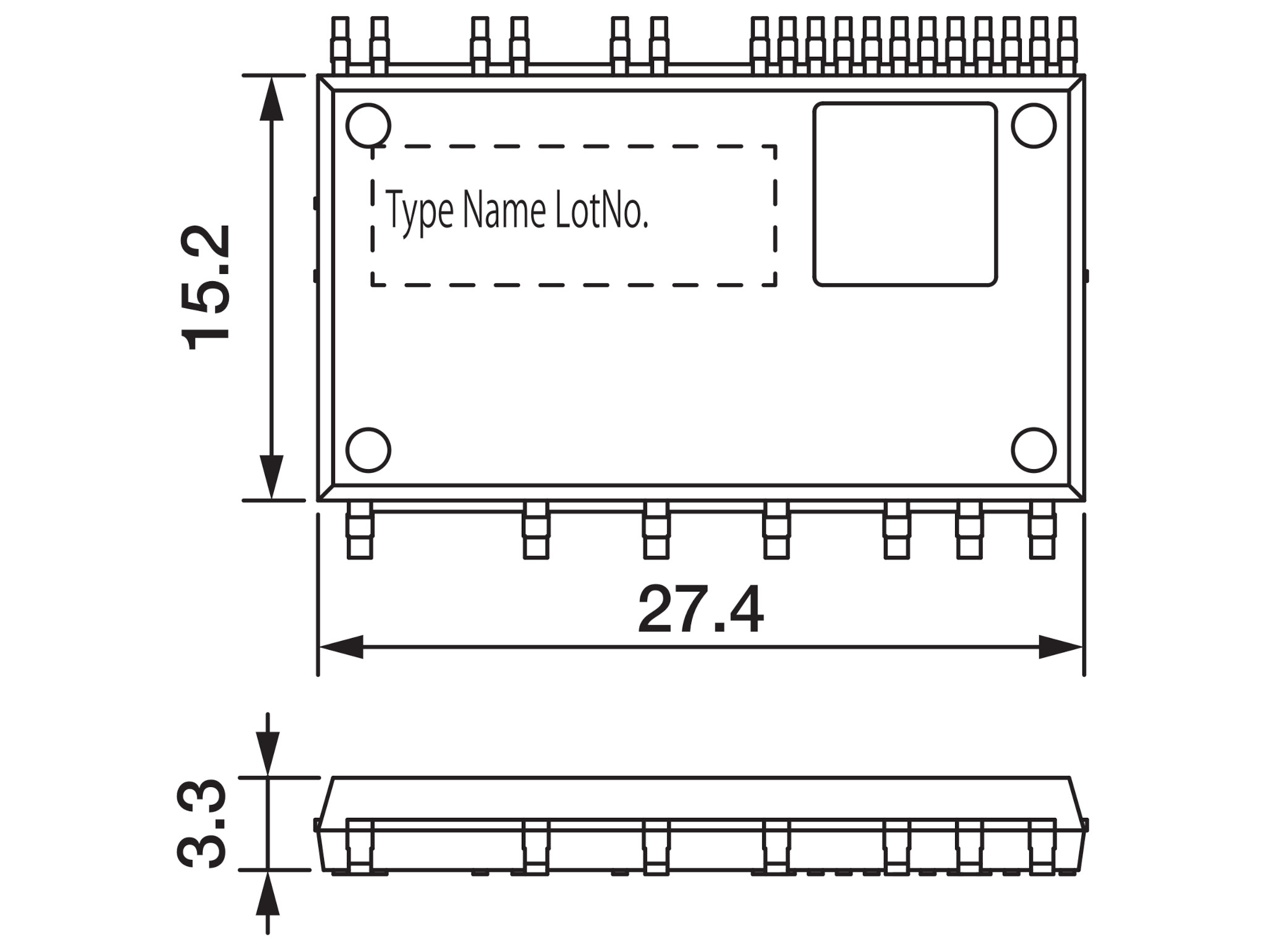

SOPIPM
SMD(Surface-mount package) type IPM
SOPIPM™ is an IPM (intelligent power module) adopting a surface-mount package with easy PCB mounting. It is ideal for small-capacity motor drive applications with limited mounting space, such as air conditioners and fan motors.
Features
- Optimized pin layout facilitates PCB design and contributes to reduced mounting area including peripheral components
- PCB mounting has been made easier due to eliminating the need for the coating application process through securing insulation distance between terminals
- Equipped with a gate drive circuit and control IC with protection functions equivalent to our DIPIPM™. Features a newly added upper/lower continuity prevention interlock function.
- Equipped with an RC-IGBT*1 to realize highly efficient inverter operation while reducing package size
- A built-in BSD*2 with a current limiting resistor reduces the number of external components
- ※1：Reverse conducting IGBT
- ※2：Bootstap Diode
DIPIPM, SLIMDIP, DIPIPM+, SOPIPM, DIPPFC and CSTBT are trademarks of MITSUBISHI ELECTRIC CORPORATION.
Applications
- Air-conditioner
- Clothes Washer
- Refrigerator
- Dishwasher
- Fan
- Pump
Lineup
| Type name | Rated durrent | Rated voltage |
|---|---|---|
| 2A | 600V |
Pickup

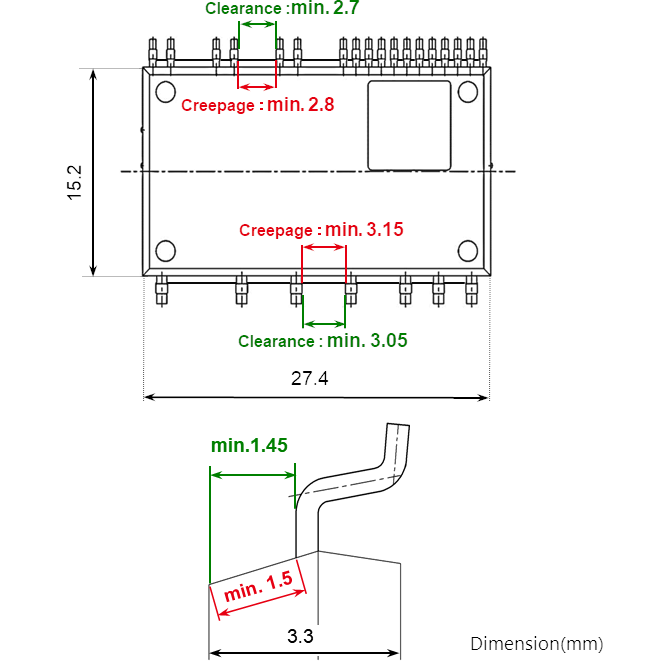

Optimal terminal layout securing insulation distance
-
Secure insulation distance between terminals
-

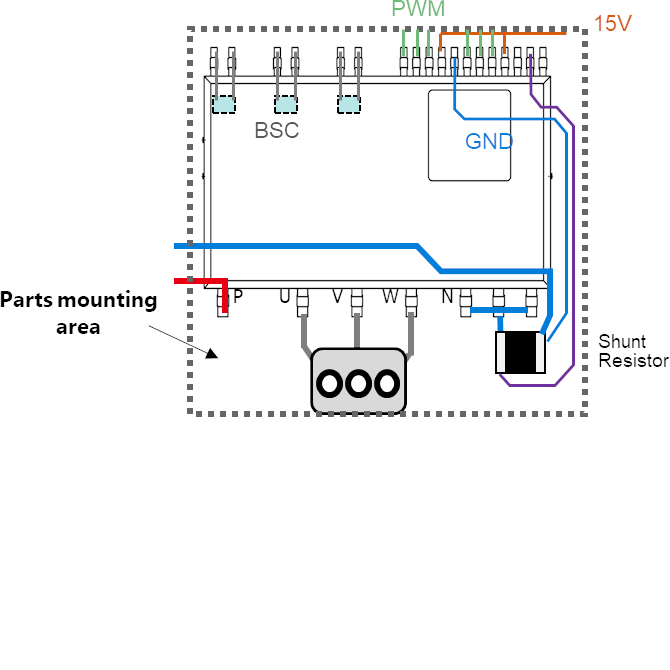

Optimal terminal layout
No need for additional components due to having built-in protection functions, minimized mounting surface area by simple wiring, and no need for additional processes due to sufficient insulation distance between terminals; as such, it is anticipated this product will offer around a 50 yen cost reduction effect compared to rival products.

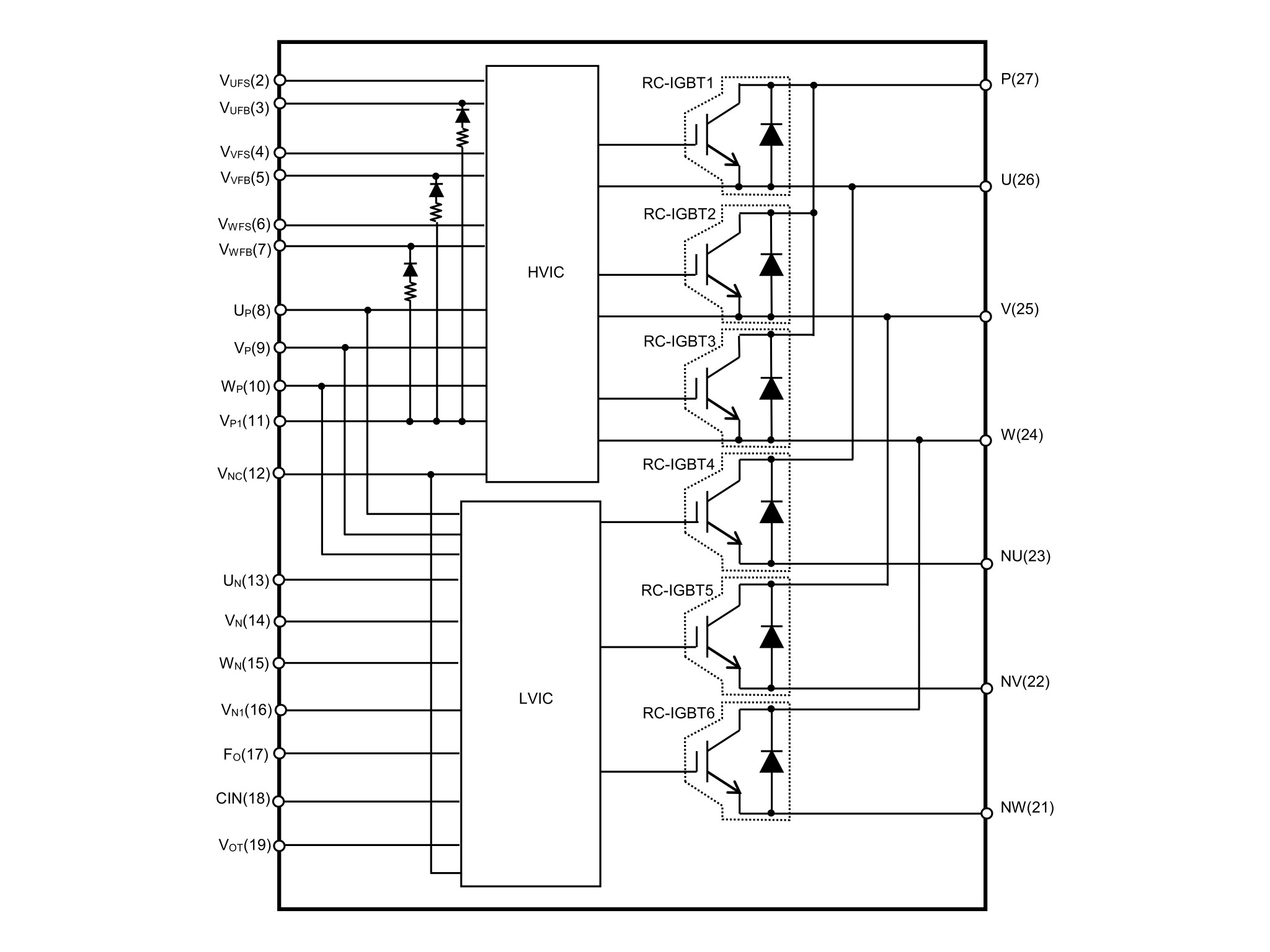

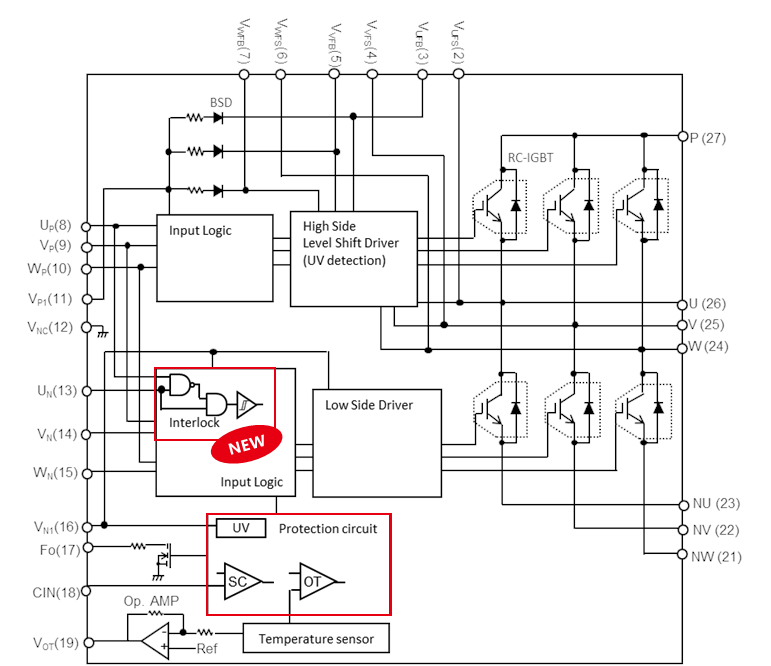

Internal function block diagram
Protection function ensuring safe and robust operations
An interlock function has been added to protection functions (UV/SC/OT) equivalent to the current DIPIPM.- UV: Power supply under-voltage protection
- SC: Short-circuit protection
- OT: Over Temperature protection
- IL: Interlock
- VOT: Analog Temperature Output
- BSD: Bootstrap Dipde
