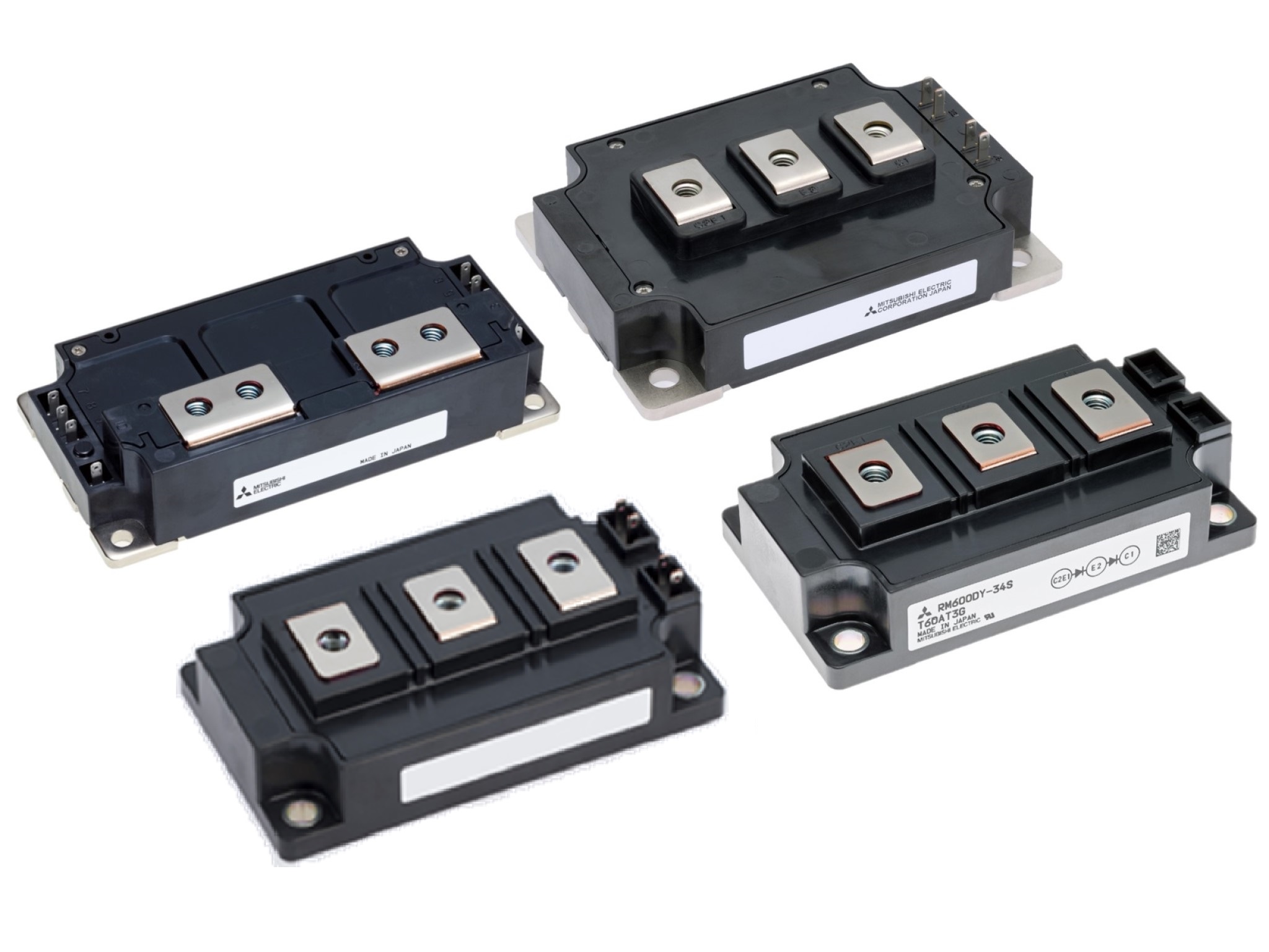

IGBT modules for three-level inverter
While reducing the loss of power devices that comprise an inverter circuit is important to power loss reduction, the adoption of multi-level inverters is anticipated to further reduce power loss (achieve high efficiency.) Mitsubishi Electric has developed a power module that supports three levels by using a low-loss power chip and equipping the 3-level inverter with the necessary circuits.
Features
- Power consumption cut by approx. 30%*1 to support three-level inverters
- We have developed a new package*2 which contributes to low inductance and simplification of the inverter circuit configuration
- IGBT specifications have been optimized*3 to contribute to development of a compact new package with low inductance
- We have included 4in1*4 /1in1/2in1 in the lineup to contribute to more compact inverters with greater design freedom
- ※1：Comparison of a three-level inverter equipped with this product and two-level inverter equipped with our conventional product
- ※2：We have developed new packages with innovative terminal positions; external dimensions are 130 mm x 67 mm for the 1in1 and 2in1 (C2) types, and 115 mm x 82 mm for the 4in1 type.
- ※3：Optimized CSTBTTM(Mitsubishi Electric's unique IGBT that makes use of the carrier cumulative effect) for three-level inverters
- ※4：4in1 module integrating one arm of the three-level inverter in a single package
Applications
- Renewable energy
- Motion control
- Power supply, Uninterruptable power supply (UPS)

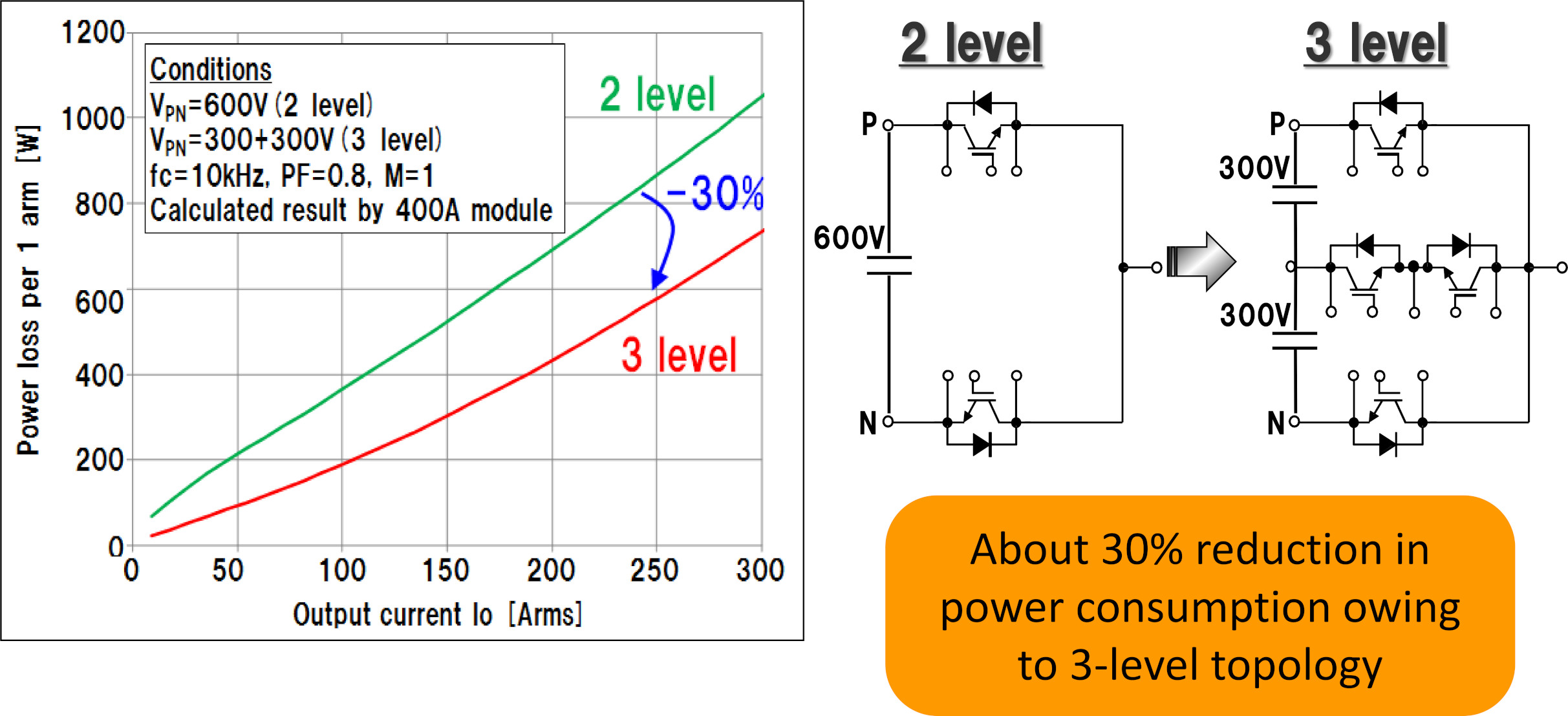

Power loss reduction

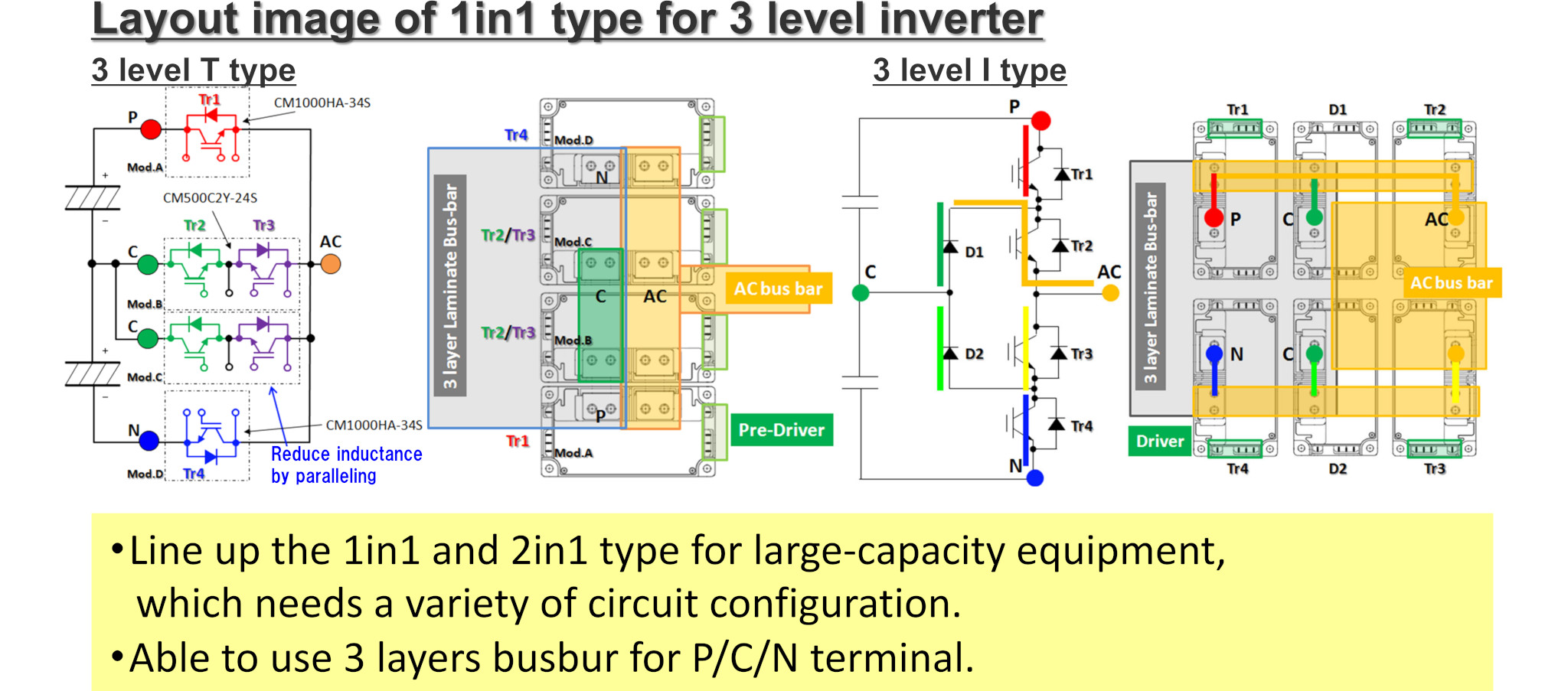

Layout image
Lineup
IGBT modules (1200V)
| IC (A) | Connection | Type name | Dimension | Package |
|---|---|---|---|---|

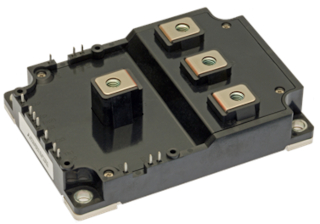

| 200 | 115 × 82 mm |  | ||

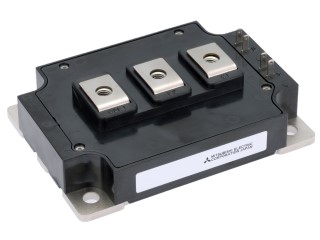

| 400 | ||||
110 × 80 mm |  | |||
| 450 | 108 × 62 mm |  | ||
110 × 80 mm |  | |||
| 500 | 130 × 67 mm |  | ||
| 600 | 108 × 62 mm | | ||

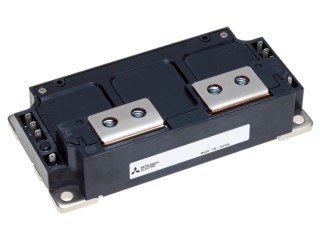

| 1400 | 130 × 67 mm | | ||

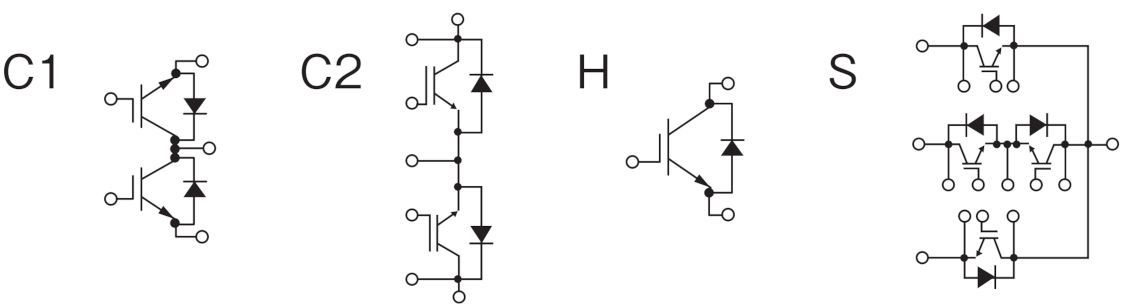

| Connection |  | |||
IGBT modules (1700V)
| IC (A) | Type name | Dimension | Package | |
|---|---|---|---|---|
| 600 | 130 × 67 mm | | ||
| 800 | 130 × 67 mm | | ||
| 1000 | 130 × 67 mm | | ||
| Connection |  | |||
Diode modules (1200V)
| IC (A) | Type name | Dimension | Package | |
|---|---|---|---|---|
| 1400 | 130 × 67 mm | | ||

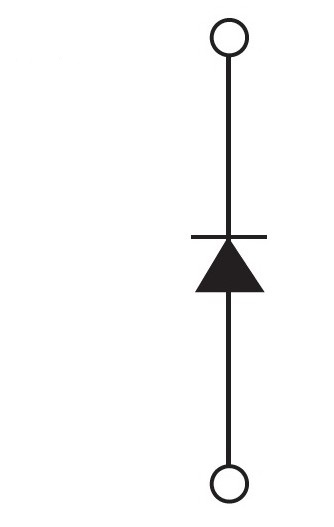

| Connection |  | |||
Diode modules (1700V)
| IC (A) | Type name | Dimension | Package | |
|---|---|---|---|---|

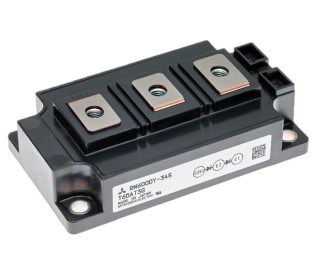

| 600 | 108 × 62 mm |  | ||
| 800 | 108 × 62 mm | | ||

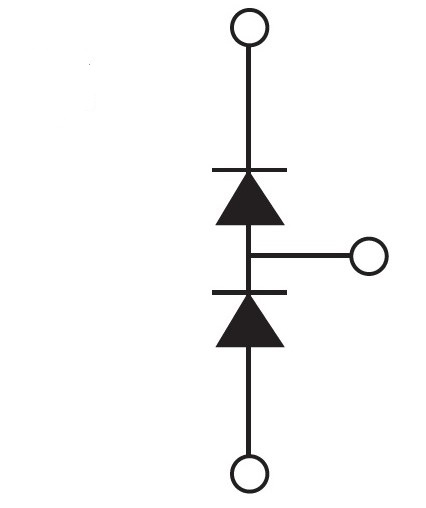

| Connection |  | |||
