IGBT modules for high-speed switching

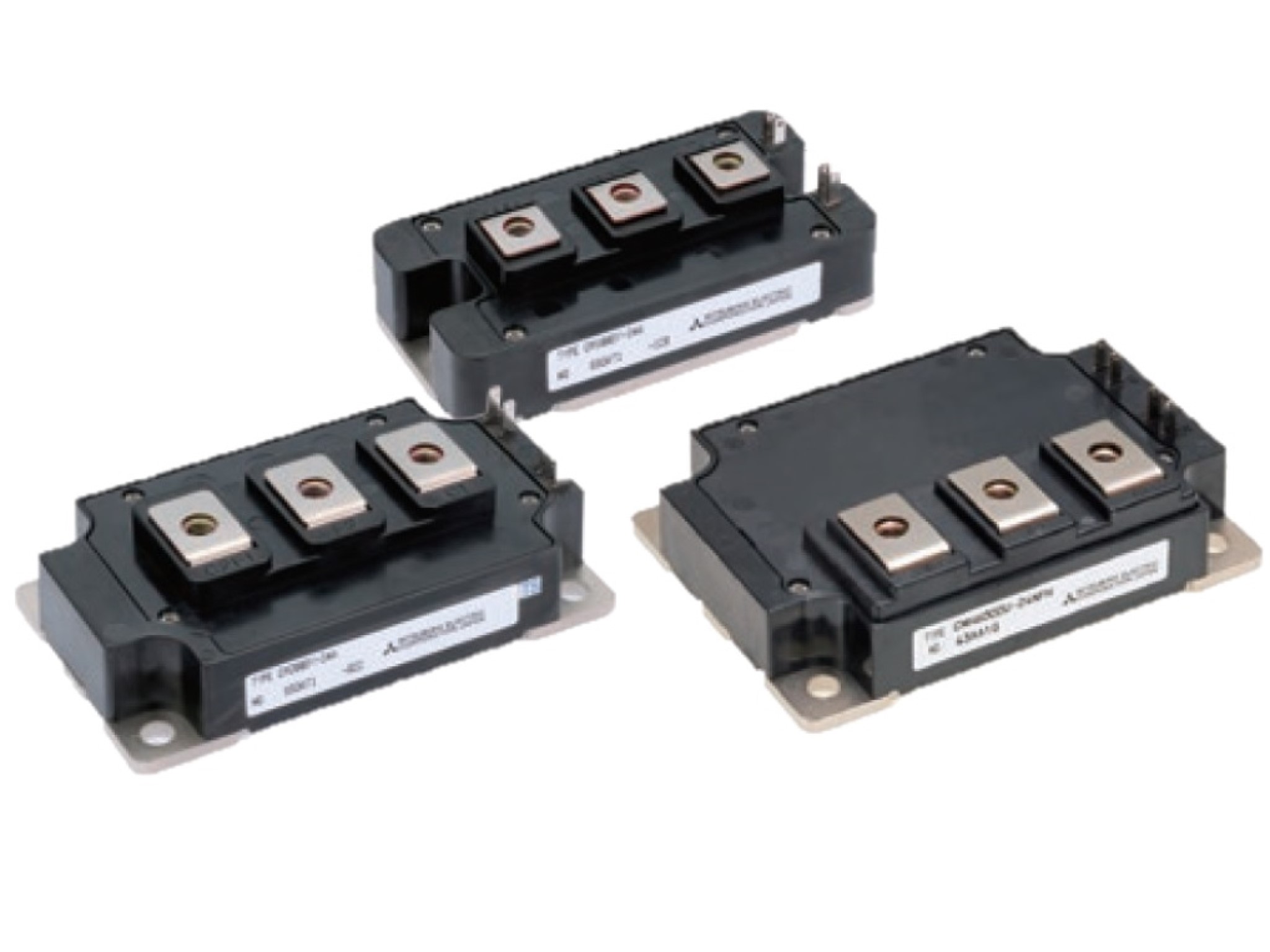

Module equipped with a high-speed IGBT
We focused on switching frequency which is a particular distinguishing factor in the operating conditions of a variety of power electric device applications. In regards to high-speed IGBT modules, by fine-tuning the trade-off of IGBT chips, it is possible to achieve low loss under high-speed switching conditions. By using an IGBT module suitable for the operating conditions, the effects of the equipment can be fully drawn upon while simultaneously achieving energy-saving.
Features
- Equipped with a chip optimized for high-frequency applications, fc target 20 to 60 kHz
- High-speed specifications mean approx. 30% less power loss upon high-frequency switching compared to general specifications*1
- ※1：Comparison of general specification 7th generation T series and high-speed specification 7th generation TH series
Applications
- Power supply for medical applications
- Welder

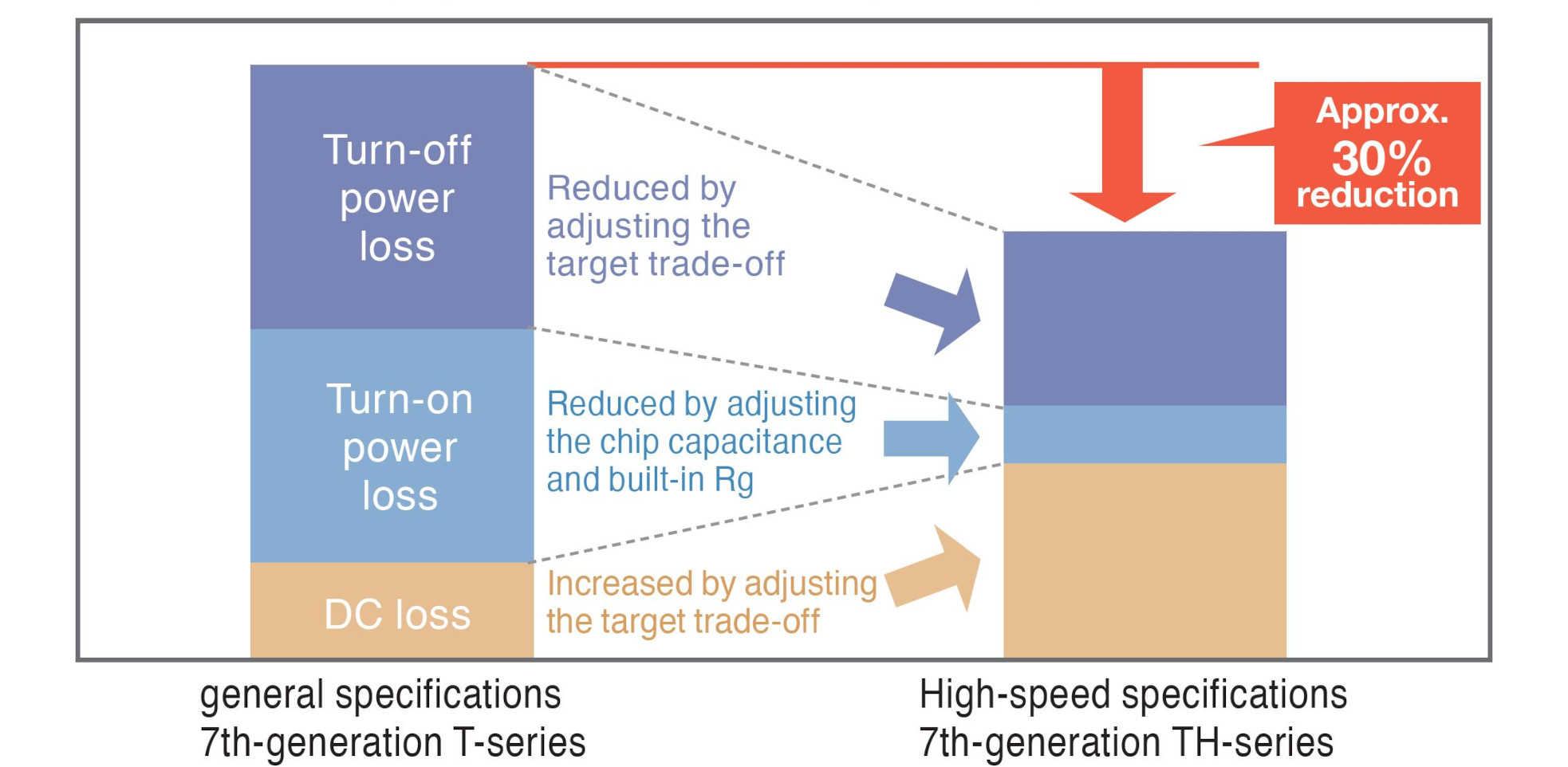

Power loss comparison — Example of TH series IGBT characteristics (fc = 30 kHz)
Lineup
NFH series (600V)

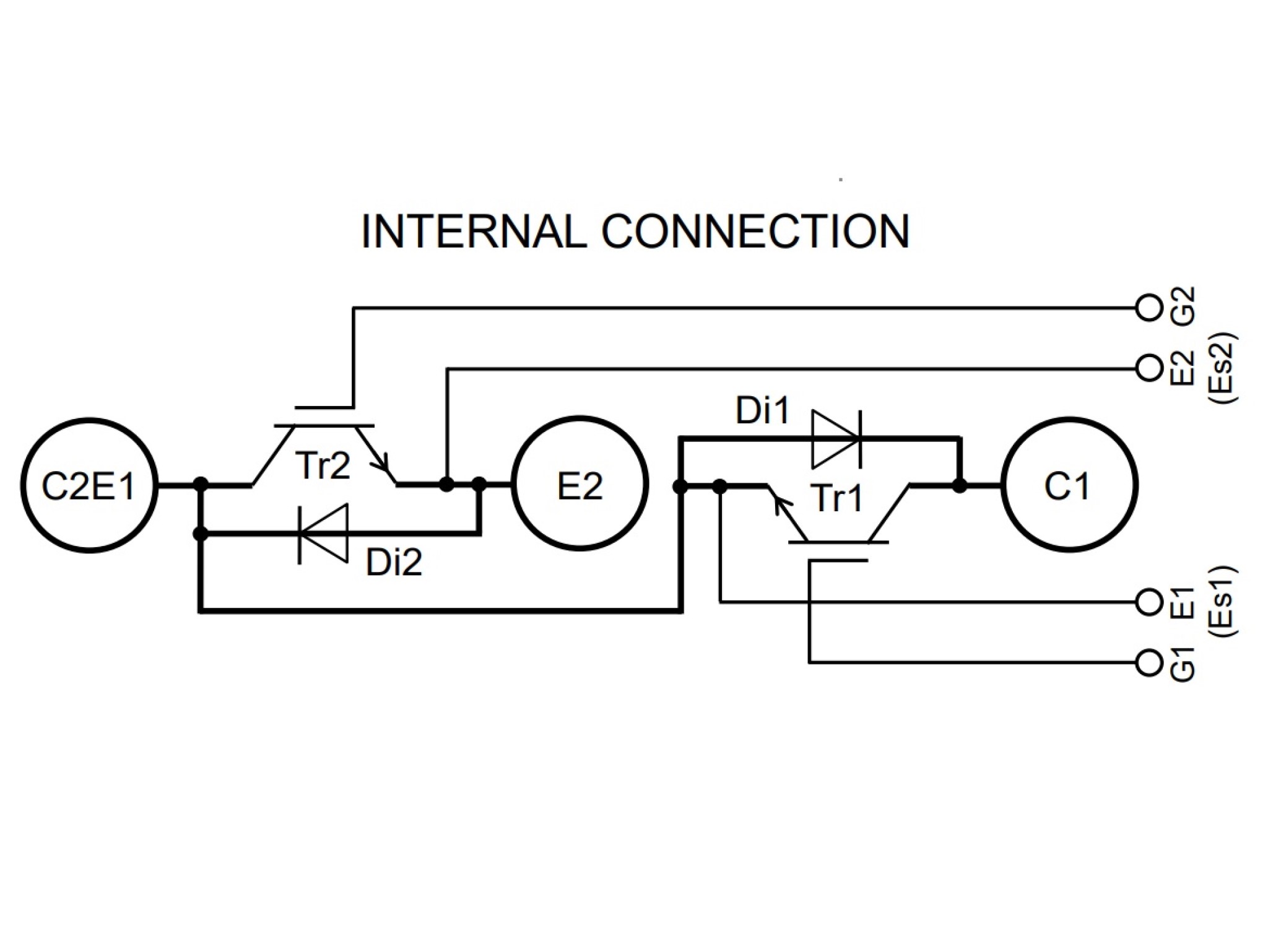

| IC (A) | Connection | Type name | Dimension | Package |
|---|---|---|---|---|

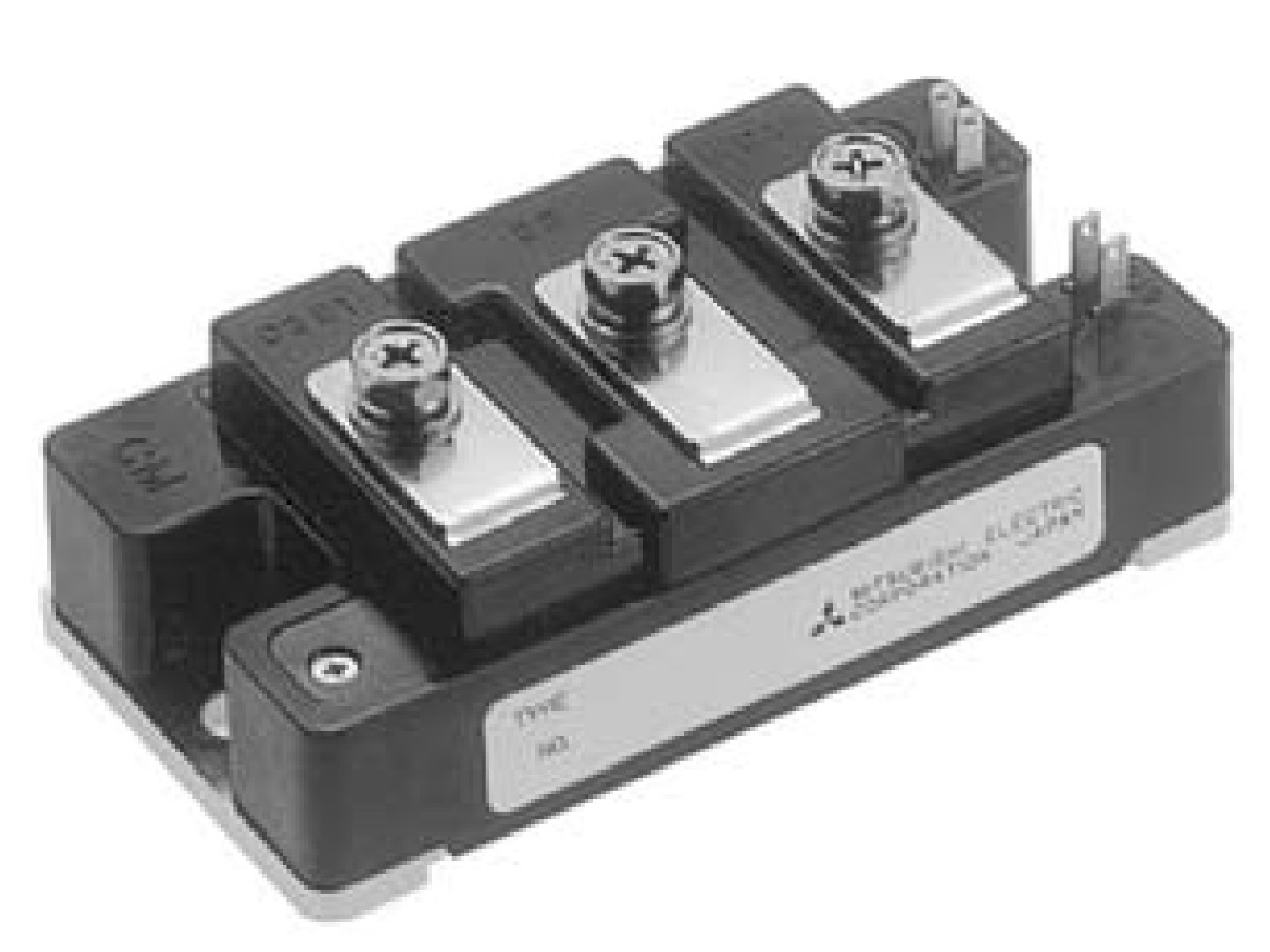

| 200 | 94 × 48 mm |  | ||

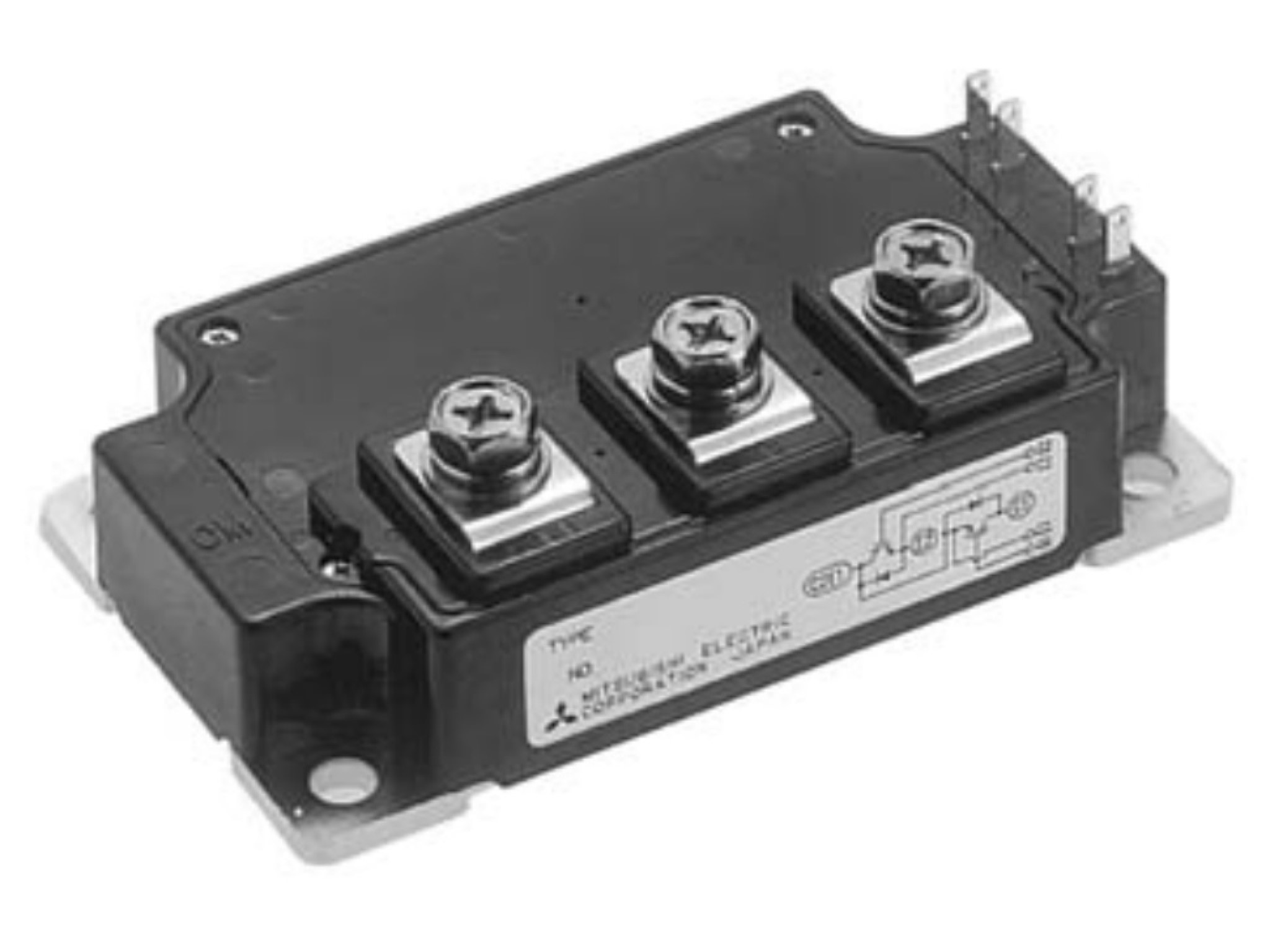

| 300 | 108 × 62 mm |  | ||
| 400 | 108 × 62 mm | | ||

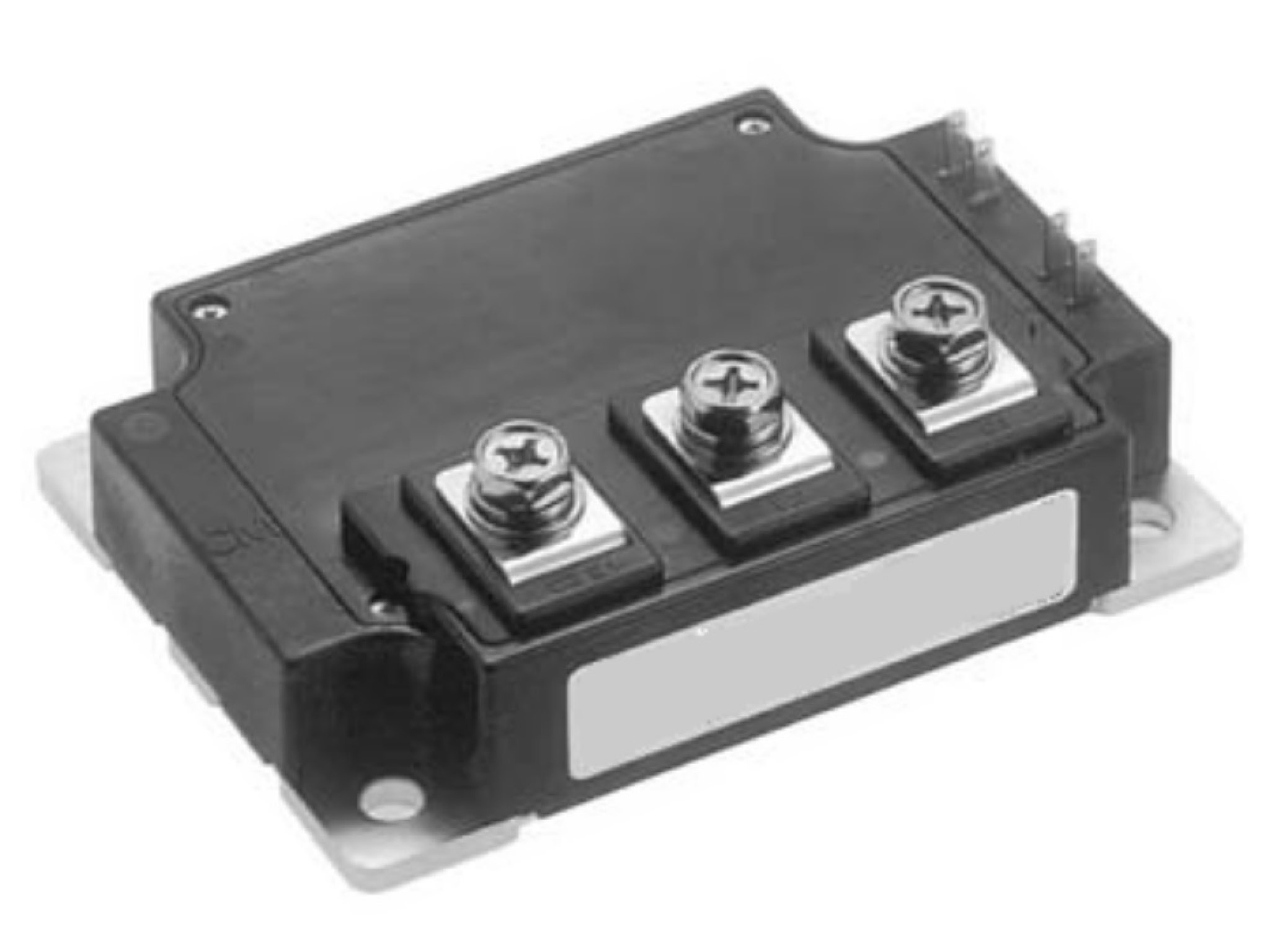

| 600 | 110 × 80 mm |  |
TH series (1200V)
| IC (A) | Connection | Type name | Dimension | Package |
|---|---|---|---|---|

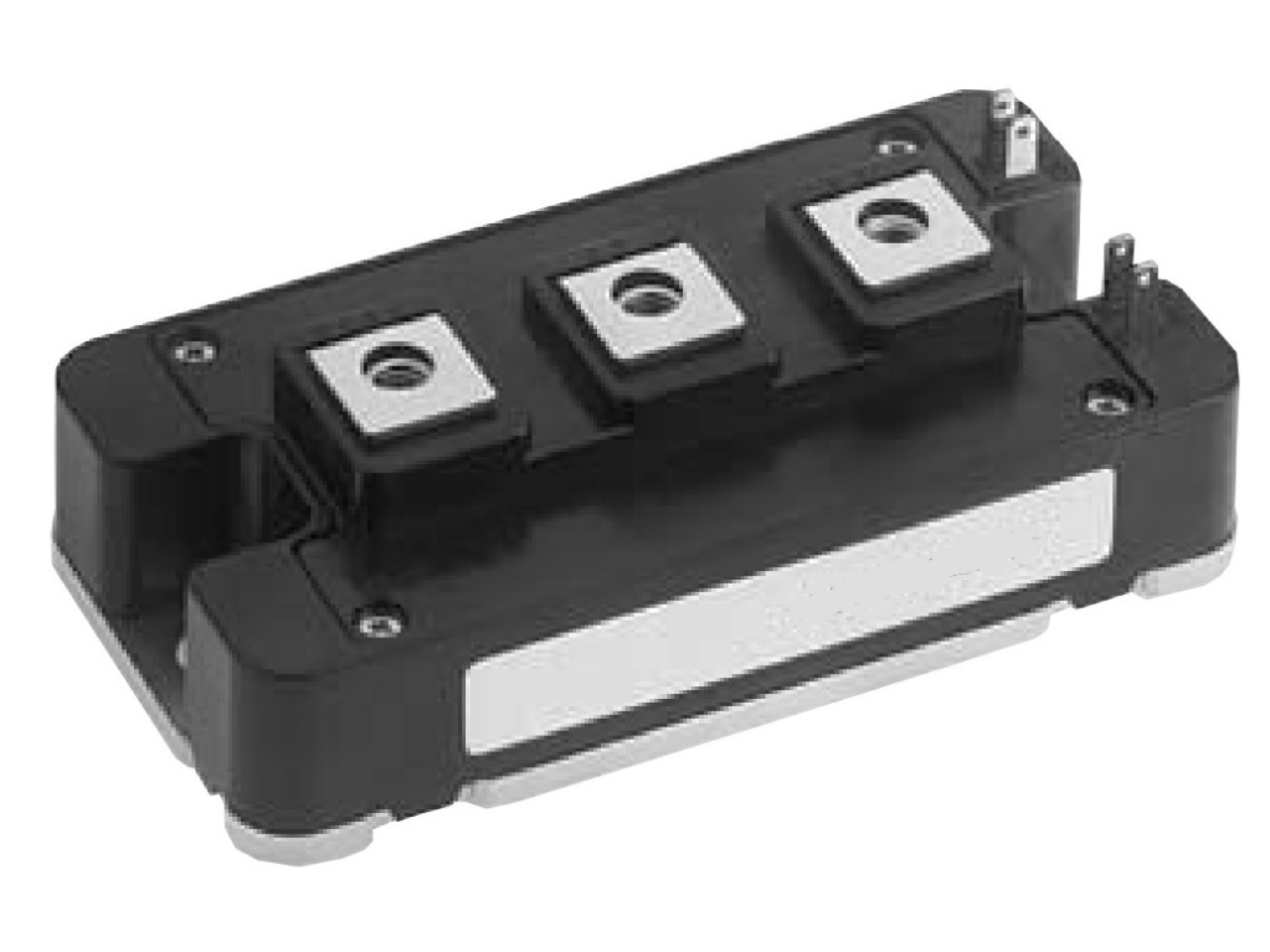

| 200 | 94 × 48 mm |  | ||

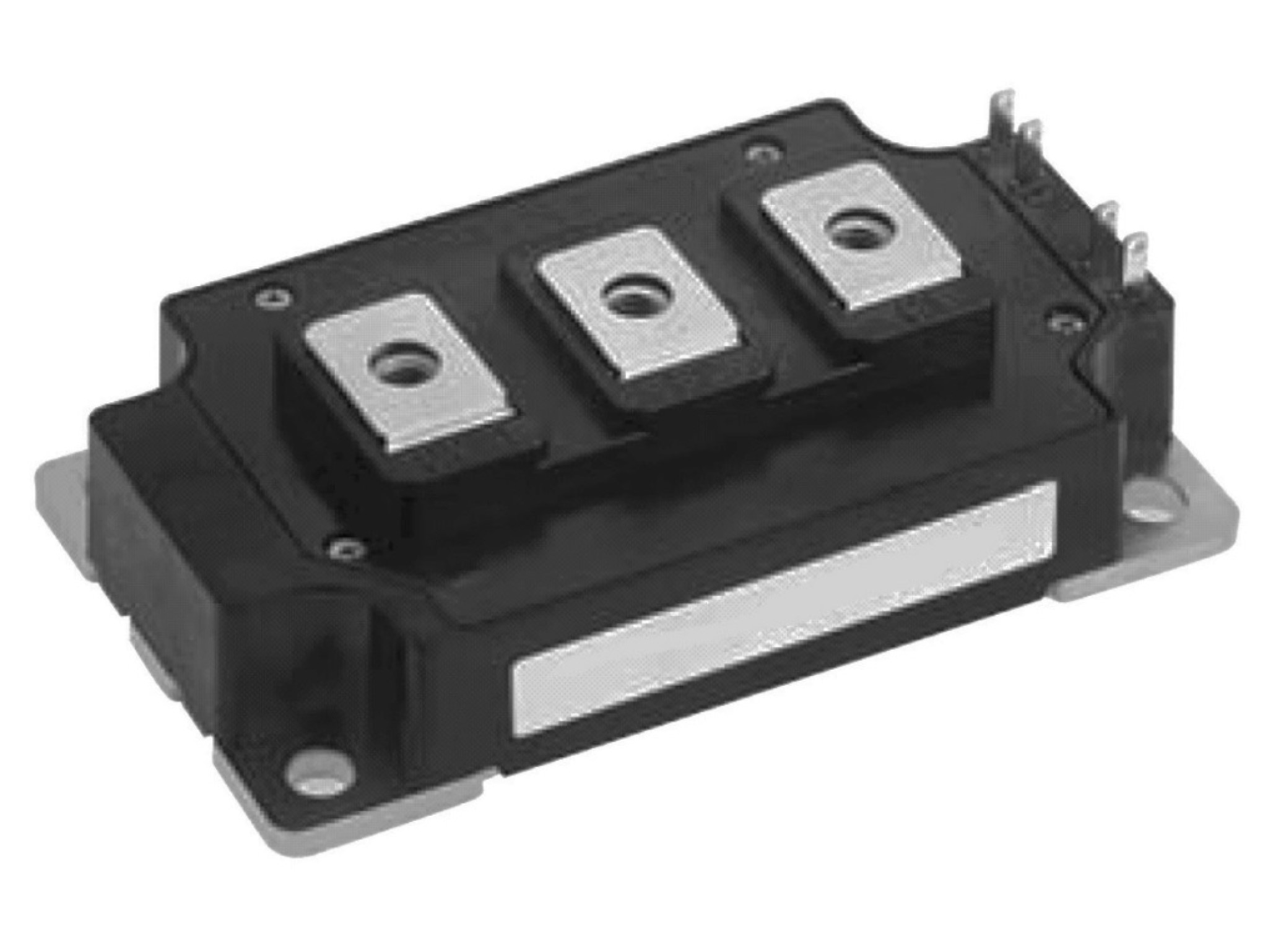

| 400 | 108 × 62 mm |  | ||
110 × 80 mm |  | |||
| 600 | 110 × 80 mm | |
