PSF25S92F6
VDSS: 600 V, ±ID: 25 A
SiC MOSFETs integrated in Super mini DIPIPM which can easily improve energy efficiency
Features

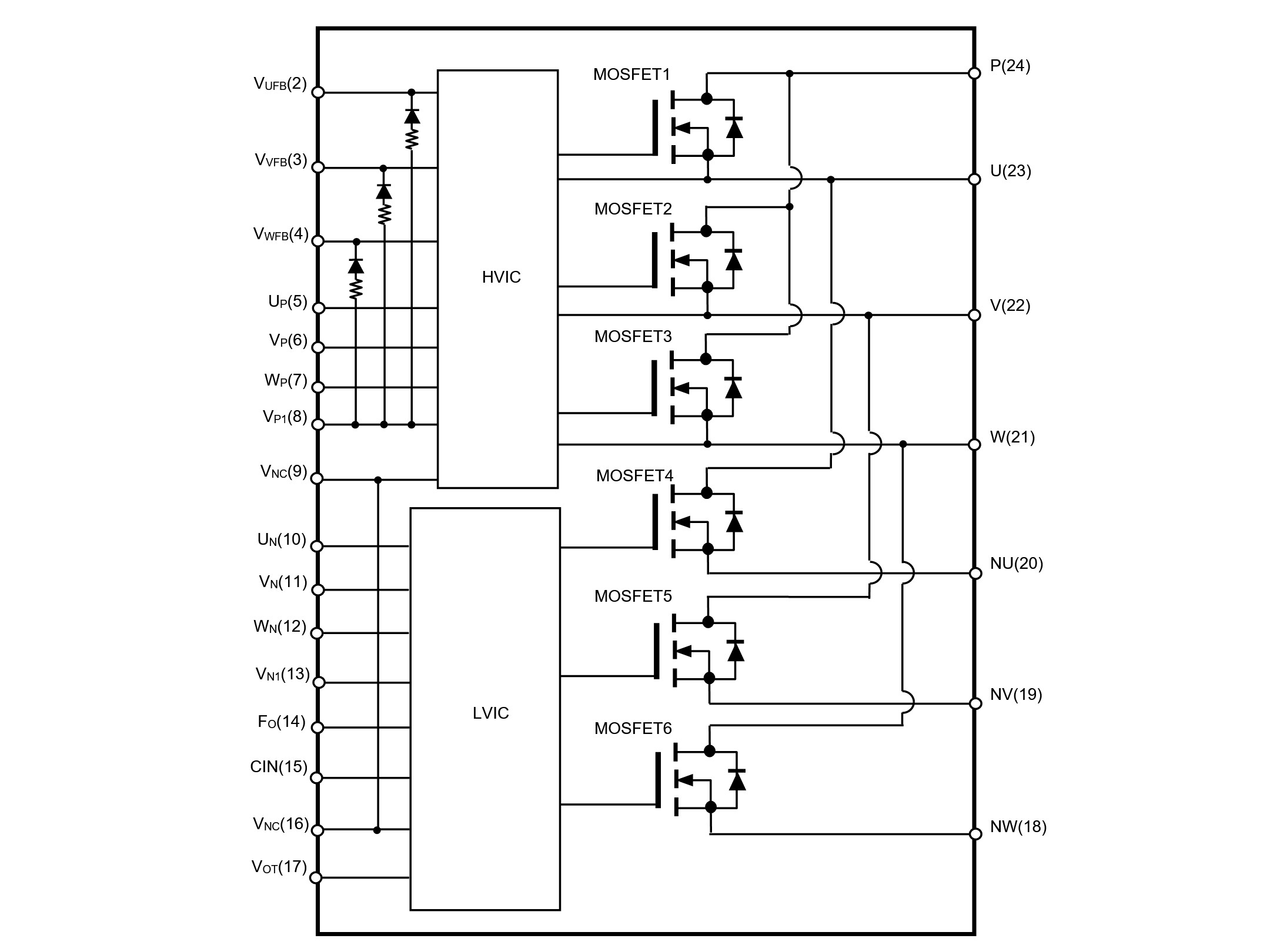

- For P-side : Drive circuit, High voltage high-speed level shifting, Control supply under-voltage (UV) protection
- For N-side : Drive circuit, Control supply under-voltage protection (UV), Short circuit protection (SC) by detecting voltage of external shunt resistor
- Fault signaling : Corresponding to SC fault (N-side MOSFET) and UV fault (N-side supply)
- Temperature monitering : Outputting LVIC temperature by analog signal (No self over temperature protection)
- Input interface : 3, 5V line, Schmitt trigger receiver circuit (High Active)
- DIPIPM, SLIMDIP, DIPIPM+, SOPIPM, DIPPFC and CSTBT are trademarks of MITSUBISHI ELECTRIC CORPORATION.
Applications
- Air conditioner
- Cloth washer
- Refrigerator
- Dish washer
- Fan
- Pump
Specifications
| Parameters | Value | Unit |
|---|---|---|
| VDSS | 600 | V |
| ±ID | 25 | A |
| Isolation voltage | 1500 | Vrms |
| Tch | 150 | ℃ |
| Connection | Three phase inverter with driver ICs | |
| Package type | Super mini | |
| Supply situation | In production | |
| UL Recognition : UL1557 | File E323585 |
Documents
Corresponding Products
Full SiC Duper Mini DIPIPM
VDSS=600V, ID=15A～25A

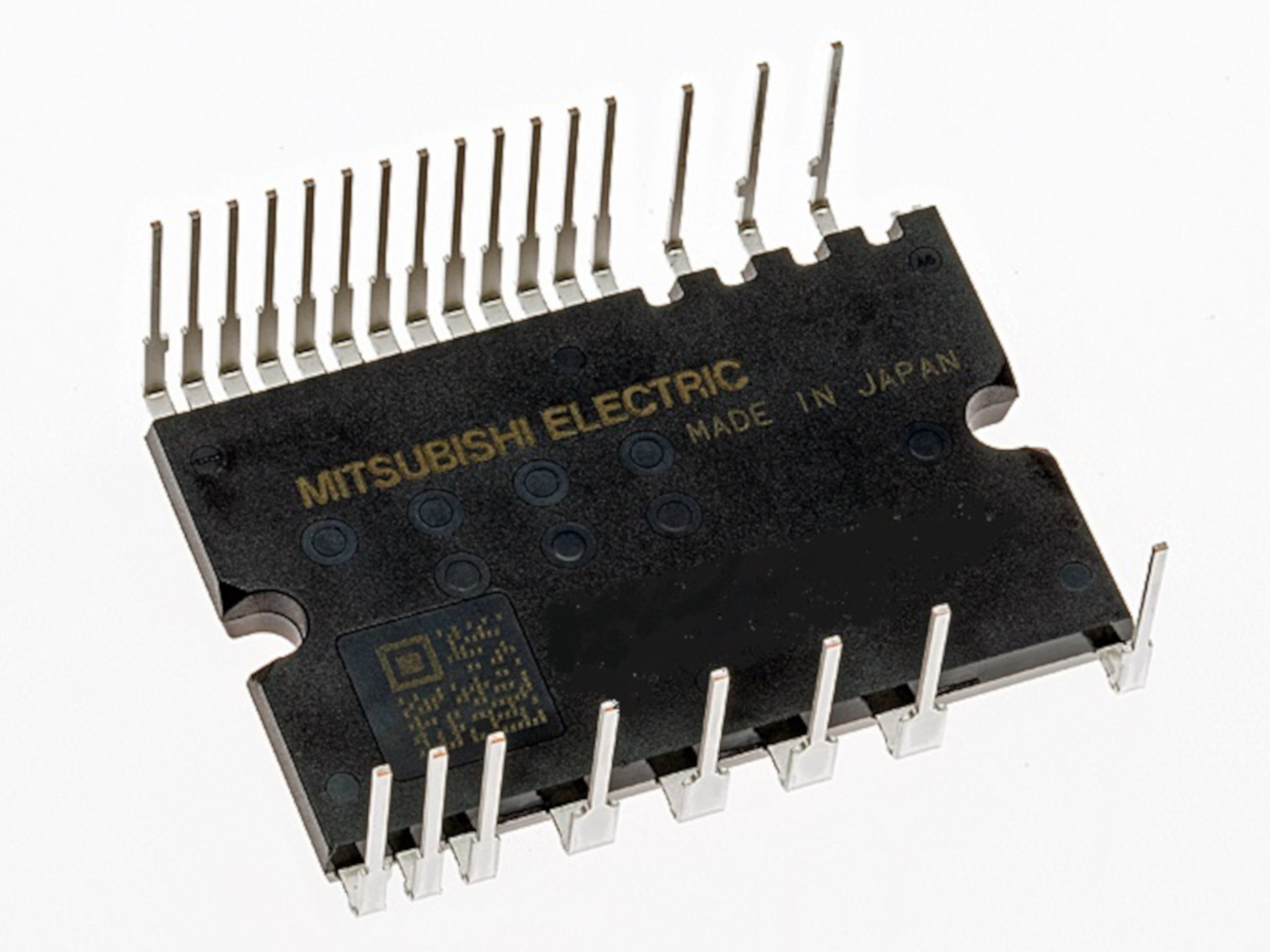

Super Mini DIPIPM
Small-capacity de facto standard packageVCES=600V, IC=5A～40A
SLIMDIP
Minimal package for insertion typeVCES=600V, IC=5A～30A

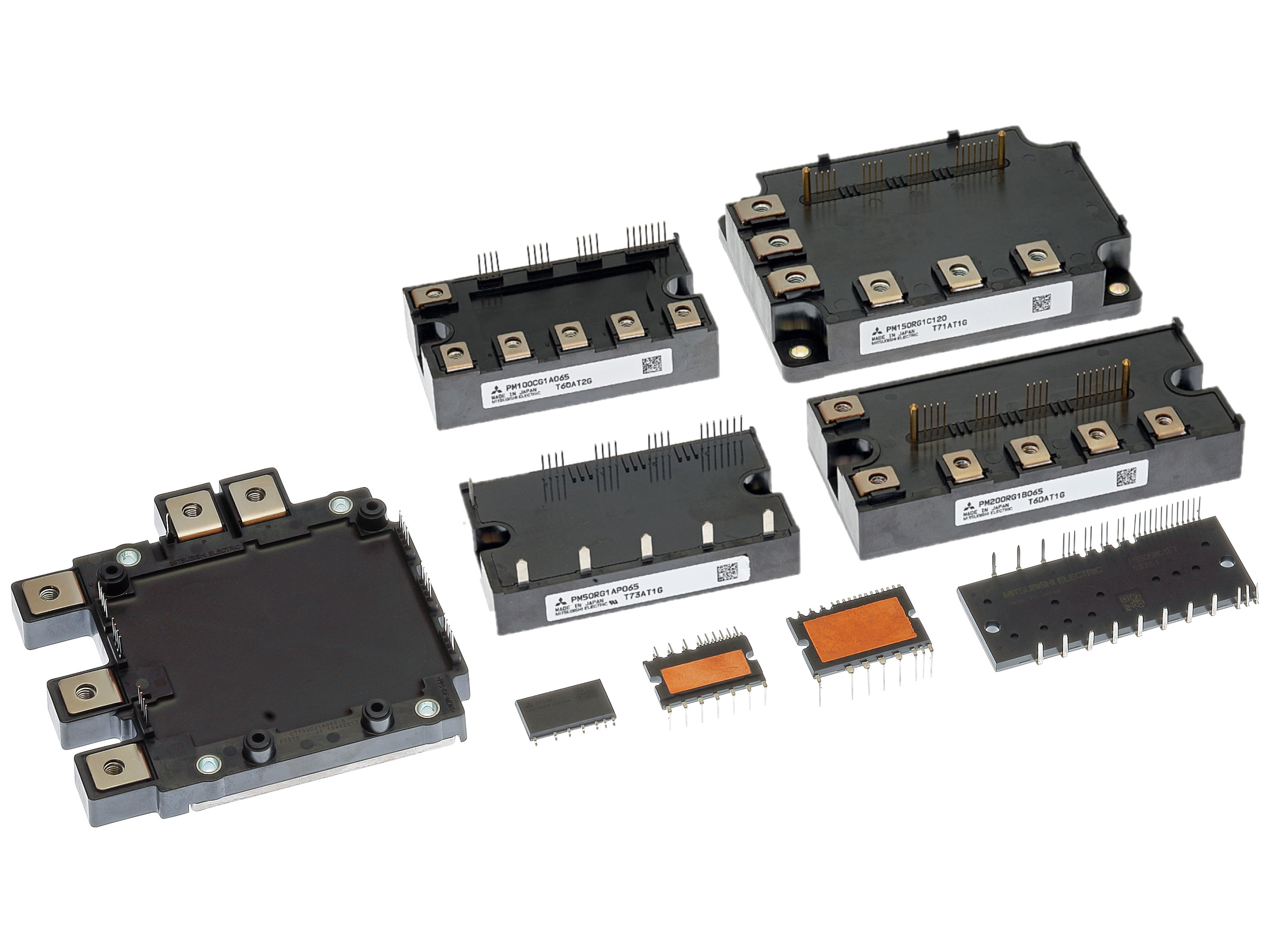

IPM/DIPIPM
