SiC Power Device
Full-SiC Power Module
VDSS=1200V～1700V
ID=300A～1200A
Hybrid-SiC Power Module
VDSS=1200V
ID=100A～600A
HV SiC Moduel
VDSS=1700V～3300V
ID=185A～1200A
Full SiC-IPM
VDSS=1200V
ID=75A
SiC DIPIPM
VDSS=600V
ID=15A～25A
SiC DIPPFC
VDSS=600V
ID=30A
针对SiC采取的举措
积极投入资源
适用于各种用途
Mitsubishi Electric began developing SiC as a new material in the early 1990s. Pursuing special characteristics, we succeeded in developing various elemental technologies. In 2010, we commercialized the first air conditioner in the world equipped with a SiC power device. Furthermore, substantial energy-saving effects have been achieved for traction and FA machinery. We will continue to provide competitive SiC power modules with advanced development and achievements from now on.
三菱电机SiC的优势
系列
Full-SiC Power Module
| Rated voltage(V) | Rated current(A) | Circuit configulation | Model | Package size(mm) | Picture |
|---|---|---|---|---|---|
| 1200 | 400 | 92.3 × 121.7 |  | ||
80 × 110 |  | ||||
62 × 108 |  | ||||
| 600 | 62 × 121.7 |  | |||
| 800 | 92.3 × 121.7 | | |||
| 1700 | 600 | 62 × 121.7 | |
Built-in short circuit limit circuit Full-SiC Power Module
| Rated voltage(V) | Rated current(A) | Circuit configulation | Model | Package size(mm) | Picture |
|---|---|---|---|---|---|
| 1200 | 300 | 79.1 × 122 |  | ||
| 400 | |||||
| 600 | 79.6 × 122 |  | |||
| 800 | |||||
| 1200 | 152 × 122 |  | |||
| 1700 | 300 | 79.6 × 122 | | ||
Hybrid-SiC Power Module
| Rated voltage(V) | Rated current(A) | Circuit configulation | Model | Package size(mm) | Picture |
|---|---|---|---|---|---|
| 1200 | 100 | 48 × 94 |  | ||
| 150 | |||||
| 200 | 62 × 108 |  | |||
| 300 | |||||
| 400 | 80 × 110 | | |||
| 600 | |||||
| 400 | 62 × 108 |  |
Full SiC-IPM
| Rated voltage(V) | Rated current(A) | Circuit configulation | Model | Package size(mm) | Picture |
|---|---|---|---|---|---|
| 1200 | 75 | 50 × 90 | | ||
HV Full-SiC Power Module
| Rated voltage(V) | Rated current(A) | Circuit configulation | Model | Package size(mm) | Picture |
|---|---|---|---|---|---|
| 3300 | 185 | 100 × 140 |  | ||
| 375 | |||||
| 750 | |||||
HV Hybrid-SiC Power Module
| Rated voltage(V) | Rated current(A) | Circuit configulation | Model | Package size(mm) | Picture |
|---|---|---|---|---|---|
| 3300 | 600 | 100 × 140 | | ||
| 1700 | 1200 | 130 × 140 |  |

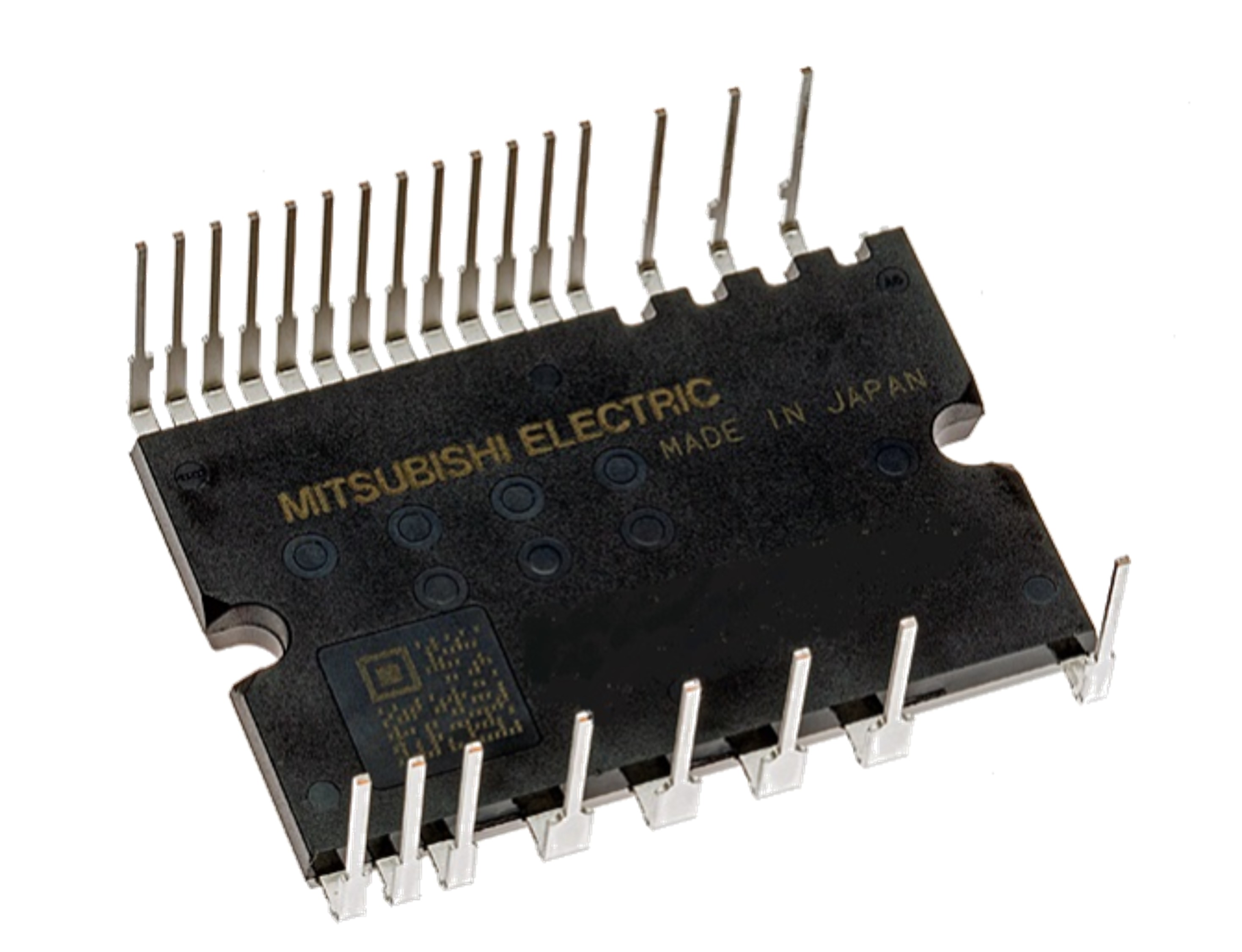

SiC DIPIPM
| Rated voltage(V) | Rated current(A) | Circuit configulation | Model | Package size(mm) | Picture |
|---|---|---|---|---|---|
| 600 | 15 | 38 × 24 | | ||
| 25 |
SiC DIPPFC
| Rated voltage(V) | Input current(Arms) | Circuit configulation | Model | Package size(mm) | Picture |
|---|---|---|---|---|---|
| 600 | 30 |
| 38 × 24 | |
