Single phase Motor

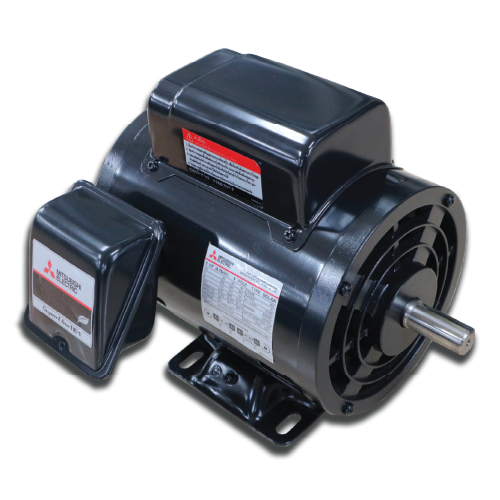

Capacitor Start and Run (IP 22)
PHASE: 1
TYPE: CAPACITOR START AND RUN
MODEL NAME: SCL-QR
RATED OUTPUT, HP (kW): 1 (0.75)
POLE: 4
CODE: MEATH CODE : 1M001D-400075QRES2
OUTLINE DRAWING NO.: ONM940529-*
RATED VOLTAGE (V): 220 | 230 | 220
RATED FREQUENCY (Hz): 50 | 50 | 60
RATED CURRENT (A): 5.3 | 5.5 | 4.5
RATED SPEED (min⁻¹): 1445 | 1450 | 1740
RATED EFFICIENCY (%): 72.1 | 72.1 | 77.0
EFFICIENCY CLASS: IE1
THERMAL CLASS: 130(B)
RATING: S1 (CONTINUOUS)
ENCLOSURE CONSTRUCTION: DRIP-PROOF
DEGREES OF PROTECTION: IP22
METHOD OF COOLING: IC01
FRAME NO.: 90S
WEIGHT (kg): 14
STANDARD: JEC-2137-2000
EFFICIENCY RULE: IEC 60034-30-1
INSTALLATION: FOOT MOUNTED
ROTATION: CCW (VIEWED FROM SHAFT END)
BEARING:
- LOAD SIDE : 6204ZZ
- OPPOSITE SIDE : 6202ZZ
BEARING GREASE: UREA GREASE
VIBRATION: V20
CIRCUMSTANCE:
- AMBIENT TEMPERATURE : -20 ~ +40°C
- AMBIENT HUMIDITY : 85%RH OR LESS
- ABOVE SEA LEVEL : 1000m OR LESS
- ENVIRONMENT : NO BURSTING/EROSIVE GAS OR VAPOR
COLOR: MUNSELL N1.5 (BLACK)
TERMINAL BOX:
- NO. OF LEAD WIRES : 4
- SOURCE CONNECTION : LEAD WIRES
SHAFT SWING: ≤0.03mm
MATERIAL:
- FRAME : STEEL PLATE
- BRACKET : ALUMINIUM
- SHAFT : CARBON STEEL
- STATOR CORE : ELECTRICAL STEEL
- WIRE : ENAMELLED COPPER MAGNET WIRE
- ROTOR CORE : ELECTRICAL STEEL
- CONDUCTOR : ALUMINIUM
- TERMINAL BOX : STEEL PLATE
- PAINTING : ALKYD-NITROCELLULOSE RESIN
PRODUCTION COUNTRY: THAILAND
PHASE: 1
TYPE: CAPACITOR START AND RUN
MODEL NAME: SCL-QR
RATED OUTPUT, HP (kW): 1.5 (1.1)
POLE: 4
CODE: MEATH CODE : 1M001D-400120QRES1
OUTLINE DRAWING NO.: ONM940530-*
RATED VOLTAGE (V): 220 | 230 | 220
RATED FREQUENCY (Hz): 50 | 50 | 60
RATED CURRENT (A): 7.8 | 8.1 | 6.6
RATED SPEED (min⁻¹): 1445 | 1450 | 1745
RATED EFFICIENCY (%): 75.0 | 75.0 | 79.0
EFFICIENCY CLASS: IE1
THERMAL CLASS: 130(B)
RATING: S1 (CONTINUOUS)
ENCLOSURE CONSTRUCTION: DRIP-PROOF
DEGREES OF PROTECTION: IP22
METHOD OF COOLING: IC01
FRAME NO.: 90L
WEIGHT (kg): 17.5
STANDARD: JEC-2137-2000
EFFICIENCY RULE: IEC 60034-30-1
INSTALLATION: FOOT MOUNTED
ROTATION: CCW (VIEWED FROM SHAFT END)
BEARING:
- LOAD SIDE : 6205ZZ
- OPPOSITE SIDE : 6203ZZ
BEARING GREASE: UREA GREASE
VIBRATION: V20
CIRCUMSTANCE:
- AMBIENT TEMPERATURE : -20 ~ +40°C
- AMBIENT HUMIDITY : 85%RH OR LESS
- ABOVE SEA LEVEL : 1000m OR LESS
- ENVIRONMENT : NO BURSTING/EROSIVE GAS OR VAPOR
COLOR: MUNSELL N1.5 (BLACK)
TERMINAL BOX:
- NO. OF LEAD WIRES : 4
- SOURCE CONNECTION : LEAD WIRES
SHAFT SWING: ≤0.03mm
MATERIAL:
- FRAME : STEEL PLATE
- BRACKET : ALUMINIUM
- SHAFT : CARBON STEEL
- STATOR CORE : ELECTRICAL STEEL
- WIRE : ENAMELLED COPPER MAGNET WIRE
- ROTOR CORE : ELECTRICAL STEEL
- CONDUCTOR : ALUMINIUM
- TERMINAL BOX : STEEL PLATE
- PAINTING : ALKYD-NITROCELLULOSE RESIN
PRODUCTION COUNTRY: THAILAND
.png)
PHASE: 1
TYPE: CAPACITOR START AND RUN
MODEL NAME: SCL-QR
RATED OUTPUT, HP (kW): 2 (1.5)
POLE: 4
CODE: MEATH CODE : 1M001D-400150QRES2
OUTLINE DRAWING NO.: ONM040531-*
RATED VOLTAGE (V): 220 | 230 | 220
RATED FREQUENCY (Hz): 50 | 50 | 60
RATED CURRENT (A): 10.3 | 10.4 | 8.8
RATED SPEED (min⁻¹): 1450 | 1450 | 1750
RATED EFFICIENCY (%): 77.2 | 77.2 | 81.5
EFFICIENCY CLASS: IE1
THERMAL CLASS: 130(B)
RATING: S1 (CONTINUOUS)
ENCLOSURE CONSTRUCTION: DRIP-PROOF
DEGREES OF PROTECTION: IP22
METHOD OF COOLING: IC01
FRAME NO.: 100L
WEIGHT (kg): 23.4
STANDARD: JEC-2137-2000
EFFICIENCY RULE: IEC 60034-30-1
INSTALLATION: FOOT MOUNTED
ROTATION: CCW (VIEWED FROM SHAFT END)
BEARING:
- LOAD SIDE : 6206ZZ
- OPPOSITE SIDE : 6205ZZ
BEARING GREASE: UREA GREASE
VIBRATION: V20
CIRCUMSTANCE:
- AMBIENT TEMPERATURE : -20 ~ +40°C
- AMBIENT HUMIDITY : 85%RH OR LESS
- ABOVE SEA LEVEL : 1000m OR LESS
- ENVIRONMENT : NO BURSTING/EROSIVE GAS OR VAPOR
COLOR: MUNSELL N1.5 (BLACK)
TERMINAL BOX:
- NO. OF LEAD WIRES : 4
- SOURCE CONNECTION : LEAD WIRES
SHAFT SWING: ≤0.03mm
MATERIAL:
- FRAME : STEEL PLATE
- BRACKET : ALUMINIUM
- SHAFT : CARBON STEEL
- STATOR CORE : ELECTRICAL STEEL
- WIRE : ENAMELLED COPPER MAGNET WIRE
- ROTOR CORE : ELECTRICAL STEEL
- CONDUCTOR : ALUMINIUM
- TERMINAL BOX : STEEL PLATE
- PAINTING : POLYURETHANE RESIN
PRODUCTION COUNTRY: THAILAND
.png)
PHASE: 1
TYPE: CAPACITOR START AND RUN
MODEL NAME: SCL-QR
RATED OUTPUT, HP (kW): 3 (2.2)
POLE: 4
CODE: MEATH CODE : 1M001D-400220QRES1
OUTLINE DRAWING NO.: ONM040532-*
RATED VOLTAGE (V): 220 | 230 | 220
RATED FREQUENCY (Hz): 50 | 50 | 60
RATED CURRENT (A): 15.8 | 15.8 | 13.6
RATED SPEED (min⁻¹): 1440 | 1445 | 1730
RATED EFFICIENCY (%): 79.7 | 79.7 | 83.0
EFFICIENCY CLASS: IE1
THERMAL CLASS: 130(B)
RATING: S1 (CONTINUOUS)
ENCLOSURE CONSTRUCTION: DRIP-PROOF
DEGREES OF PROTECTION: IP22
METHOD OF COOLING: IC01
FRAME NO.: 112M
WEIGHT (kg): 32.8
STANDARD: JEC-2137-2000
EFFICIENCY RULE: IEC 60034-30-1
INSTALLATION: FOOT MOUNTED
ROTATION: CCW (VIEWED FROM SHAFT END)
BEARING:
- LOAD SIDE : 6207ZZ
- OPPOSITE SIDE : 6206ZZ
BEARING GREASE: UREA GREASE
VIBRATION: V20
CIRCUMSTANCE:
- AMBIENT TEMPERATURE : -20 ~ +40°C
- AMBIENT HUMIDITY : 85%RH OR LESS
- ABOVE SEA LEVEL : 1000m OR LESS
- ENVIRONMENT : NO BURSTING/EROSIVE GAS OR VAPOR
COLOR: MUNSELL N1.5 (BLACK)
TERMINAL BOX:
- NO. OF LEAD WIRES : 4
- SOURCE CONNECTION : LEAD WIRES
SHAFT SWING: ≤0.03mm
MATERIAL:
- FRAME : STEEL PLATE
- BRACKET : ALUMINIUM
- SHAFT : CARBON STEEL
- STATOR CORE : ELECTRICAL STEEL
- WIRE : ENAMELLED COPPER MAGNET WIRE
- ROTOR CORE : ELECTRICAL STEEL
- CONDUCTOR : ALUMINIUM
- TERMINAL BOX : STEEL PLATE
- PAINTING : POLYURETHANE RESIN
PRODUCTION COUNTRY: THAILAND
PHASE: 1
TYPE: CAPACITOR START AND RUN
MODEL NAME: SCL-QR
RATED OUTPUT, HP (kW): 5 (3.7)
POLE: 4
CODE: MEATH CODE : 1M001D-400370QRES1
OUTLINE DRAWING NO.: ONM040533-*
RATED VOLTAGE (V): 220 | 230 | 220
RATED FREQUENCY (Hz): 50 | 50 | 60
RATED CURRENT (A): 22.4 | 22.1 | 22.1
RATED SPEED (min⁻¹): 1450 | 1460 | 1740
THERMAL CLASS: 155(F)
RATING: S1 (CONTINUOUS)
ENCLOSURE CONSTRUCTION: DRIP-PROOF
DEGREES OF PROTECTION: IP22
METHOD OF COOLING: IC01
FRAME NO.: 132S
WEIGHT (kg): 42.8
STANDARD: JEC-2137-2000
INSTALLATION: FOOT MOUNTED
ROTATION: CCW (VIEWED FROM SHAFT END)
BEARING:
- LOAD SIDE : 6308ZZ
- OPPOSITE SIDE : 6207ZZ
BEARING GREASE: UREA GREASE
VIBRATION: V20
CIRCUMSTANCE:
- AMBIENT TEMPERATURE : -20 ~ +40°C
- AMBIENT HUMIDITY : 85%RH OR LESS
- ABOVE SEA LEVEL : 1000m OR LESS
- ENVIRONMENT : NO BURSTING/EROSIVE GAS OR VAPOR
COLOR: MUNSELL N1.5 (BLACK)
TERMINAL BOX:
- NO. OF LEAD WIRES : 4
- SOURCE CONNECTION : LEAD WIRES
SHAFT SWING: ≤0.03mm
MATERIAL:
- FRAME : STEEL PLATE
- BRACKET : ALUMINIUM
- SHAFT : CARBON STEEL
- STATOR CORE : ELECTRICAL STEEL
- WIRE : ENAMELLED COPPER MAGNET WIRE
- ROTOR CORE : ELECTRICAL STEEL
- CONDUCTOR : ALUMINIUM
- TERMINAL BOX : STEEL PLATE
- PAINTING : POLYURETHANE RESIN
PRODUCTION COUNTRY: THAILAND
PHASE: 1
TYPE: CAPACITOR START AND RUN
MODEL NAME: SCL-QR
RATED OUTPUT, HP (kW): 7.5 (5.5)
POLE: 4
CODE: MEATH CODE : 1M001D-400550QRES1
OUTLINE DRAWING NO.: ONM040534-*
RATED VOLTAGE (V): 220 | 230 | 220
RATED FREQUENCY (Hz): 50 | 50 | 60
RATED CURRENT (A): 32.1 | 30.8 | 31.4
RATED SPEED (min⁻¹): 1450 | 1450 | 1740
THERMAL CLASS: 155(F)
RATING: S1 (CONTINUOUS)
ENCLOSURE CONSTRUCTION: DRIP-PROOF
DEGREES OF PROTECTION: IP22
METHOD OF COOLING: IC01
FRAME NO.: 132M
WEIGHT (kg): 58.0
STANDARD: JEC-2137-2000
INSTALLATION: FOOT MOUNTED
ROTATION: CCW (VIEWED FROM SHAFT END)
BEARING:
- LOAD SIDE : 6308ZZ
- OPPOSITE SIDE : 6207ZZ
BEARING GREASE: UREA GREASE
VIBRATION: V20
CIRCUMSTANCE:
- AMBIENT TEMPERATURE : -20 ~ +40°C
- AMBIENT HUMIDITY : 85%RH OR LESS
- ABOVE SEA LEVEL : 1000m OR LESS
- ENVIRONMENT : NO BURSTING/EROSIVE GAS OR VAPOR
COLOR: MUNSELL N1.5 (BLACK)
TERMINAL BOX:
- NO. OF LEAD WIRES : 4
- SOURCE CONNECTION : LEAD WIRES
SHAFT SWING: ≤0.03mm
MATERIAL:
- FRAME : STEEL PLATE
- BRACKET : ALUMINIUM
- SHAFT : CARBON STEEL
- STATOR CORE : ELECTRICAL STEEL
- WIRE : ENAMELLED COPPER MAGNET WIRE
- ROTOR CORE : ELECTRICAL STEEL
- CONDUCTOR : ALUMINIUM
- TERMINAL BOX : STEEL PLATE
- PAINTING : POLYURETHANE RESIN
PRODUCTION COUNTRY: THAILAND
PHASE: 1
TYPE: CAPACITOR START AND RUN
MODEL NAME: SCL-QR
RATED OUTPUT, HP (kW): 10 (7.5)
POLE: 4
CODE: MEATH CODE : 1M001D-400750QRES1
OUTLINE DRAWING NO.: ONM040535-*
RATED VOLTAGE (V): 220 | 230 | 220
RATED FREQUENCY (Hz): 50 | 50 | 60
RATED CURRENT (A): 44.7 | 43.0 | 43.7
RATED SPEED (min⁻¹): 1440 | 1445 | 1725
THERMAL CLASS: 155(F)
RATING: S1 (CONTINUOUS)
ENCLOSURE CONSTRUCTION: DRIP-PROOF
DEGREES OF PROTECTION: IP22
METHOD OF COOLING: IC01
FRAME NO.: 132ML
WEIGHT (kg): 66.4
STANDARD: JEC-2137-2000
INSTALLATION: FOOT MOUNTED
ROTATION: CCW (VIEWED FROM SHAFT END)
BEARING:
- LOAD SIDE : 6308ZZ
- OPPOSITE SIDE : 6207ZZ
BEARING GREASE: UREA GREASE
VIBRATION: V20
CIRCUMSTANCE:
- AMBIENT TEMPERATURE : -20 ~ +40°C
- AMBIENT HUMIDITY : 85%RH OR LESS
- ABOVE SEA LEVEL : 1000m OR LESS
- ENVIRONMENT : NO BURSTING/EROSIVE GAS OR VAPOR
COLOR: MUNSELL N1.5 (BLACK)
TERMINAL BOX:
- NO. OF LEAD WIRES : 4
- SOURCE CONNECTION : LEAD WIRES
SHAFT SWING: ≤0.03mm
MATERIAL:
- FRAME : STEEL PLATE
- BRACKET : ALUMINIUM
- SHAFT : CARBON STEEL
- STATOR CORE : ELECTRICAL STEEL
- WIRE : ENAMELLED COPPER MAGNET WIRE
- ROTOR CORE : ELECTRICAL STEEL
- CONDUCTOR : ALUMINIUM
- TERMINAL BOX : STEEL PLATE
- PAINTING : POLYURETHANE RESIN
PRODUCTION COUNTRY: THAILAND
