PSS10MC1FT
VCES: 1200 V, ±IC: 10 A
All in one IPM with a suitable terminal arrangement
Features
- For P-side : Drive circuit, High voltage high-speed level shifting, Control supply under-voltage (UV) protection without fault signal output, Built-in discrete bootstrap diode chips with current limiting resistor
- For N-side : Drive circuit, Control supply under-voltage protection (UV), Short circuit protection (SC) by detecting detecting voltage of external shunt resistor
- Fault signaling : Corresponding to SC fault (N-side IGBT) and UV fault (N-side supply)
- Temperature monitering : Outputting LVIC temperature by analog signal (No self over temperature protection)
- Input interface : 5V High Active logic
- DIPIPM, SLIMDIP, DIPIPM+, SOPIPM, DIPPFC and CSTBT are trademarks of MITSUBISHI ELECTRIC CORPORATION.
Applications
- Air conditioner
- Cloth washer
- Refrigerator
- Dish washer
- Fan
- Pump
Specifications
| Parameters | Value | Unit |
|---|---|---|
| VCES | 1200 | V |
| ±IC | 10 | A |
| Isolation voltage | 2500 | Vrms |
| Tj | 150 | ℃ |

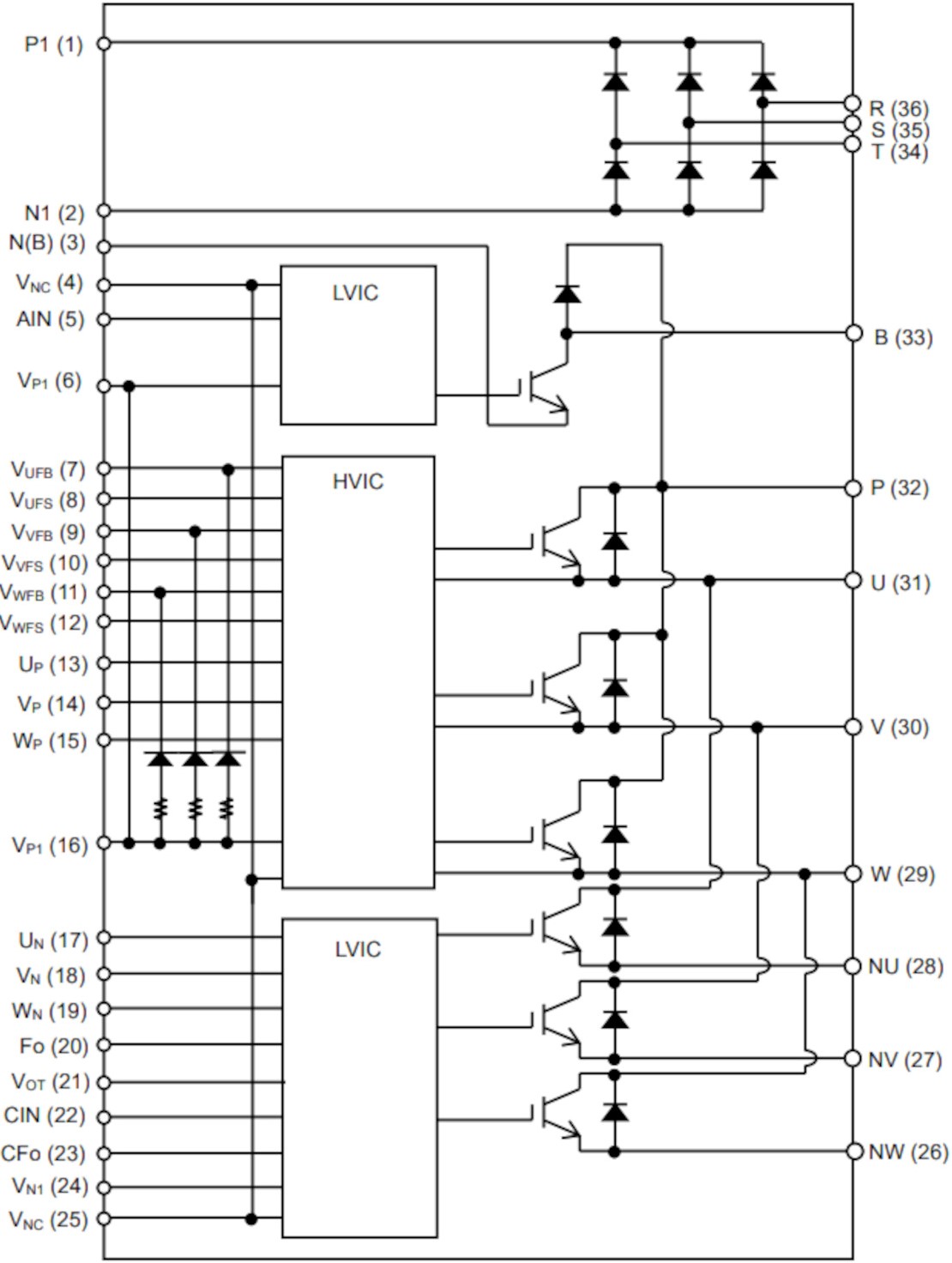

| Connection | CIB | |
| Package type | DIPIPM+ | |
| Supply situation | In production | |
| UL Recognition : UL1557 | File E323585 |
