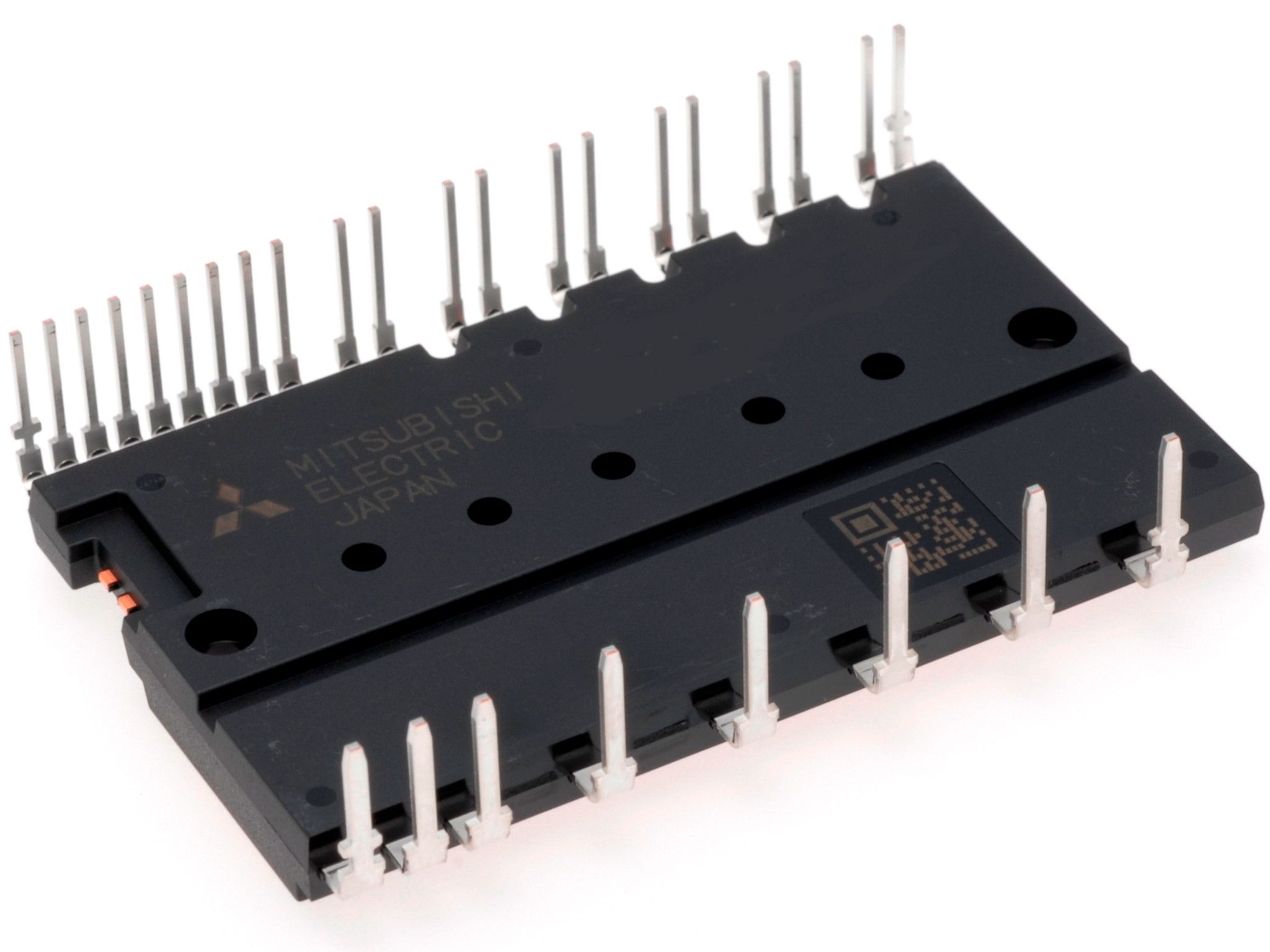

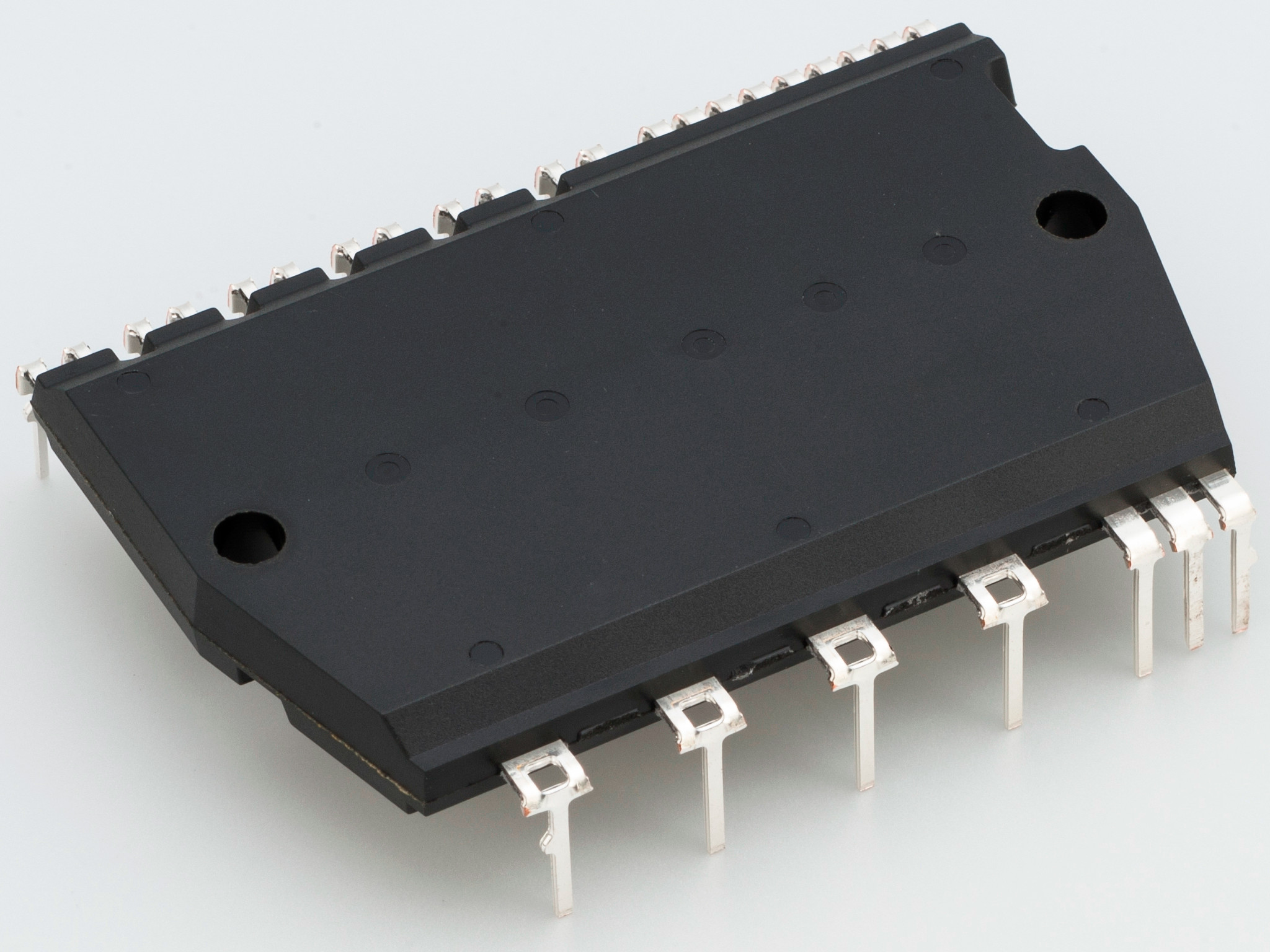

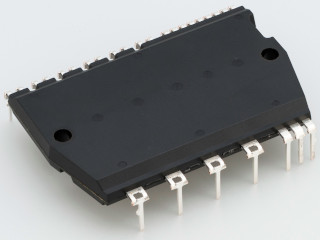

Mini DIPIPM

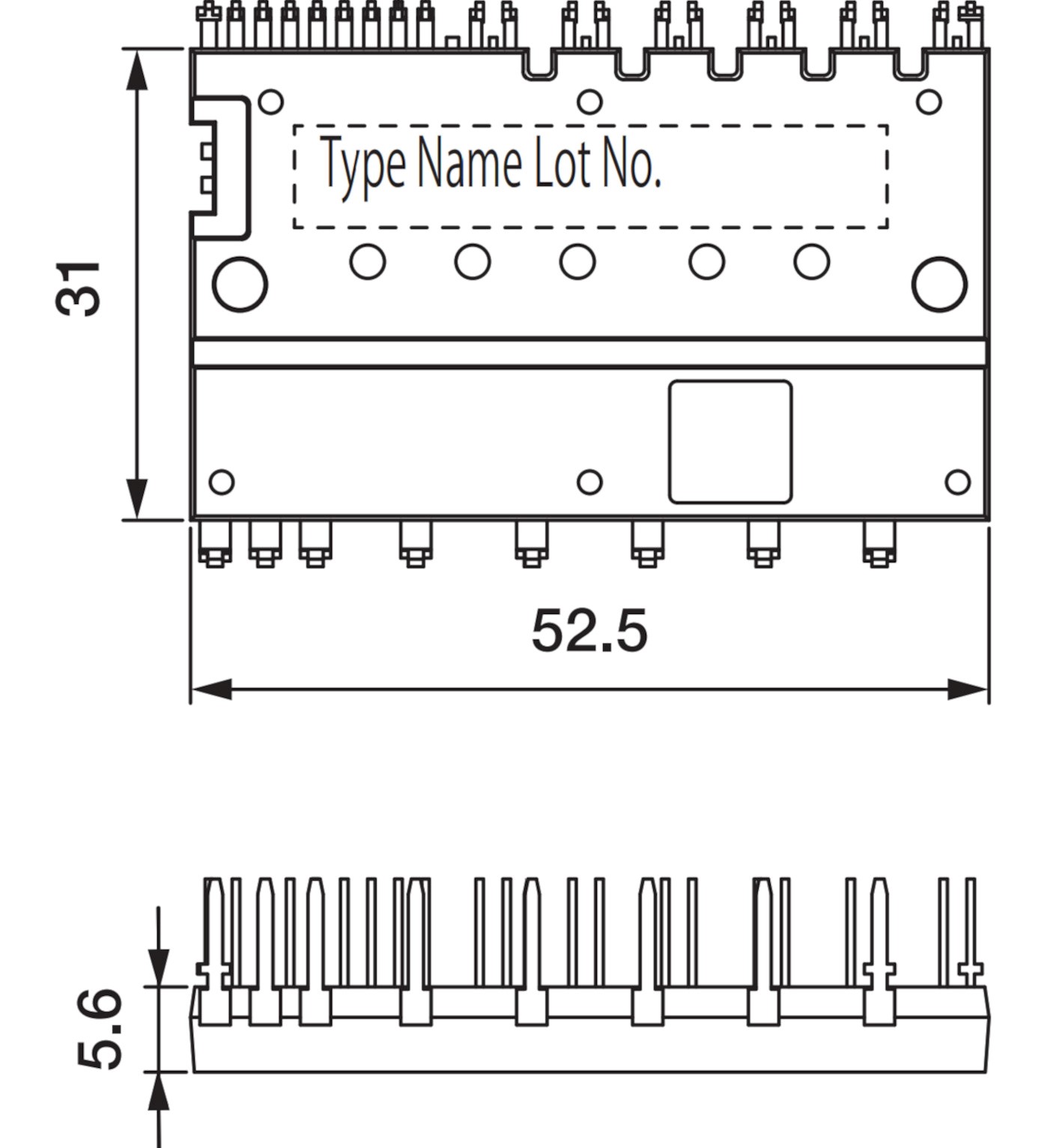

Compact package common to 1200 V/600 V
The first DIPIPM with a rated voltage of 1200 V to adopt a small package, reducing the external size to 66% compared to large DIPIPMs, and contributing to home appliances and small-capacity inverters.
Features
- Transfer molded structure achieving heat dissipation and insulation with a high thermal conductivity insulating sheet

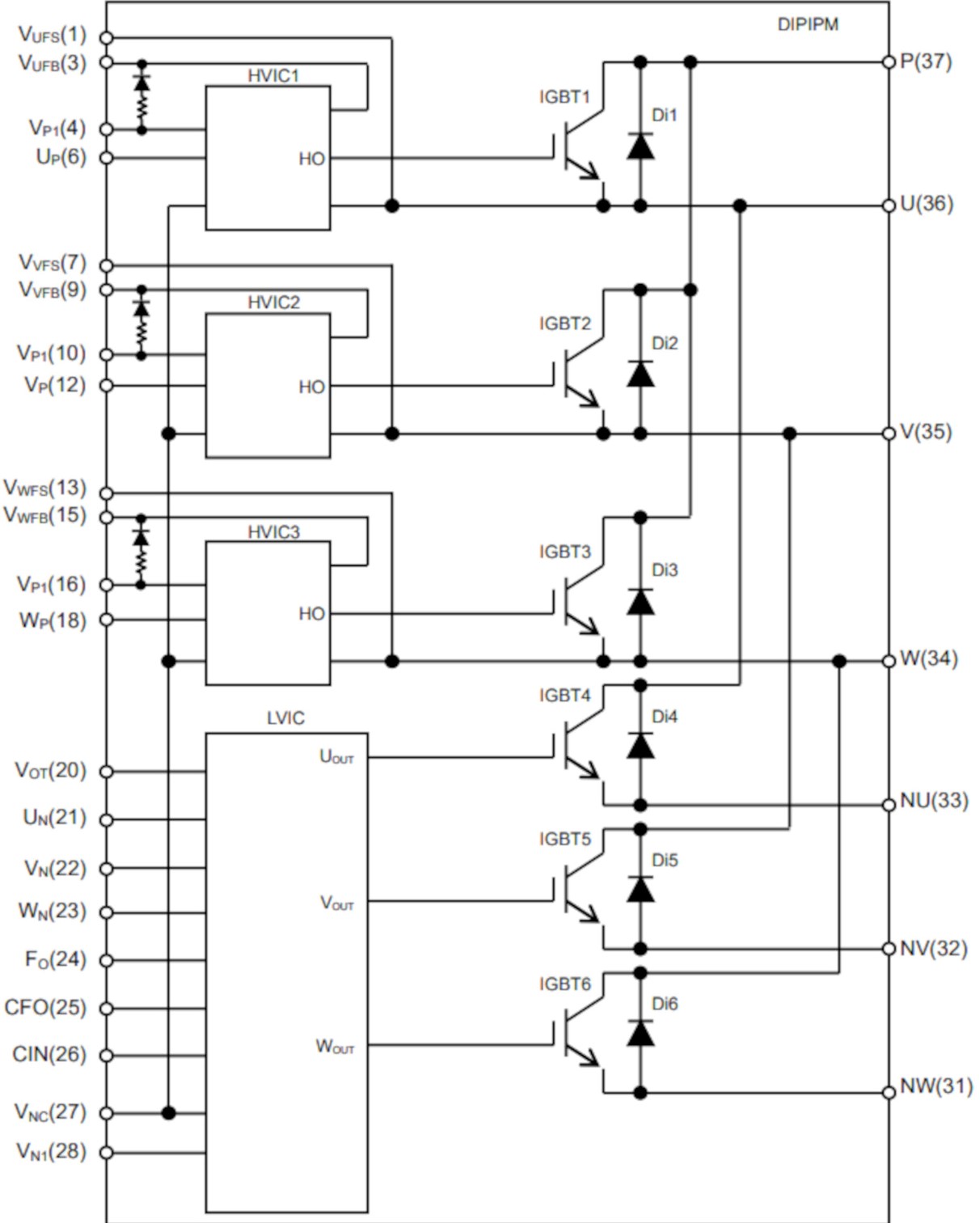

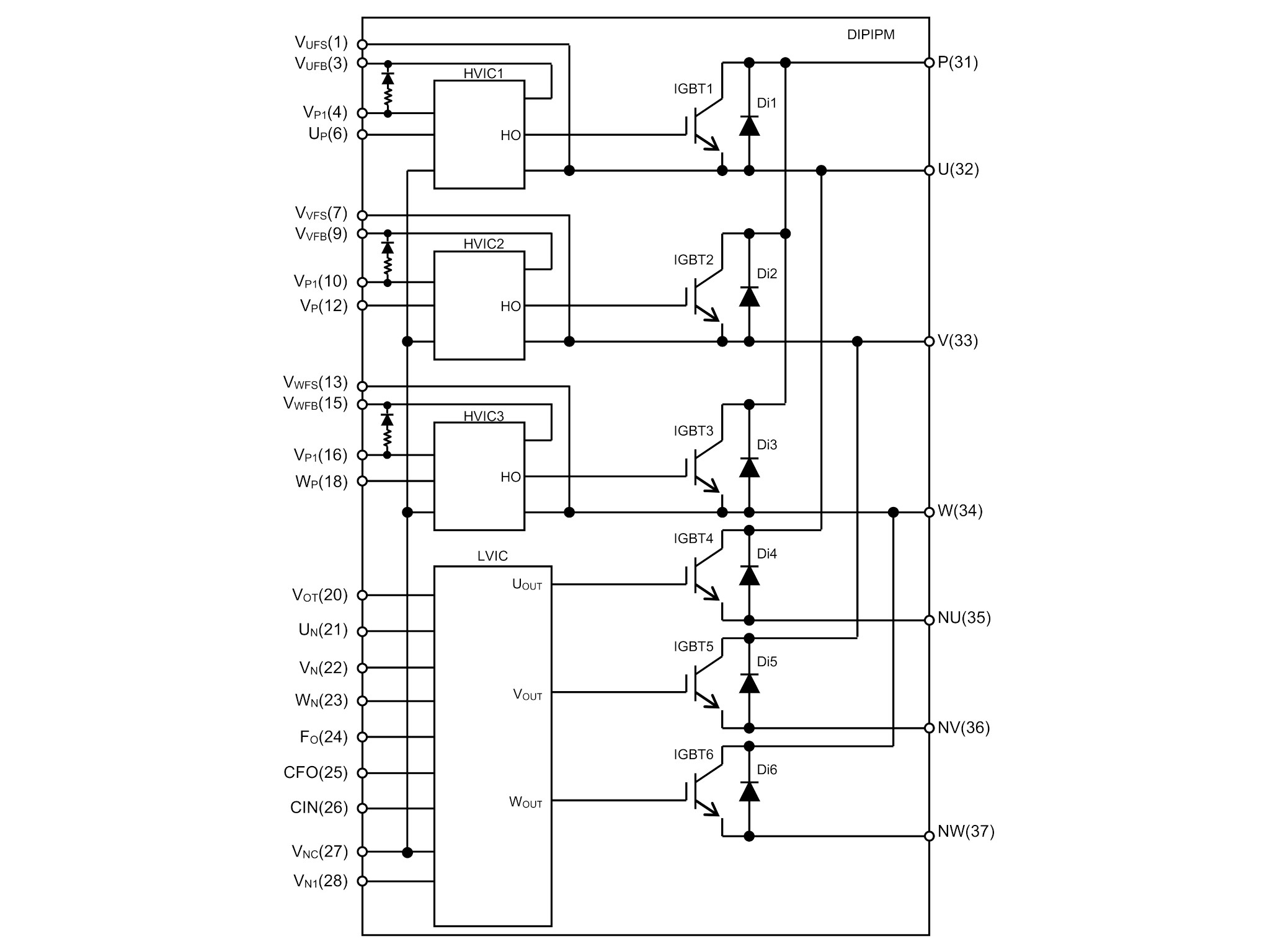

- Directly controlled by input signals from a CPU or microcontroller using HVIC*1 with a drive circuit, protection circuit and level shift circuit
- PCB downsizing and high reliability are achieved through transition to a single power source and elimination of the photocoupler
- A lineup comprising a model offering built-in BSD with a current limiting resistor*2
- ※1：High Withstand Voltage IC, High Voltage IC
- ※2：Bootstrap Diode
DIPIPM, SLIMDIP, DIPIPM+, SOPIPM, DIPPFC and CSTBT are trademarks of MITSUBISHI ELECTRIC CORPORATION.
Applications
- Home Appliance
- Motion control
- Fan motor
Lineup
VCES=600V
| IC (A) | Ver.7 | - | ||||
|---|---|---|---|---|---|---|
| Type name | DataSheet | Package | Type name | DataSheet | Package | |

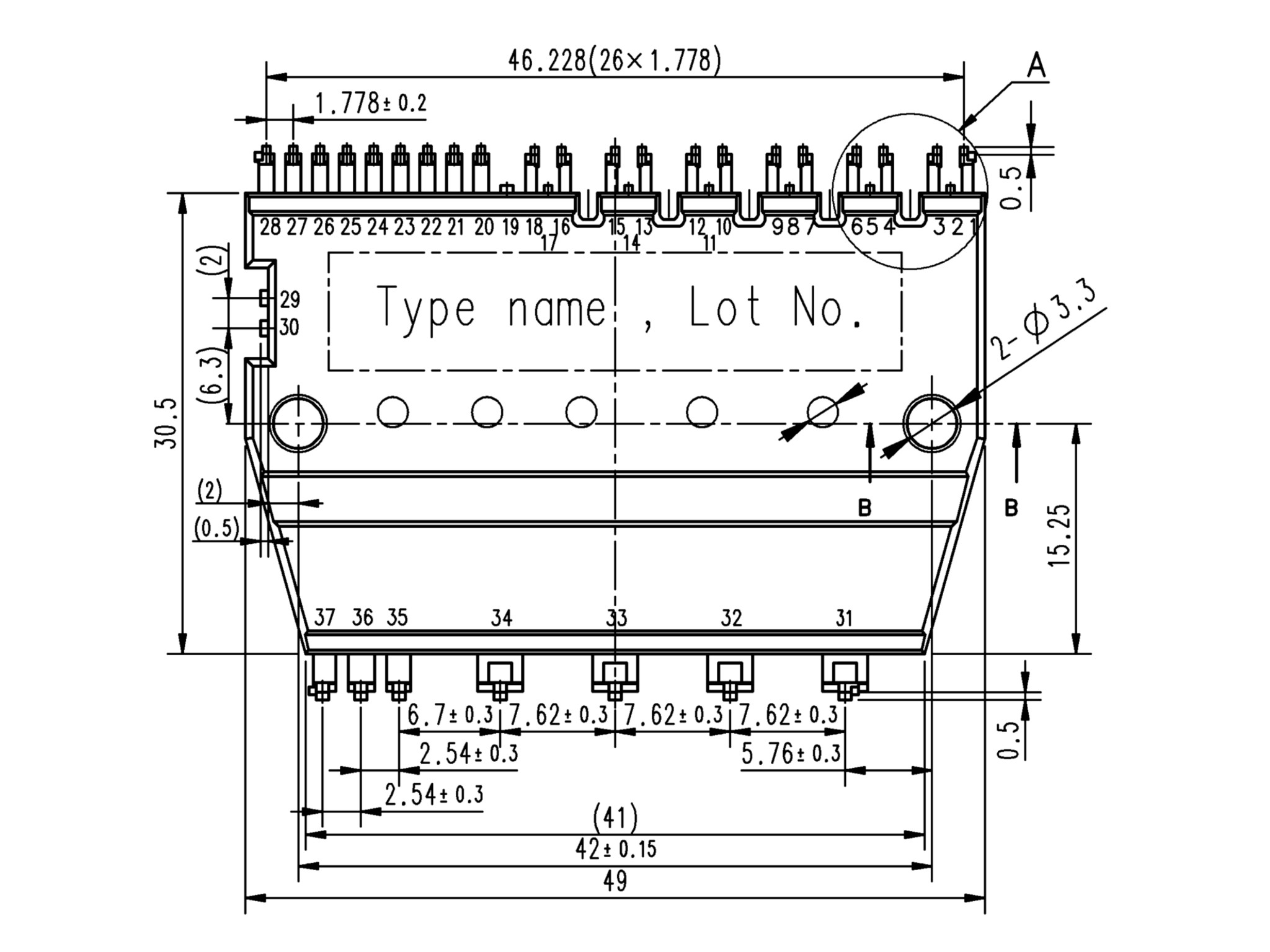

| 5 | - | - | - | TYPE-A | ||
| 10 | - | - | - | |||
| 15 | - | - | - | |||
| 20 | TYPE-B | |||||
| TYPE-B | ||||||
| 30 | ||||||
| 50 | ||||||
| Package |  | |||||
VCES=1200V
| IC (A) | Ver.7 | - | ||||
|---|---|---|---|---|---|---|
| Type name | DataSheet | Package | Type name | DataSheet | Package | |
| 5 | TYPE-B | TYPE-B | ||||
| 10 | ||||||
| 15 | - | - | - | |||
| 25 | - | - | - | |||
| Package | | |||||
Featured Products
600V & 1200V Mini DIPIPM Ver.7 series
- Compact yet highly powerful IPM
- Significantly improved design flexibility through expansion of the operation temperature range: Tj max175℃ and Tc max125℃
- Equipped with the latest improved 7th generation IGBT

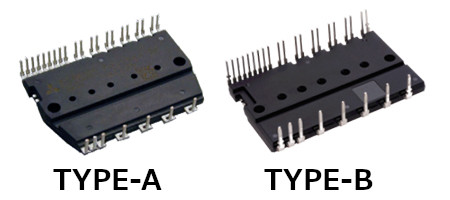

- Easy replacement with current product (Type-B): Compatible terminal positions, equivalent functions
- Can offer evaluation boards supporting 600 V & 1200 V
