DIPIPM+
An IPM with built-in converter/brake circuits, greatly reducing the number of components.
Built-in converter and brake circuits reduce the number of external components and contribute to downsizing of inverters
Features
- A single package integrating Mitsubishi Electric's DIPIPM with a built-in inverter circuit and drive circuit with a converter circuit and brake circuit
- A compact package leveraging Mitsubishi Electric's proprietary direct-wire-bonding technology※1
- An intelligent power semi-conductor module with a built-in control element equipped with a bootstrap diode (BSD)※2 with a current limit resistor, and various built-in protection functions such as analog temperature output
- Built-in converter and brake circuits reduce the number of external components and contribute to downsizing of inverters
- Simplified wiring layout on the PCB enables easy design of inverter systems
- ※1：Technology of directly bonding IC and IGBT with a wire
- ※2：Bootstrap Diode. Equipped on PSSxxMC1Fx/PSSxxNC1Fx
DIPIPM, SLIMDIP, DIPIPM+, SOPIPM, DIPPFC and CSTBT are trademarks of MITSUBISHI ELECTRIC CORPORATION.
Applications
- Motion control
- Commercial air conditioner
Lineup
VCES=600V
| IC (A) | DIPIPM+ | |
|---|---|---|

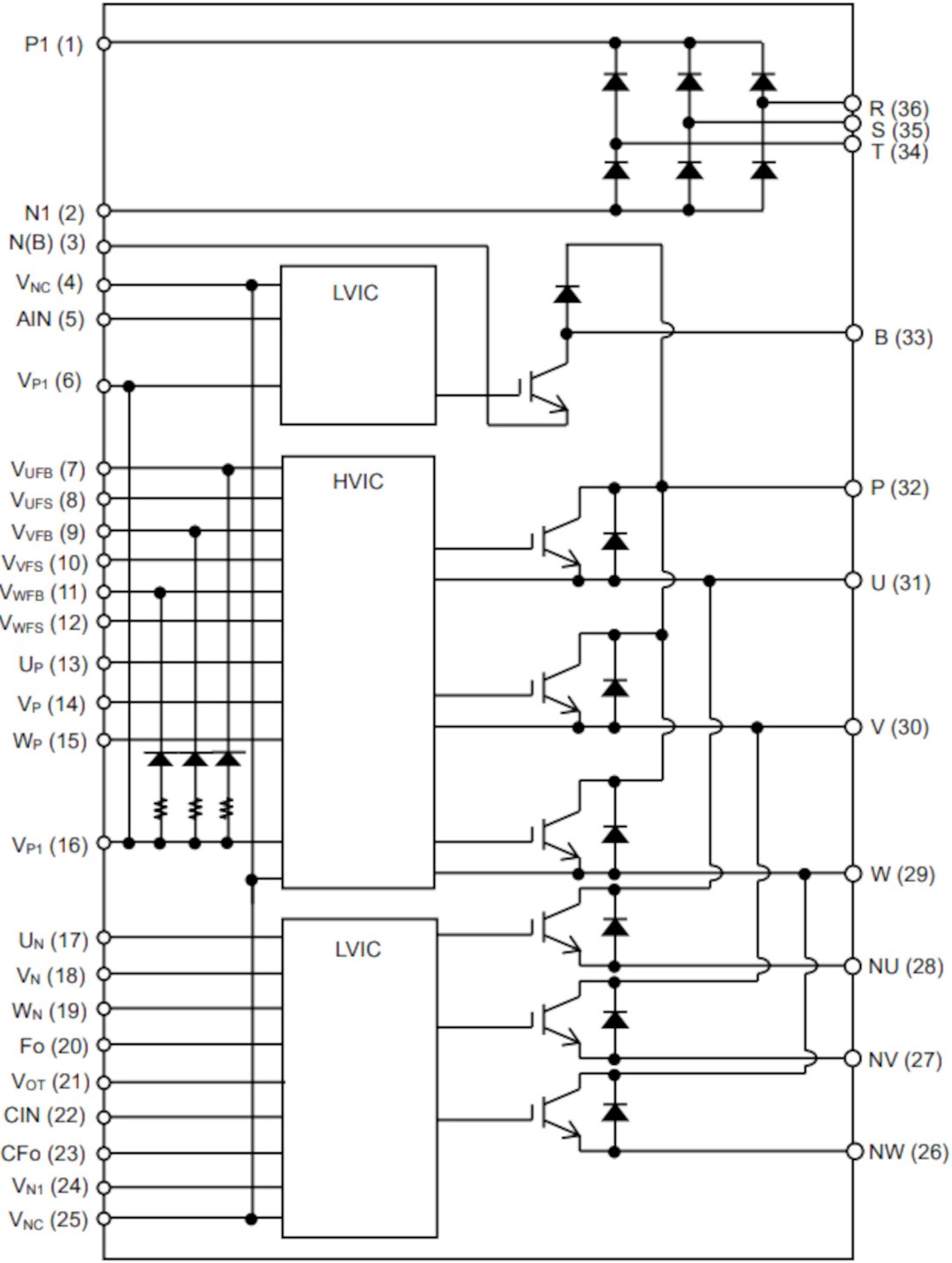

| Type name | Configuration | |
| 50 | ||
VCES=1200V
| IC (A) | DIPIPM+ | Large DIPIPM+ | ||
|---|---|---|---|---|

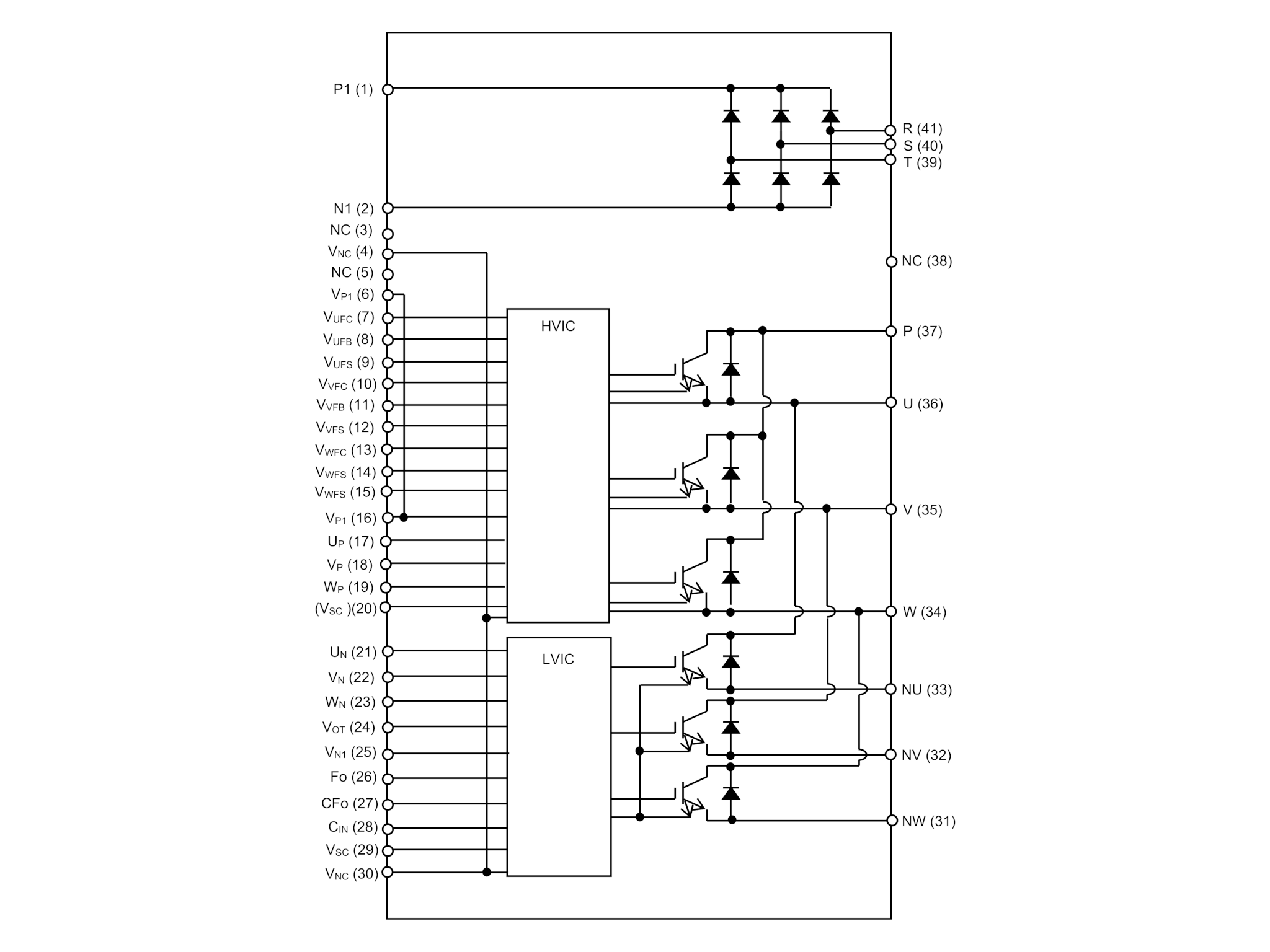

| Type name | Configuration | Type name | Configuration | |
| 5 | - | - | ||
| - | - | |||
| 10 | - | - | ||
| - | - | |||
| 15 | - | - | ||
| - | - | |||
| 25 | - | - | ||
| - | - | |||
| 35 | - | - | ||
| - | - | |||
| 50 | - | - | ||
| 75 | - | - | ||
| 100 | - | - | ||
Package
| Package | DIPIPM+ | Large DIPIPM+ |
|---|---|---|

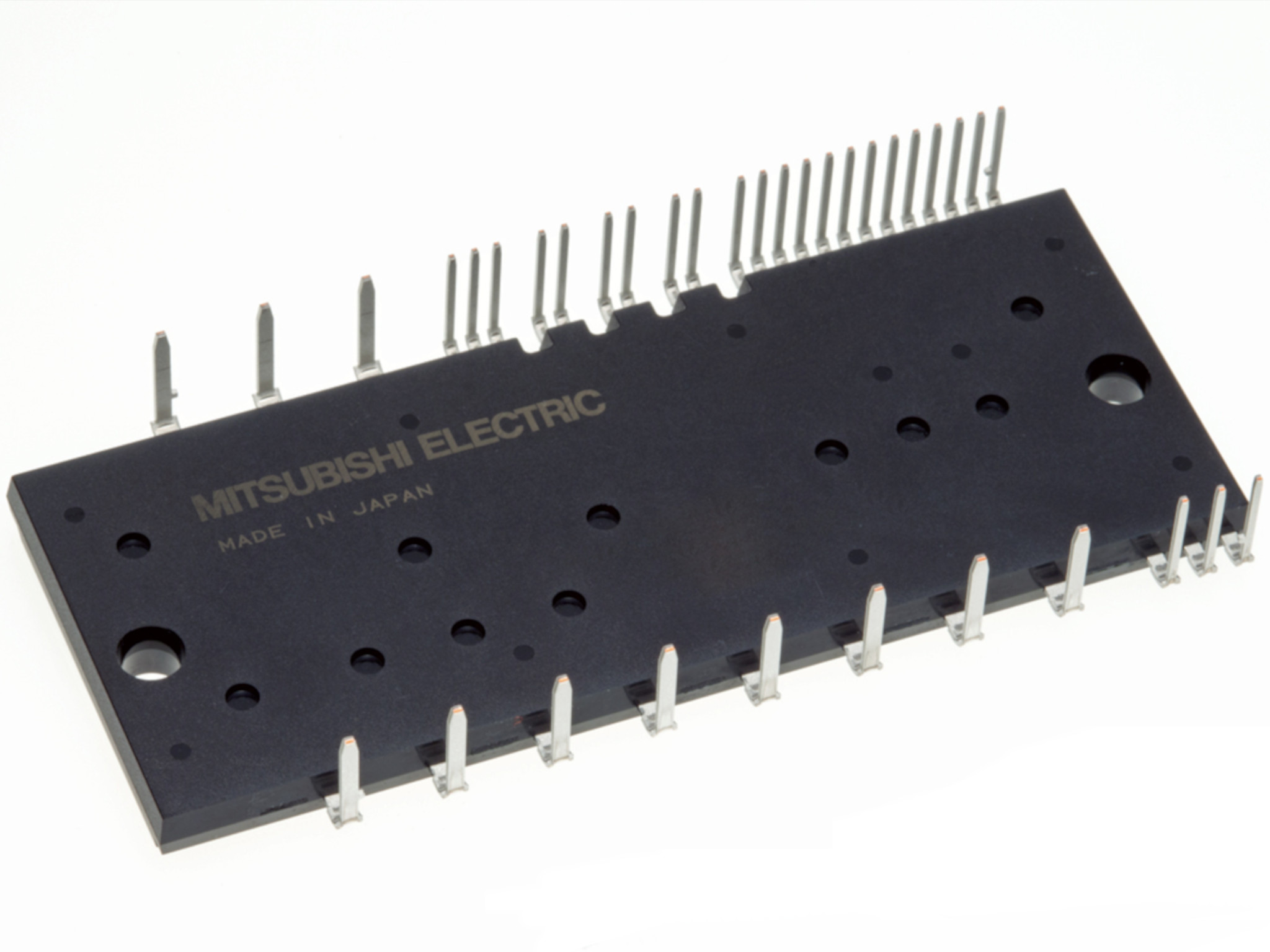

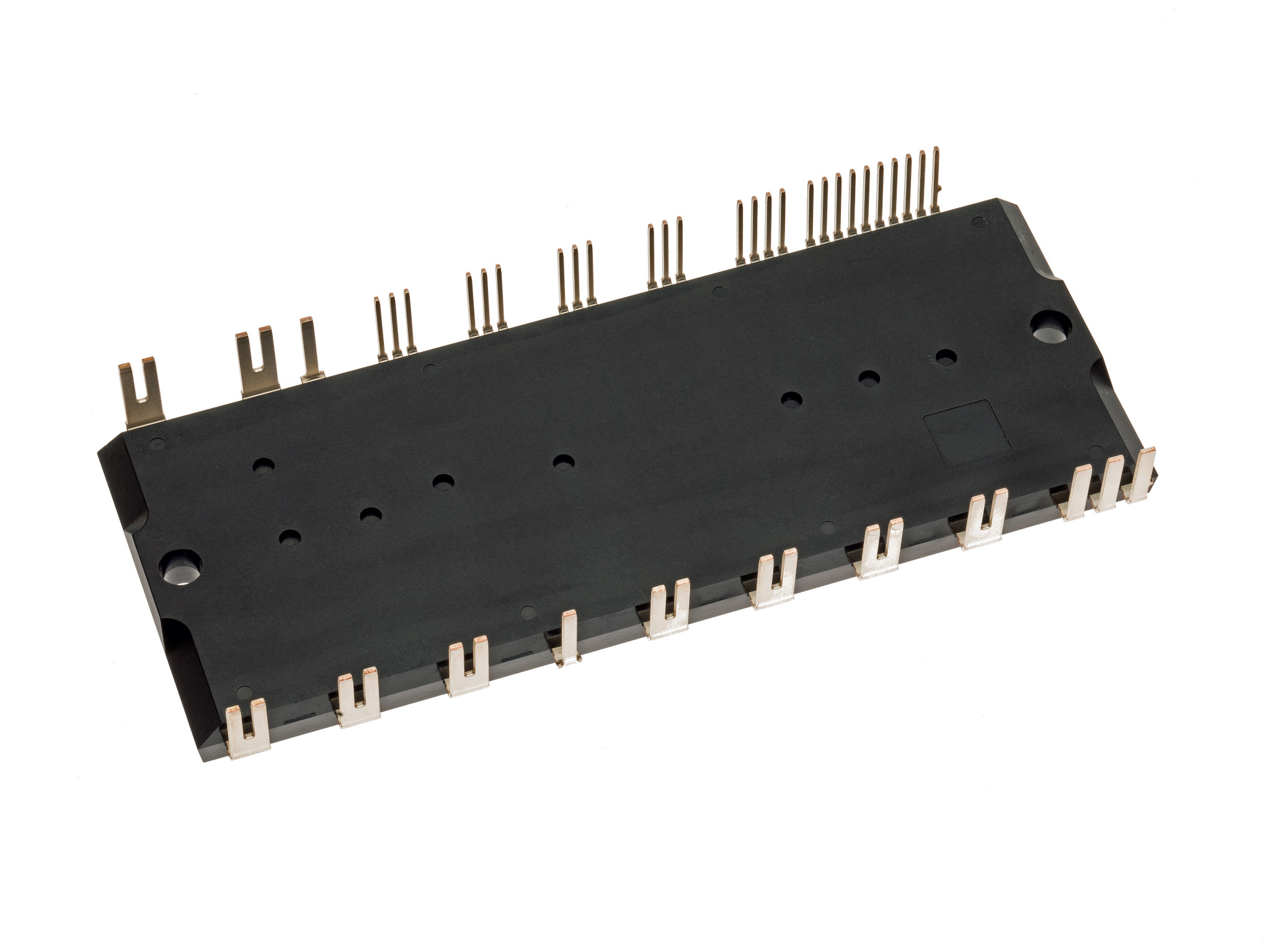

| Appearance |  |  |

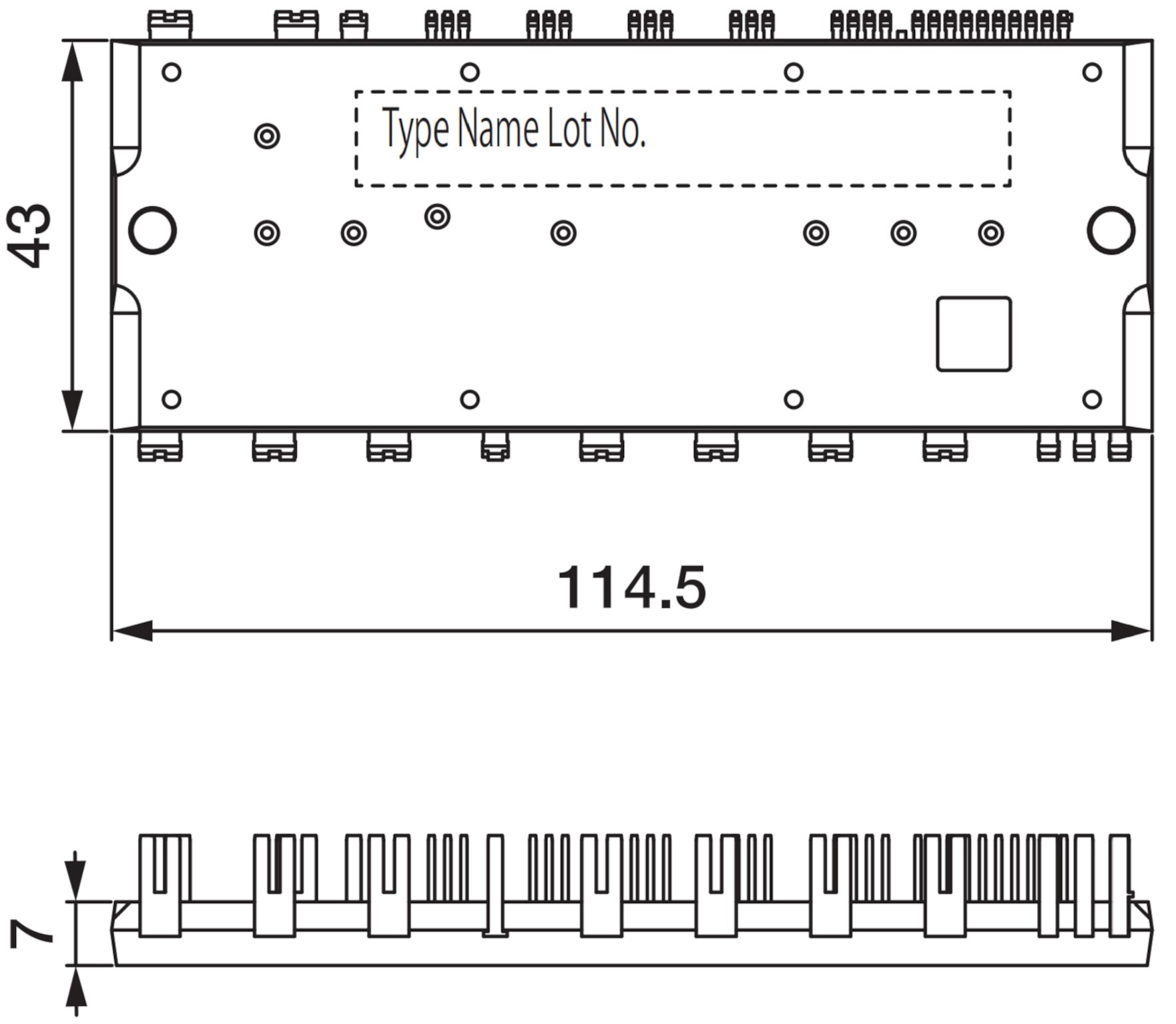

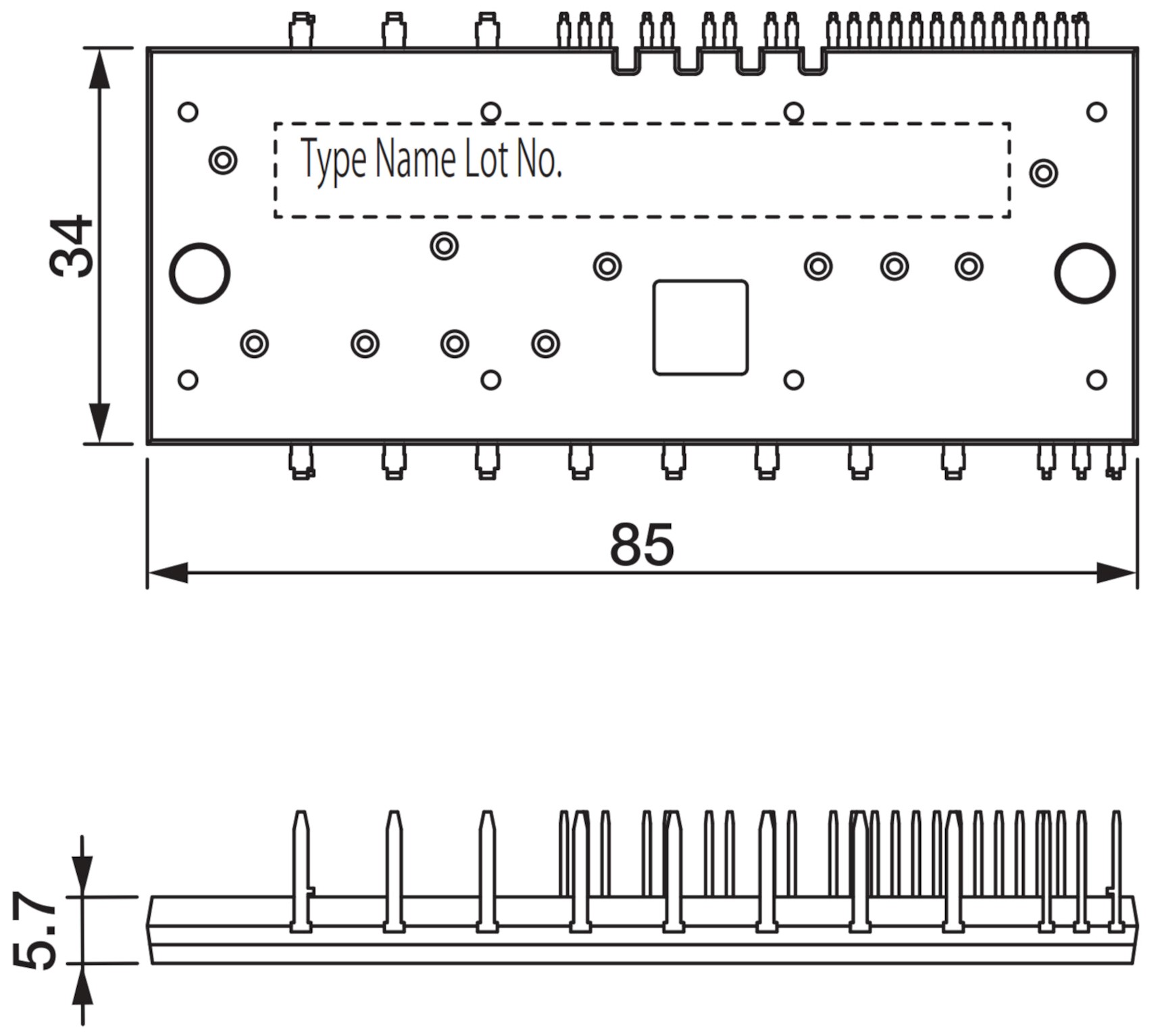

| Dimension | 34 x 85 (mm) | 43 x114.5 (mm) |
| Features | Common package to 600V/1200V | 1200 V only |
