SP2SK
VCES: 600 V, ±IC: 2 A

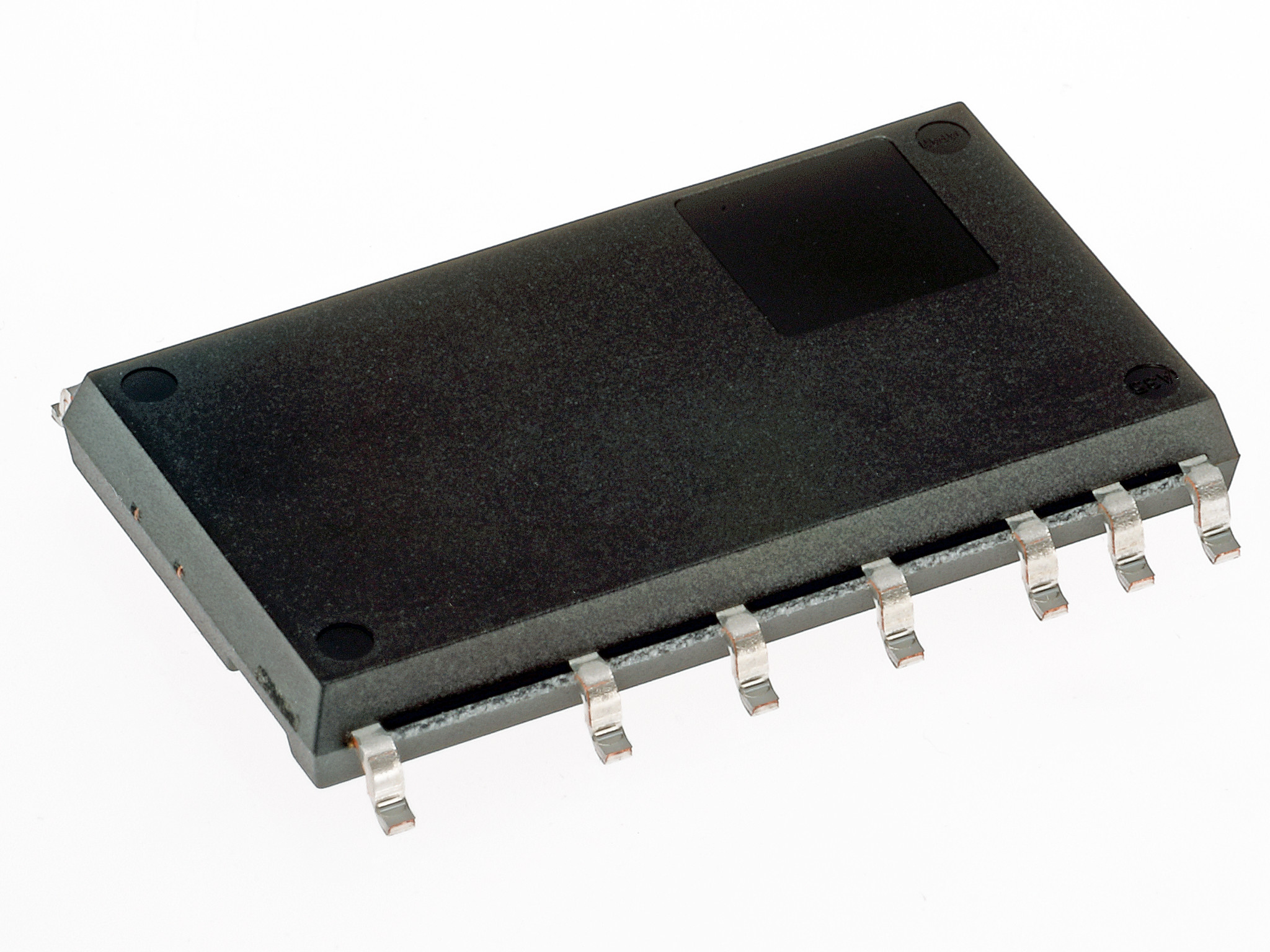

IPM with a suitable terminal arrangement for surface mount
Features
- For P-side : Drive circuit, High voltage high-speed level shifting, Control supply under-voltage protection (UV)
- For N-side : Drive circuit, Control supply under-voltage protection (UV), Over temperature protection (OT), Short circuit protection (SC) with outer shunt resistor
- Fault signaling : Corresponding to SC fault (N-side IGBT), UV fault (N-side supply) and OT fault
- Temperature monitoring : Outputting LVIC temperature by analog signal , Arm short circuit prevention : Interlock (IL)
- Input interface : Schmitt-triggered 3V, 5V input compatible, high active logic.
- DIPIPM, SLIMDIP, DIPIPM+, SOPIPM, DIPPFC and CSTBT are trademarks of MITSUBISHI ELECTRIC CORPORATION.
Applications
- Air conditioner
- Cloth washer
- Refrigerator
- Dish washer
- Fan
- Pump
Specifications

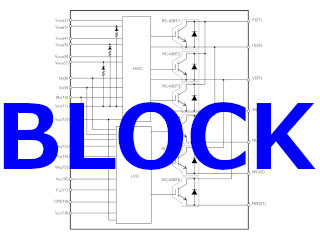

| Parameters | Value | Unit |
|---|---|---|
| VCES | 600 | V |
| ±IC | 2 | A |
| Isolation voltage | 1500 | Vrms |
| Tj | 150 | ℃ |
| Connection | Three phase inverter with driver ICs | |

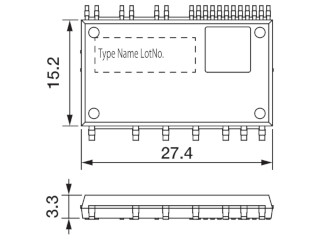

| Package type | SOP | |
| Supply situation | In production | |
| UL Recognition : UL1557 | File E323585 |
