High Voltage SiC
This lineup features SiC power semiconductors contributing to further energy-saving, downsizing and high efficiency of railway carriage traction systems, power-related systems such as direct-current transmission and power conversion equipment such as inverters. Since Mitsubishi Electric's SiC power semiconductor module was commercialized in 2010, it has been adopted in a wide range of power conversion equipment both in Japan and overseas.
Features
- Contributes to higher output and efficiency of inverters by significantly reducing power loss
- Low inductance package that maximizes SiC performance
- Contributes to higher reliability of inverter systems through a highly reliable design suited to railway applications
Applications
- Railway Traction
- Power Transmission
- Power Supply/UPS
- Motion Control

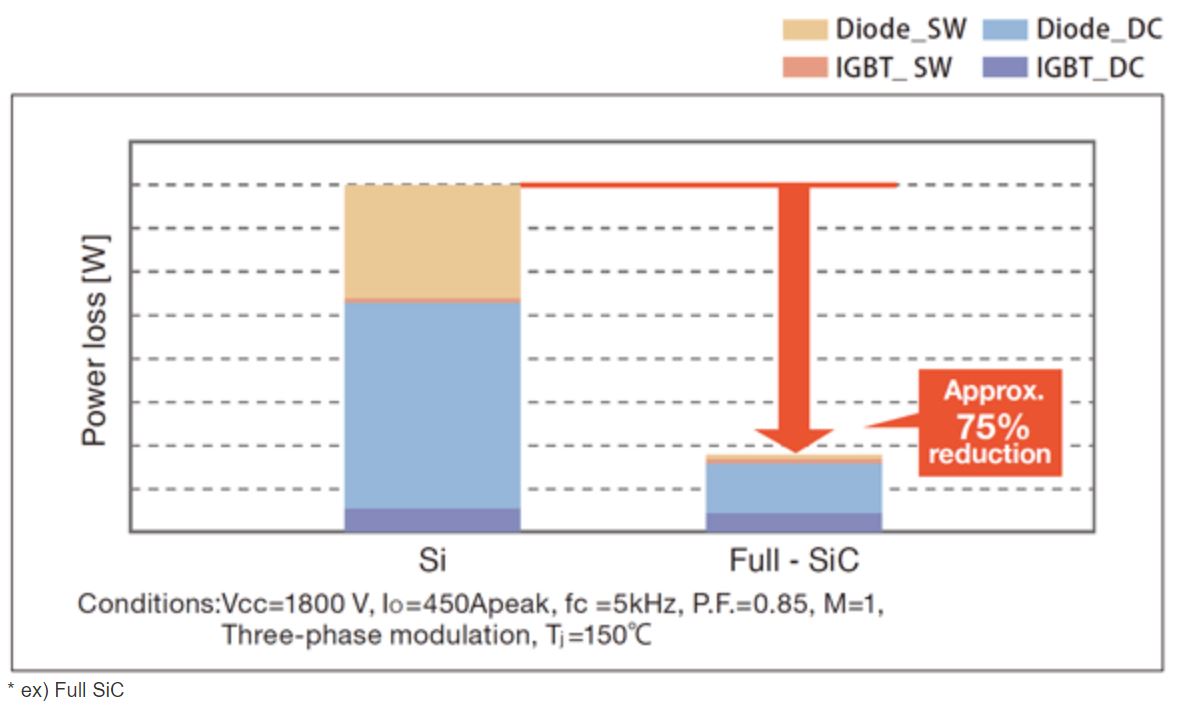

Power loss comparison

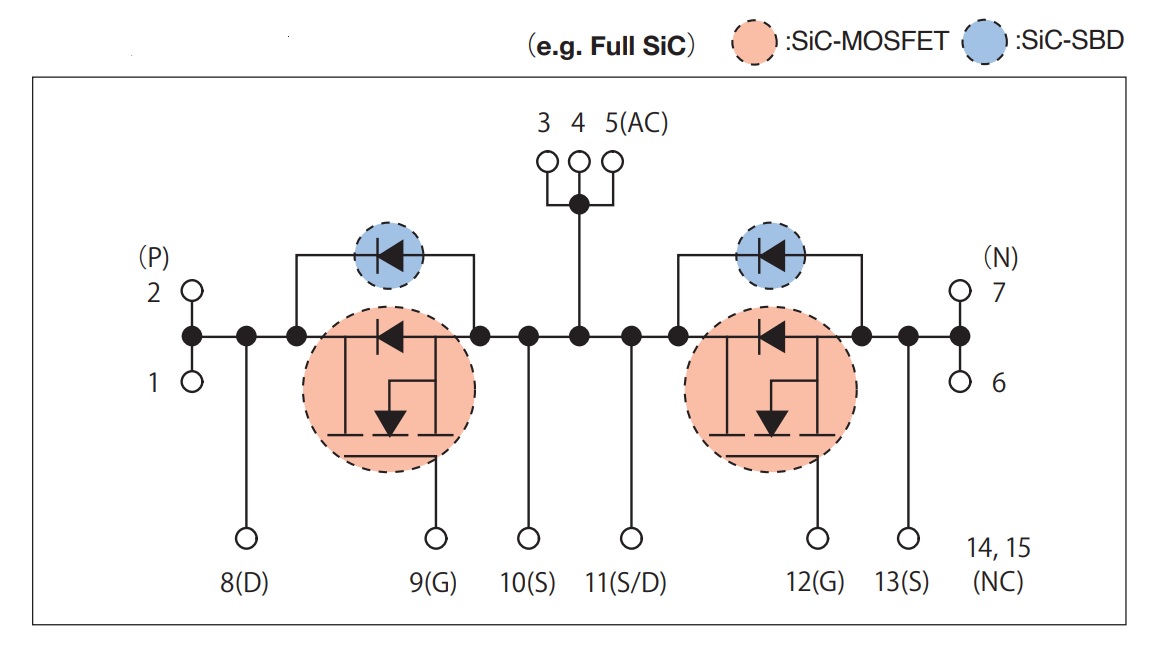

Internal equivalent circuit
Lineup

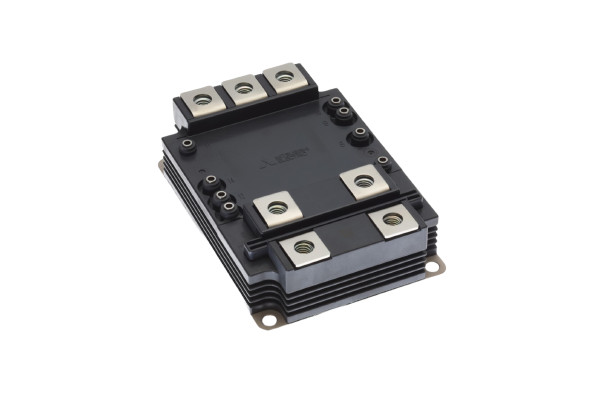

LV100 type: Viso＝6kVrms

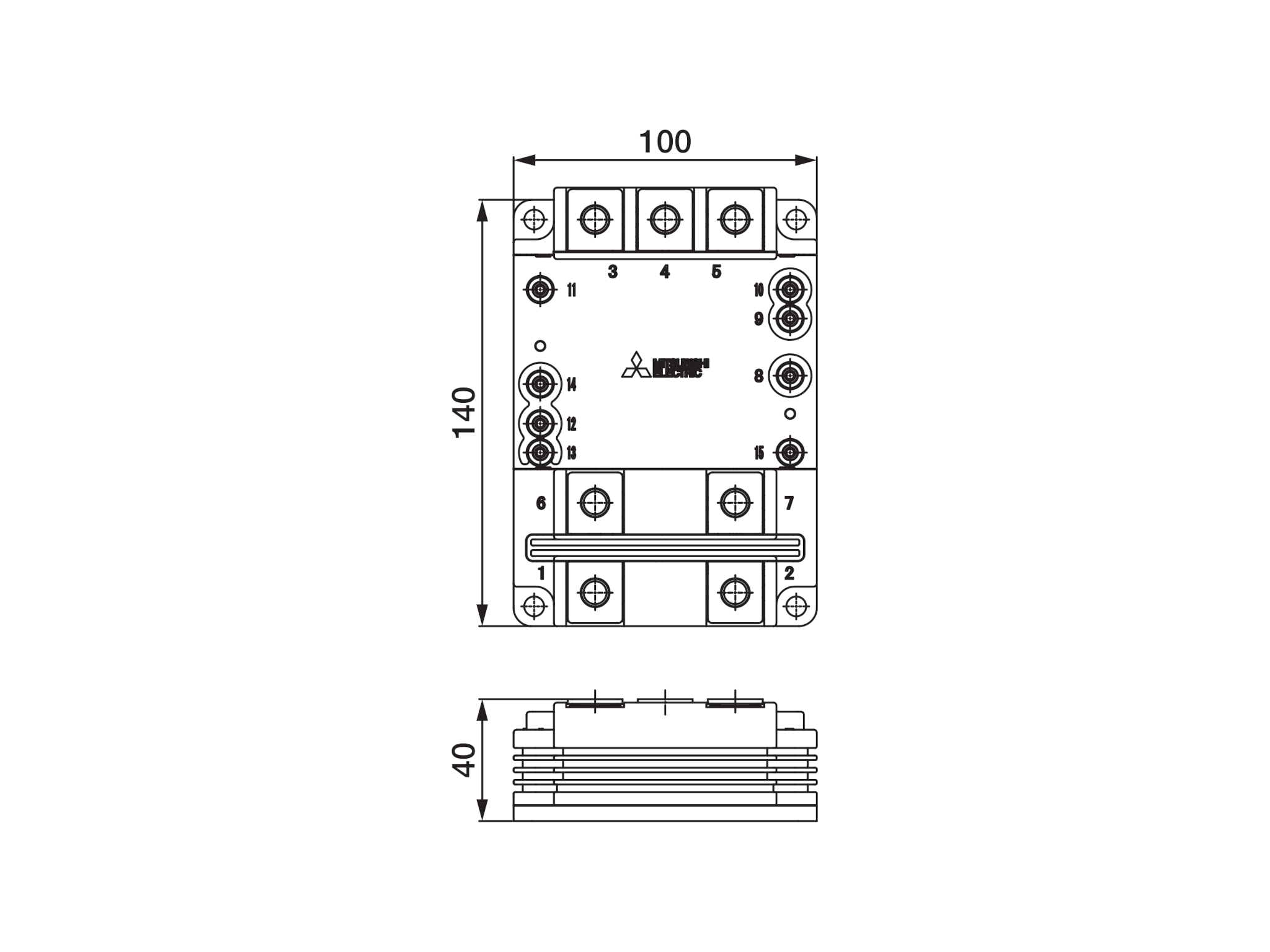

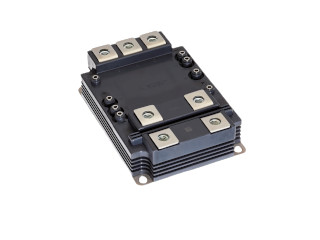

| Type | Rated voltage[V] | Rated current[A] | Type name | Circuit configuration | External dimension[mm] | External photo |
|---|---|---|---|---|---|---|
| Full SiC | 3300 | 185 |  | |||
| 200 | ||||||
| 375 | ||||||
| 400 | ||||||
| 750 | ||||||
| 800 | ||||||
| Hybrid SiC | 600 |
※1：Products falling under the subject item No. 2 (41) 3 of Appended Table 1 of the Export Trade Control Order

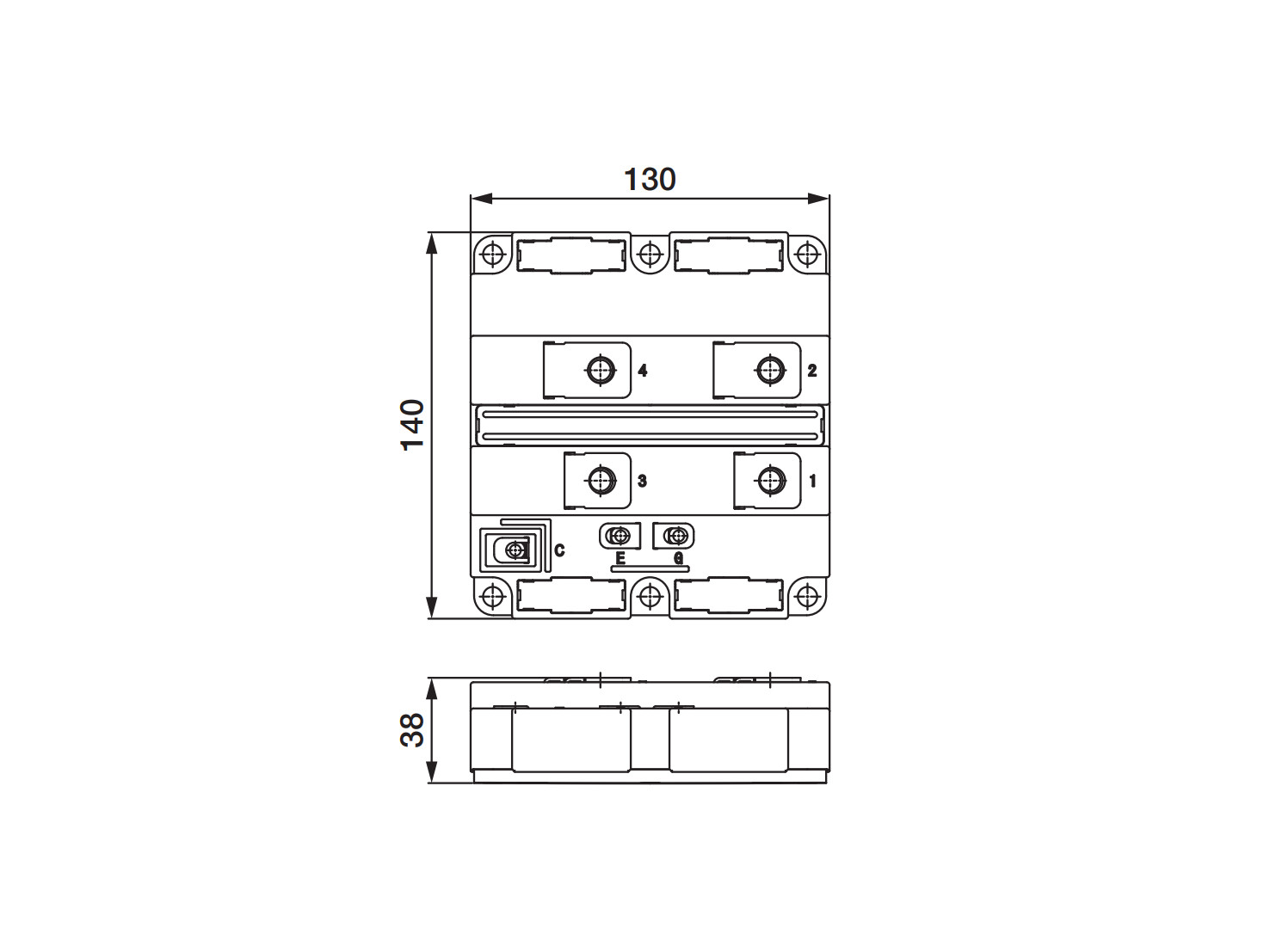

std type: Viso＝6kVrms

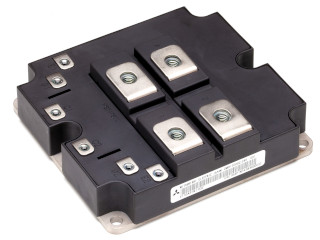

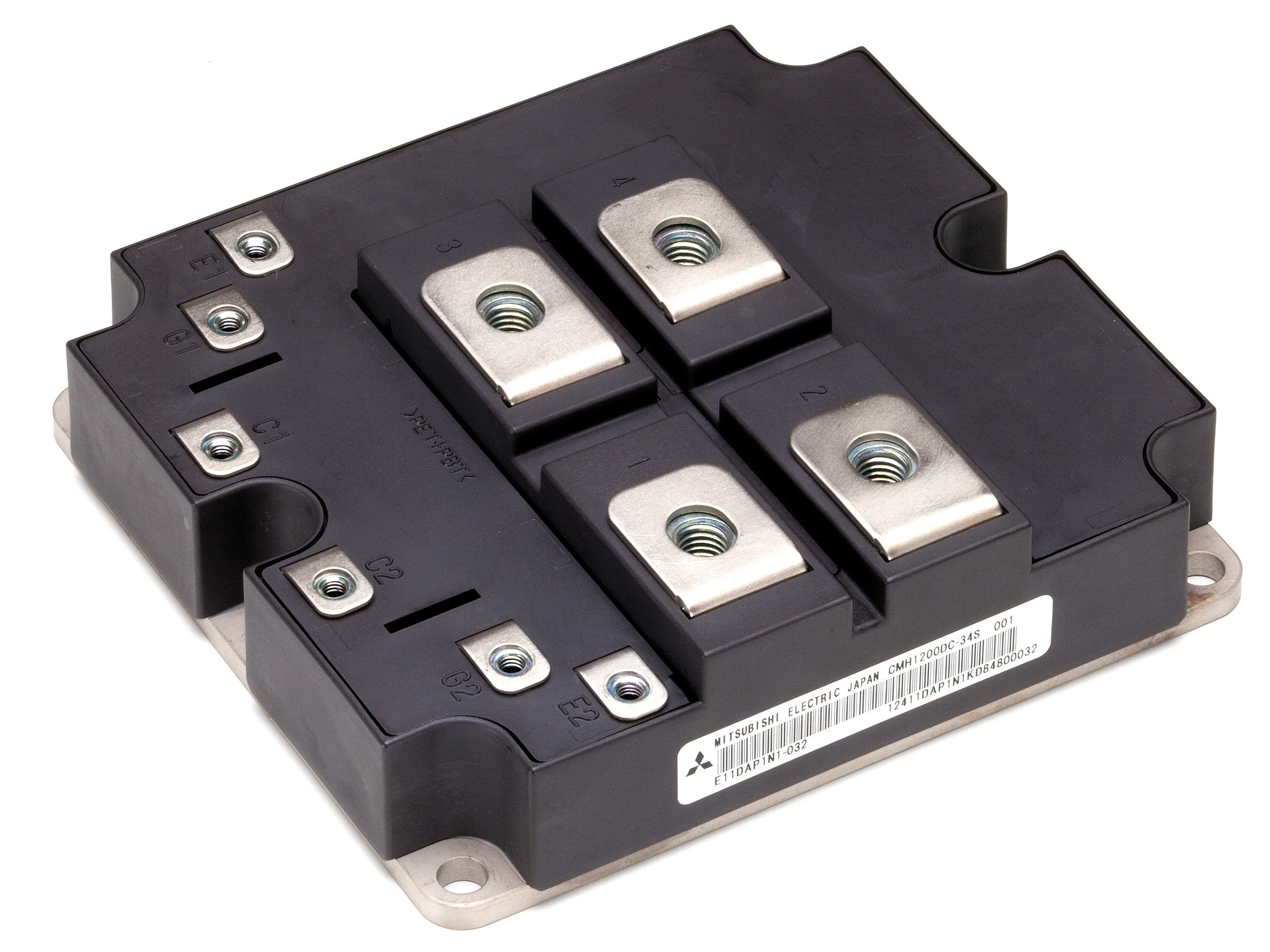

| Type | Rated voltage[V] | Rated current[A] | Type name | Circuit configuration | External dimension[mm] | External photo |
|---|---|---|---|---|---|---|
| Hybrid SiC | 1700 | 1200 |  |
Documents
Corresponding Products
Dual type of X series
Dual type of X series (2in1) HV100 has an insulation voltage of 10kVrms
X series std type

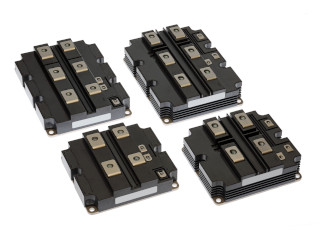

HVIGBT X series std type
SiC Power Modules for Industrial Equipment
SiC modules contributing to the downsizing, weight reduction, and performance improvement of industrial inverters.
