GOT2000 Series

Parameter recipe (simple backup/restoration)

• GT27
• GT25
• GT23*2
• GT21*2
• GS21*2
• SoftGOT*2

Challenge

We want to return the parameters to the pre-adjustment values!

What were the pre-adjustment parameter values...

Solutions

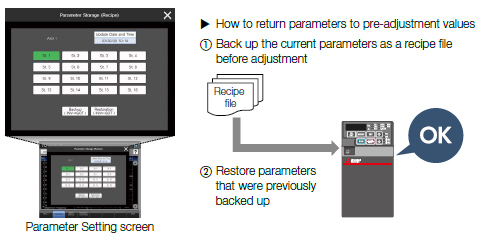

Back up/restore the pre-adjustment parameters with the GOT

The current inverter parameters can be backed up (saved) as a recipe file using the GOT. To return the parameters to the pre-adjustment state while starting up and adjusting the inverter, just restore (write) the parameters that were previously backed up (saved).

• *1 Sample screens (VGA) are available. The screen image is the sample screen of FR-A800-E for CASE 1. The screen image differs from the one for FR-E800. The sample screen of this function is not available for FR-E700/FR-D700 in CASE 4.
• *2 Sample screens are not supported by GT23, GT21, GS21, and SoftGOT.
