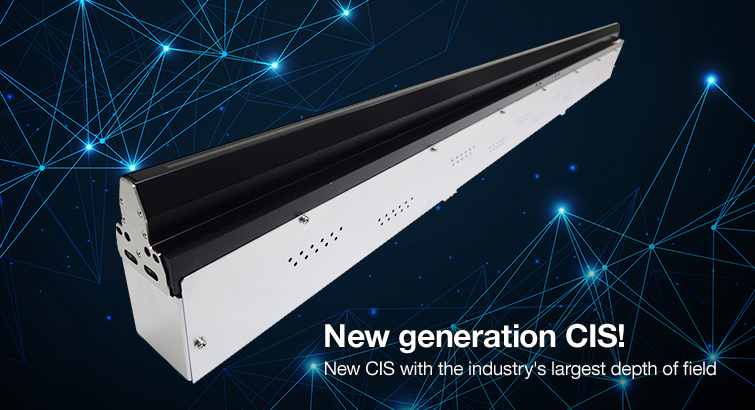

Product Lineup and Specifications of KD-CXF & CXF2 Series for Surface Inspection Applications
| Basic functions | Basic characteristics | Specifications | Download |
- Improved the depth of field, which is more than 3.6 times that of existing product!
- Image reading is clear even if the object has significant surface irregularities or vibrates!
- Scan Width 367mm,587mm,807mm,1064mm
- Working distance 27mm
- CoaXPress™、GenICam™
Basic functions
| Product name | KD-CXF, KD-CXF2 Series |
| Image Output | 8bit, 10bit RGB color/ mono |
| Data Output format | CoaXPress™ Rev. 1.1 compliant |
| Output Data Rate | Max. 6.25 Gbps × 4ch × 2 |
| Sync signal settings | External Sync Mode, Internal Sync Mode |
| Resolution | 600dpi, 300dpi, 200dpi, 150dpi |
| Image process function | Dark/White correction, Interpolation, PGA, γ-correction, etc. |
| Item | KD6R1064CXF-NL | KD6R367CXF2-NL KD6R587CXF2-NL KD6R807CXF2-NL |
|||
| 10bit | 600dpi | 1.9 | 2.3 | 1.8 | 2.3 |
| 300dpi | 7.6 | 8.1 | 7.5 | 8.1 | |
| 200dpi | 16.5 | 16.5 | 16.5 | 16.5 | |
| 150dpi | 26.9 | 26.9 | 26.9 | 26.9 | |
| 8bit | 600dpi | 2.3 | 2.3 | 2.3 | 2.3 |
| 300dpi | 8.1 | 8.1 | 8.1 | 8.1 | |
| 200dpi | 16.5 | 16.5 | 16.5 | 16.5 | |
| 150dpi | 26.9 | 26.9 | 26.9 | 26.9 | |
Basic characteristics

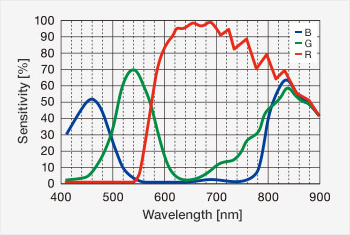

Spectral sensitivity of sensor IC
Images read at different focal points by existing product and KD-CXF model
Improve the depth of field to ±1.8mm, which is more than 3.6 times that of existing products！
| Distance from focal point (- side is closer to object and + side is further from object) |
|||||
| -2mm | -1mm | ±0mm (focal point) |
+1mm | +2mm | |
| Existing Product (CXL-NL) |
|
|
|
|
|
| CXF-NL |
|
|
|
|
|
*The direction of motion of CIS is from left to right.
Specifications
| Item | KD6R1064CXF-NL | KD6R367CXF2-NL KD6R587CXF2-NL KD6R807CXF2-NL |
||||
| Scan width | ㎜ | 1064 | 367 | 587.2 | 807.4 | |
| Valid pixels | pixel | 25,506 × 3 | 8,640 × 3 | 13,824 × 3 | 19,008 × 3 | |
| Pixel density | dpi | 600 | ||||
| Data output format | - | CoaXPress™ Rev. 1.1 | ||||
| Maximum Line rate (kHz/line) |
10bit | 600dpi | 45.1 | 55.0 | 44.2 | 55.0 |
| 300dpi | 90.5 | 96.2 | 88.7 | 96.2 | ||
| 200dpi | 130.6 | 130.6 | 130.6 | 130.6 | ||
| 150dpi | 159.1 | 159.1 | 159.1 | 159.1 | ||
| 8bit | 600dpi | 55.0 | 55.0 | 55.0 | 55.0 | |
| 300dpi | 96.2 | 96.2 | 96.2 | 96.2 | ||
| 200dpi | 130.6 | 130.6 | 130.6 | 130.6 | ||
| 150dpi | 159.1 | 159.1 | 159.1 | 159.1 | ||
| Output data rate | Gbps | 6.25Gbps × 4 max × 2 ch | 6.25Gbps × 4 max × 1 ch | 6.25Gbps × 4 max × 2 ch | ||
| Power | V | 5V 2ch (22A max.) |
24V 1ch (2.4A max.) |
24V 1ch (3.5A max.) |
24V 2ch (4.9A max.) |
|
| Light source | - | - | - | |||
| Exposure control | - | Illumination pulse Duty adjustment / Electronic shutter | ||||
| Focal point | ㎜ | 27.1 (from glass surface) | ||||
| Size (L×W×H) | ㎜ | 1131.1 × 59.0 × 119.3 | 434.1 × 61.0 × 129.8 | 654.1 × 61.0 × 129.8 | 874.1 × 61.0 × 129.8 | |
| Weight | kg | 5.8 | 2.7 | 3.8 | 5.1 | |
| Regulatory compliance | – | RoHS/CE | ||||
* Please download outline drawings here.
* GenICam™ is a trademark registered by EMVA (European Machine Vision Association)
* CoaXPress™ is a trademark registered by AIA (Automated Imaging Association)
