Products: Semiconductors & Devices
Contact Image Sensors (CIS)
Product Lineup and Specifications of KD-CXL Series for Surface Inspection Applications
| Basic functions | Basic characteristics | Specifications | Download |

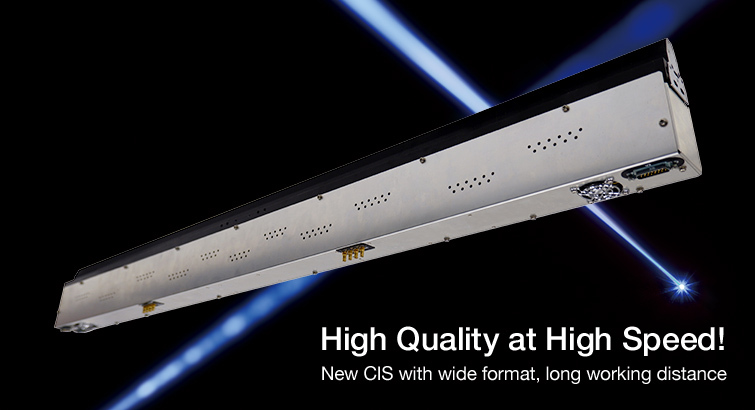

- Simple installation! Wide format but compact!
- Wide format Scanning max width 1688mm
- Long working distance 27mm
- CoaXPress®, GenICam®
- High speed scan! Approx. 480m/min (1688mm, 300dip, 24bit RGB)
Basic functions
| Product name | KD-CXL Series |
| Image Output | 8bit, 10bit RGB color/ mono |
| Data Output format | CoaXPress® Rev. 1.1 compliant |
| Output Data Rate | Max. 6.25 Gbps × 4ch × 2 or 3 lines |
| Sync signal settings | External Sync Mode, Internal Sync Mode |
| Resolution | 600dpi, 300dpi, 200dpi, 150dpi |
| Image process function | Dark/White correction, Interpolation, PGA, γ-correction, etc. |
| Item | KD6R1064CXL-NL | KD6R1247CXL-NL KD6R1688CXL-NL |
|
| 10bit | 600dpi | 1.9 m/sec | 1.5 m/sec |
| 300dpi | 7.6 m/sec | 6.3 m/sec | |
| 200dpi | 16.5 m/sec | 14.3 m/sec | |
| 150dpi | 26.9 m/sec | 25.5 m/sec | |
| 8bit | 600dpi | 2.3 m/sec | 1.9 m/sec |
| 300dpi | 8.1 m/sec | 7.9 m/sec | |
| 200dpi | 16.5 m/sec | 16.5 m/sec | |
| 150dpi | 26.9 m/sec | 26.9 m/sec | |
Basic characteristics
Spectral sensitivity of sensor IC
Depth of Focus (DOF)
Example of scanned image (ref)
Specifications
| Item | Non light source | ||||
| KD6R1064CXL-NL | KD6R1247CXL-NL | KD6R1688CXL-NL | |||
| Scan width | ㎜ | 1064.3 | 1247.8 | 1688.3 | |
| Valid pixels | pixel | 25,056 × 3 | 29,376 × 3 | 39,744 × 3 | |
| Resolution | dpi | 600 | |||
| Data output format | - | CoaXPress® Rev. 1.1 | |||
| Scan speed (kHz/line) |
10bit | 600dpi | 45.1 | 37.6 | |
| 300dpi | 90.5 | 75.4 | |||
| 200dpi | 130.6 | 113.2 | |||
| 150dpi | 159.1 | 150.9 | |||
| 8bit | 600dpi | 55.0 | 47.0 | ||
| 300dpi | 96.2 | 94.3 | |||
| 200dpi | 130.6 | ||||
| 150dpi | 159.1 | ||||
| Output data rate | Gbps | 6.25 × 4 max. × 2 ch | 6.25 × 4 max. × 2 ch | 6.25 × 4 max. × 3 ch | |
| Power | Sensor | 5V × 2 (22A Max.) | 5V × 3 (26A Max.) | 5V × 3 (34A Max.) | |
| Light source | – | ||||
| Light source | – | – | |||
| Exposure control | – | LED pulse duty control / Electronic shutter | |||
| Focal point | ㎜ | 27.3 (from glass surface) | |||
| Size (L×W×H) | ㎜ | 1130 × 59 × 119 | 1314 × 59 × 119 | 1755 × 59 × 119 | |
| Weight | kg | 5.3 | 6.2 | 8.4 | |
| Regulatory compliance | – | RoHS/CE | RoHS | ||
* Subject to change as the product is under development.
* Please download outline drawings here.
* GenICam® is a trademark registered by EMVA (European Machine Vision Association)
* CoaXPress® is a trademark registered by AIA (Automated Imaging Association)
