SiC Power Device
Full-SiC Power Module
VDSS=1200V～1700V
ID=300A～1200A
Hybrid-SiC Power Module
VDSS=1200V
ID=100A～600A
HV SiC Moduel
VDSS=1700V～3300V
ID=185A～1200A
SiC DIPIPM
VDSS=600V
ID=15A～25A
SiC DIPPFC
VDSS=600V
ID=30A

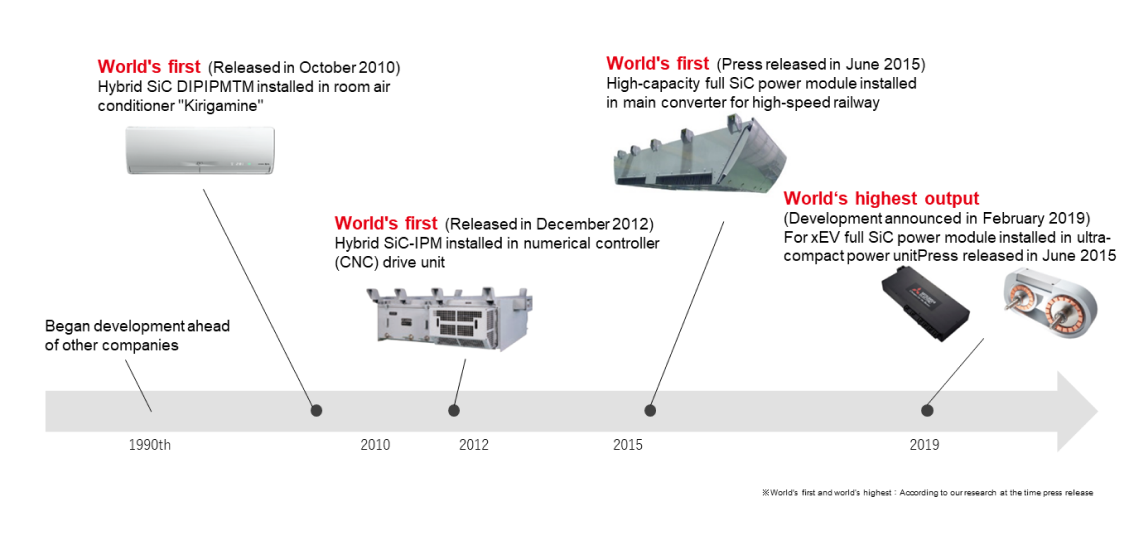

Initiatives for SiC

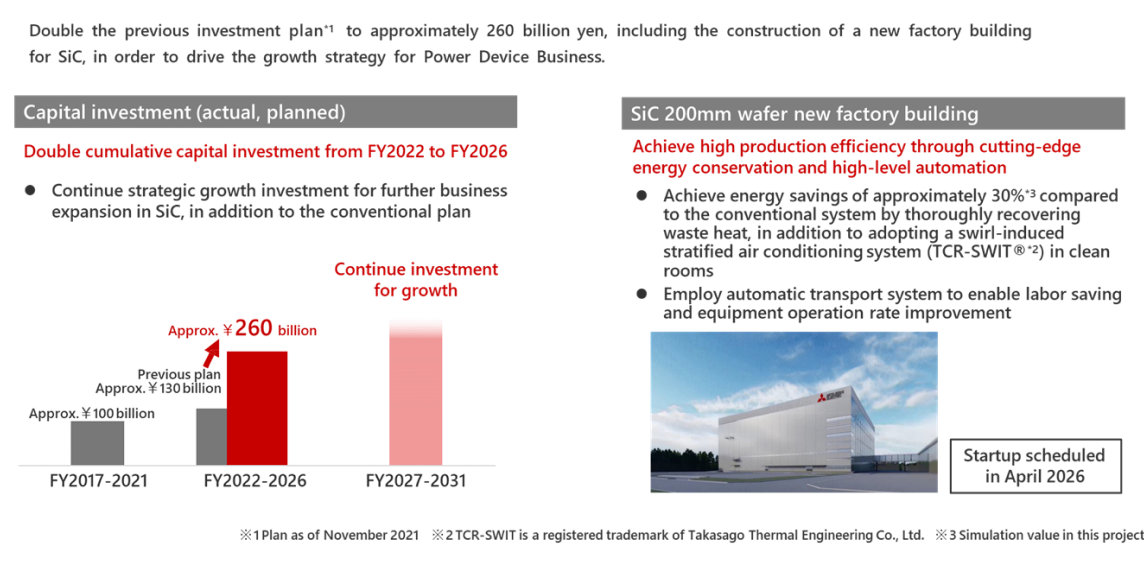

Proactive resource assignment
Provided for various usages
Mitsubishi Electric began developing SiC as a new material in the early 1990s. Pursuing special characteristics, we succeeded in developing various elemental technologies. In 2010, we commercialized the first air conditioner in the world equipped with a SiC power device. Furthermore, substantial energy-saving effects have been achieved for traction and FA machinery. We will continue to provide competitive SiC power modules with advanced development and achievements from now on.

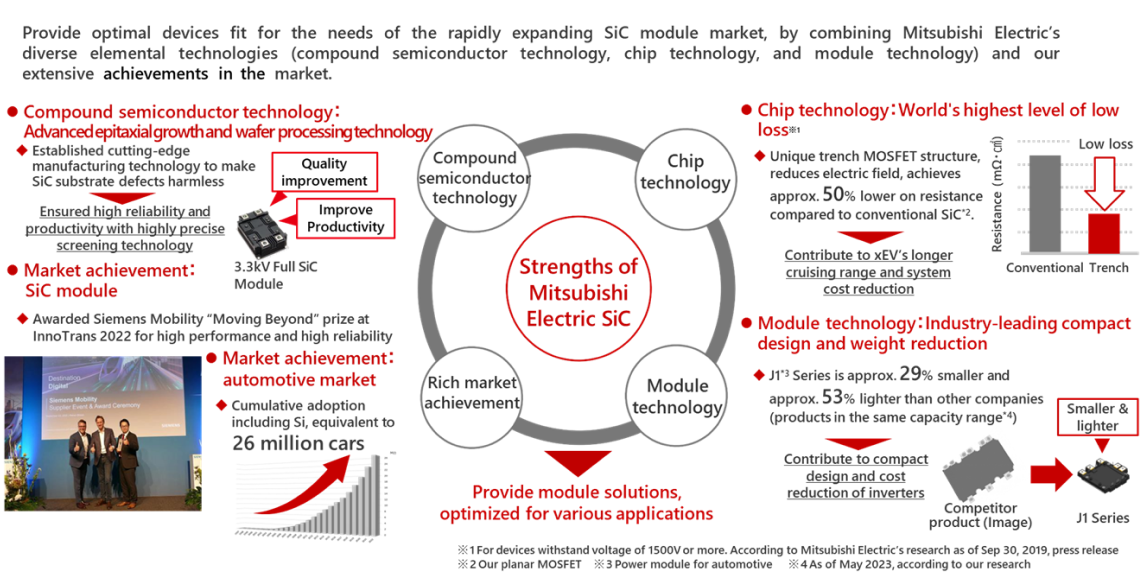

The strengths of Mitsubishi Electric's SiC
Lineup

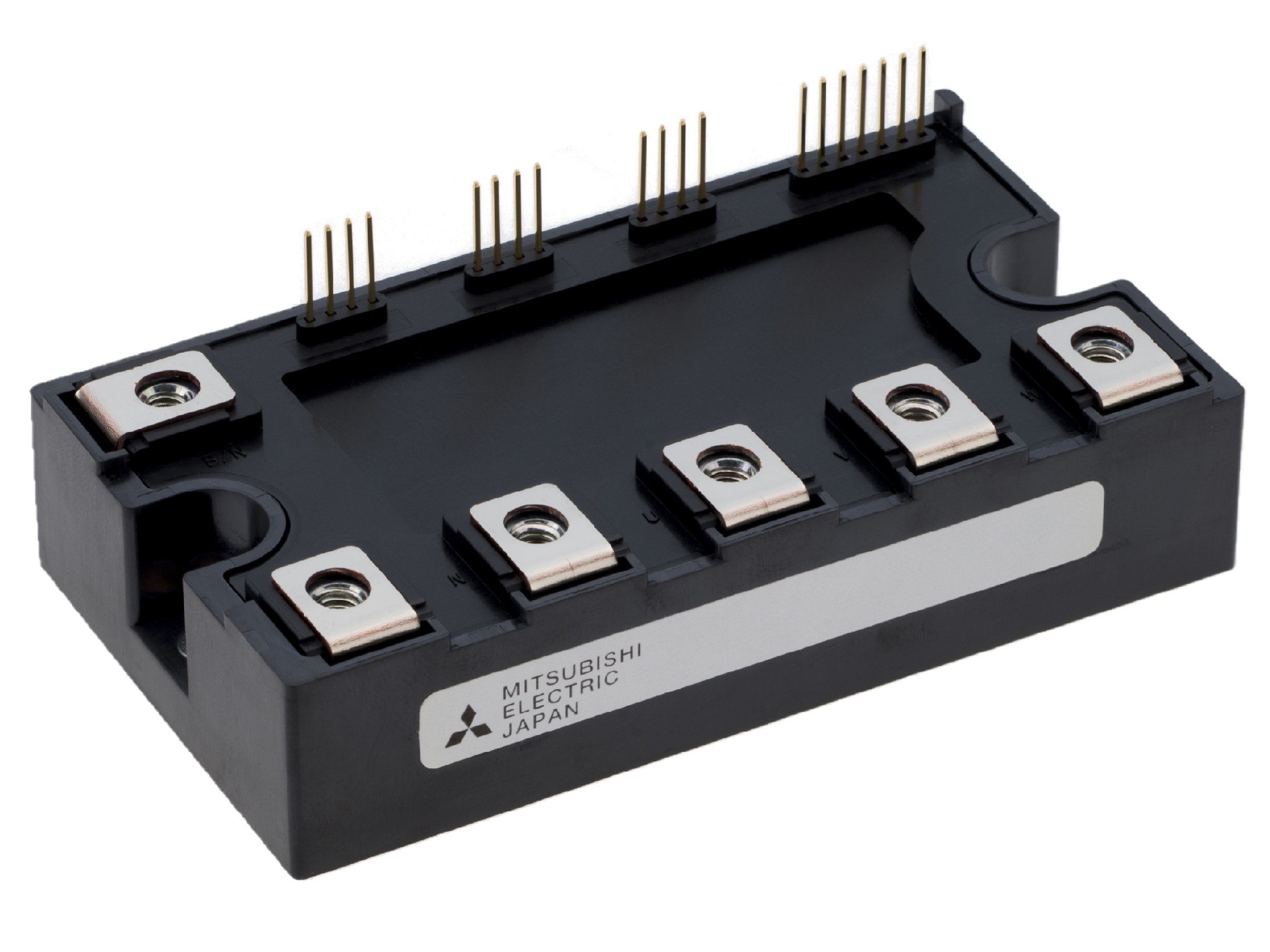

Full-SiC Power Module
| Rated voltage(V) | Rated current(A) | Circuit configulation | Model | Package size(mm) | Picture |
|---|---|---|---|---|---|
| 1200 | 400 | 92.3 × 121.7 |  | ||
80 × 110 |  | ||||
62 × 108 |  | ||||
| 600 | 62 × 121.7 |  | |||
| 800 | 92.3 × 121.7 | | |||
| 1700 | 600 | 62 × 121.7 | |
Built-in short circuit limit circuit Full-SiC Power Module
| Rated voltage(V) | Rated current(A) | Circuit configulation | Model | Package size(mm) | Picture |
|---|---|---|---|---|---|
| 1200 | 300 | 79.1 × 122 |  | ||
| 400 | |||||
| 600 | 79.6 × 122 |  | |||
| 800 | |||||
| 1200 | 152 × 122 |  | |||
| 1700 | 300 | 79.6 × 122 | | ||

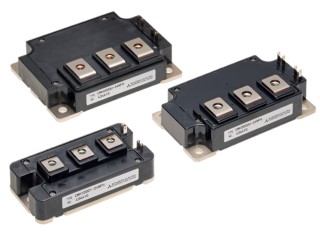

Hybrid-SiC Power Module
| Rated voltage(V) | Rated current(A) | Circuit configulation | Model | Package size(mm) | Picture |
|---|---|---|---|---|---|
| 1200 | 100 | 48 × 94 |  | ||
| 150 | |||||
| 200 | 62 × 108 |  | |||
| 300 | |||||
| 400 | 80 × 110 | | |||
| 600 | |||||
| 400 | 62 × 108 |  |

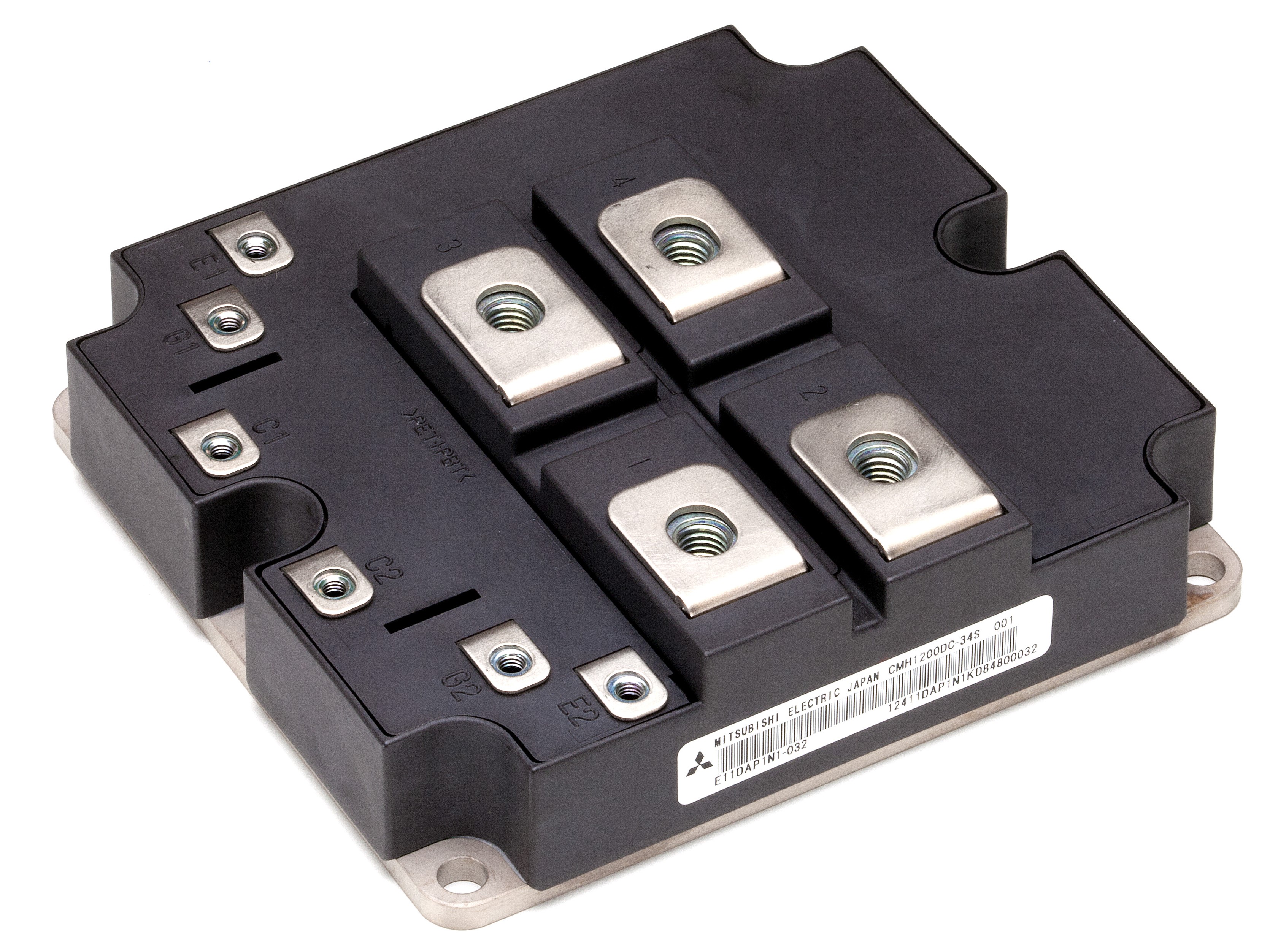

HV Full-SiC Power Module
| Rated voltage(V) | Rated current(A) | Circuit configulation | Model | Package size(mm) | Picture |
|---|---|---|---|---|---|
| 3300 | 185 | 100 × 140 |  | ||
| 375 | |||||
| 750 | |||||
| 800 |
※1: Products falling under the subject item No. 2 (41) 3 of Appended Table 1 of the Export Trade Control Order
HV Hybrid-SiC Power Module
| Rated voltage(V) | Rated current(A) | Circuit configulation | Model | Package size(mm) | Picture |
|---|---|---|---|---|---|
| 3300 | 600 | 100 × 140 | | ||
| 1700 | 1200 | 130 × 140 |  |

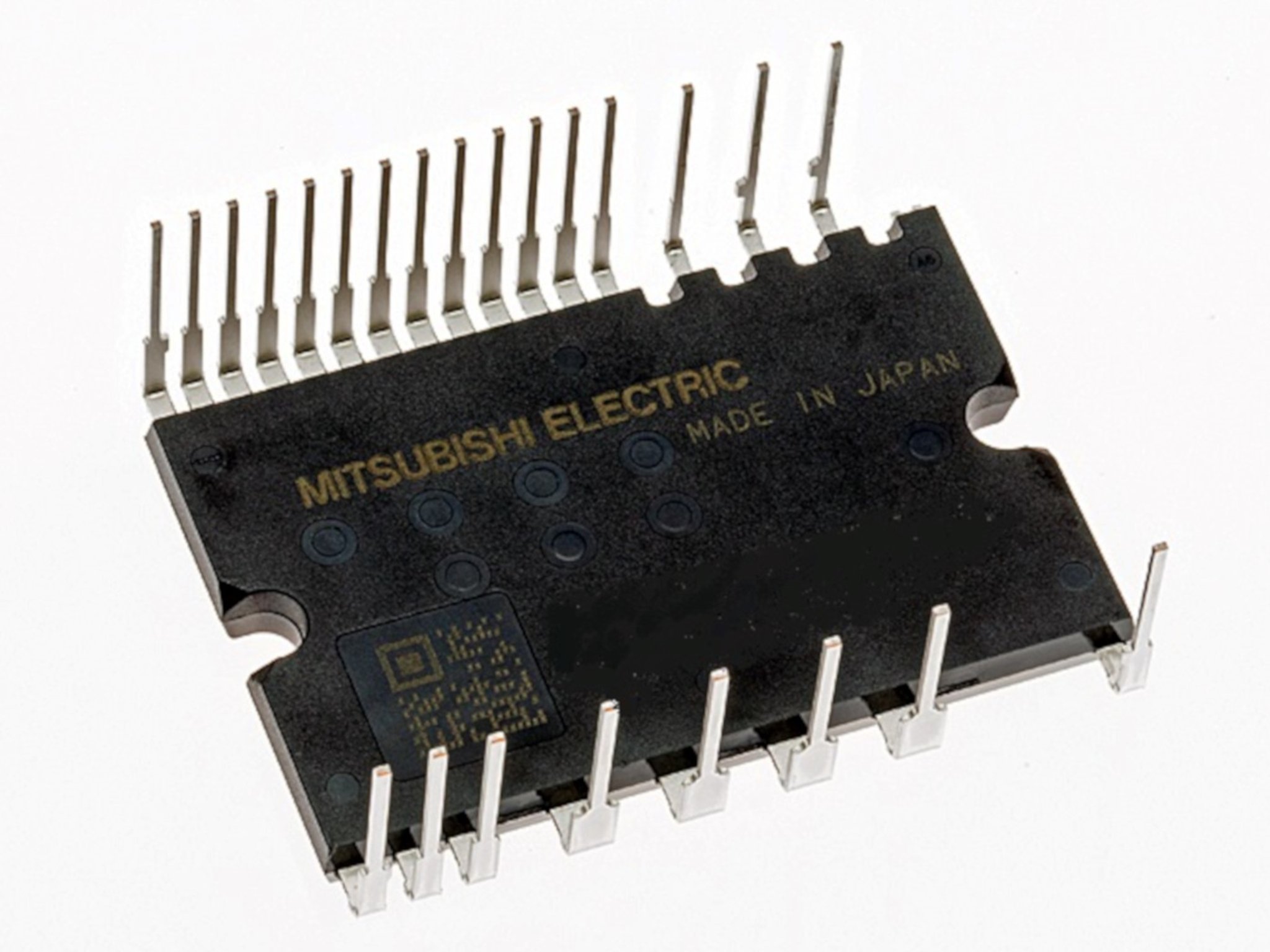

SiC DIPIPM
| Rated voltage(V) | Rated current(A) | Circuit configulation | Model | Package size(mm) | Picture |
|---|---|---|---|---|---|
| 600 | 15 | 38 × 24 | | ||
| 25 |
SiC DIPPFC
| Rated voltage(V) | Input current(Arms) | Circuit configulation | Model | Package size(mm) | Picture |
|---|---|---|---|---|---|
| 600 | 30 |
| 38 × 24 | |
