Controllers MELSEC iQ-R Series Product features -Lineup-
Lineup

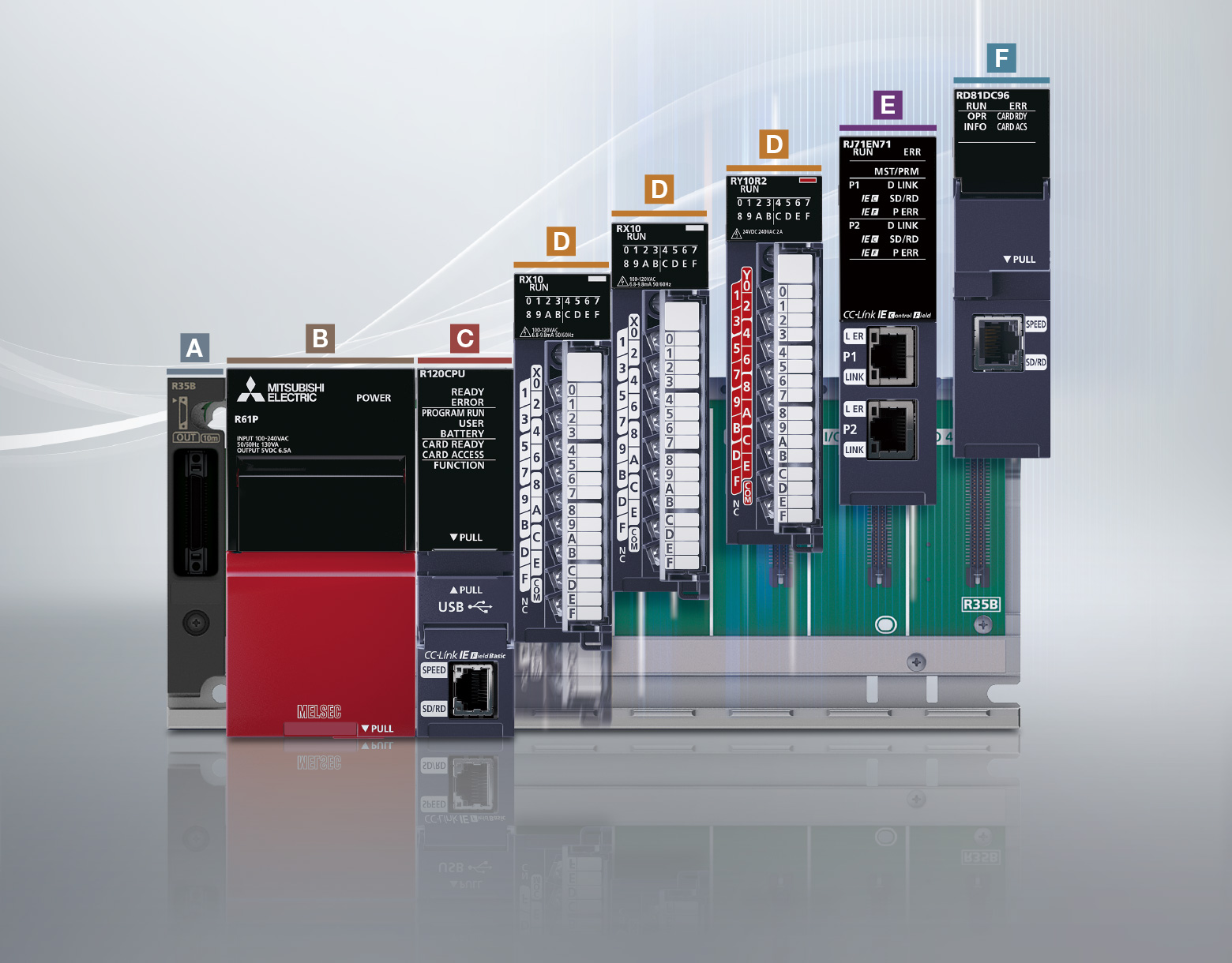

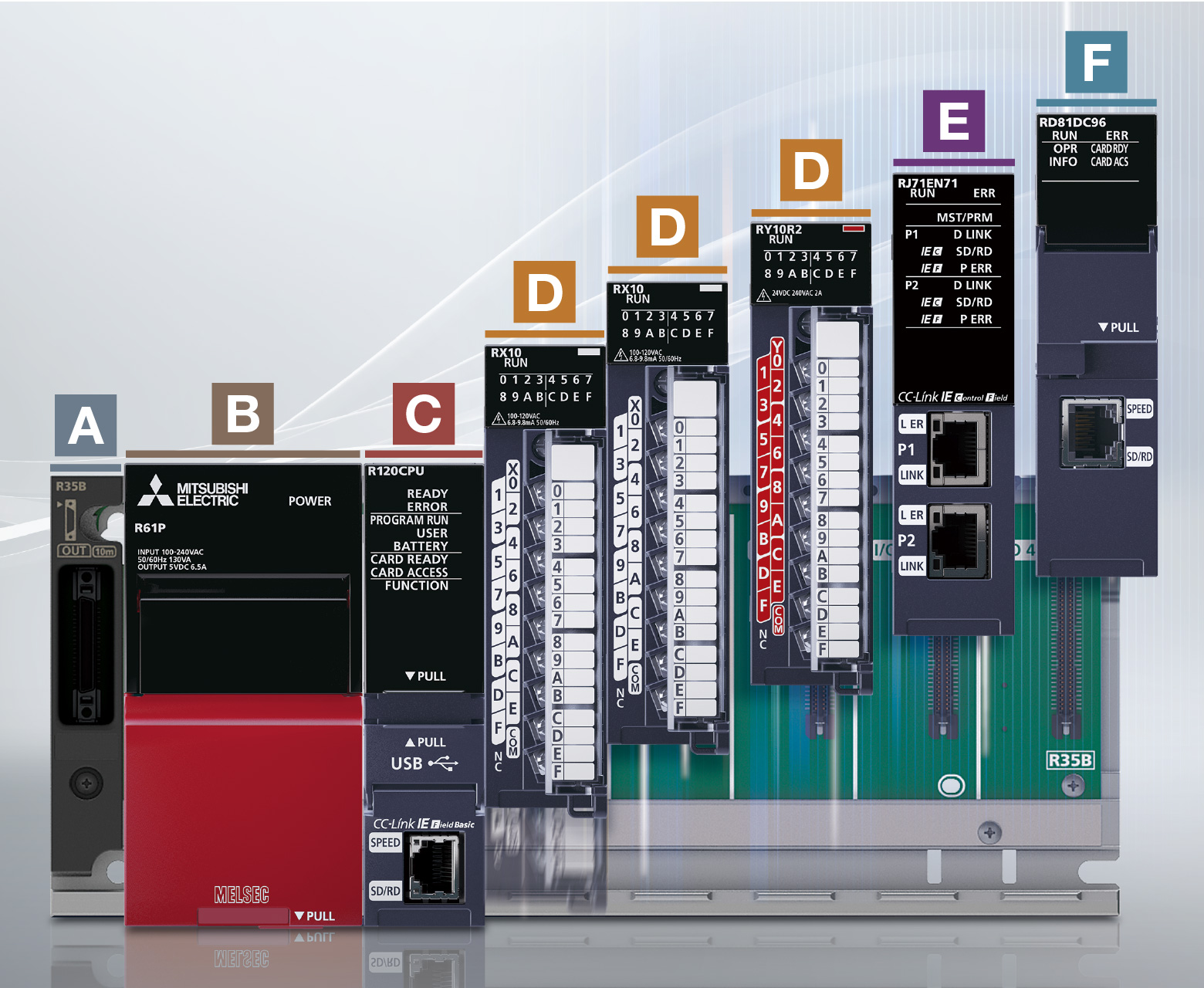

- The MELSEC iQ-R Series features a modular design, allowing you to select modules according to your specific control requirements. This flexibility makes replacing failed modules and adding modules for system expansion easy.

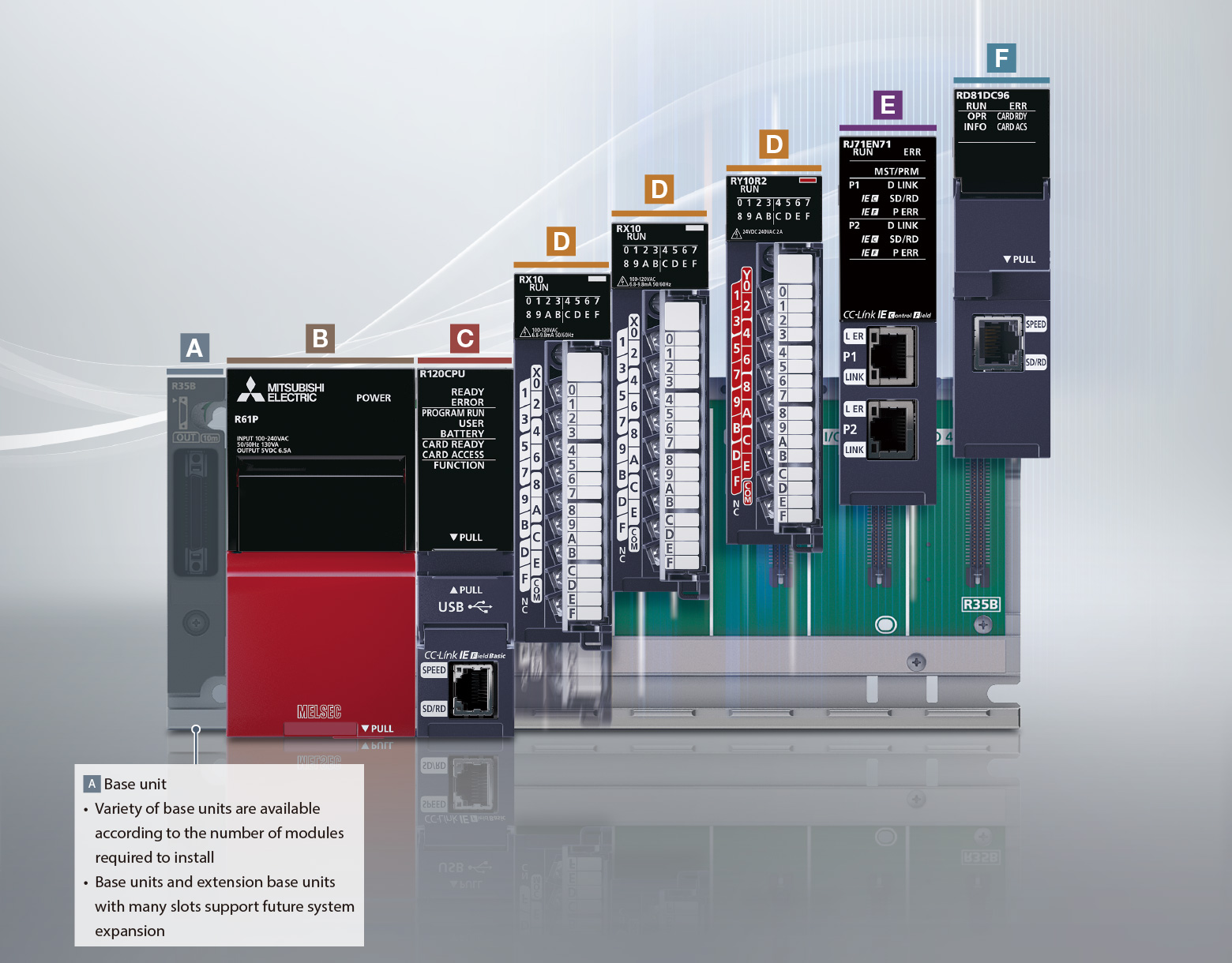

- ABase unit
- Variety of base units are available according to the number of modules required to install
- Base units and extension base units with many slots support future system expansion

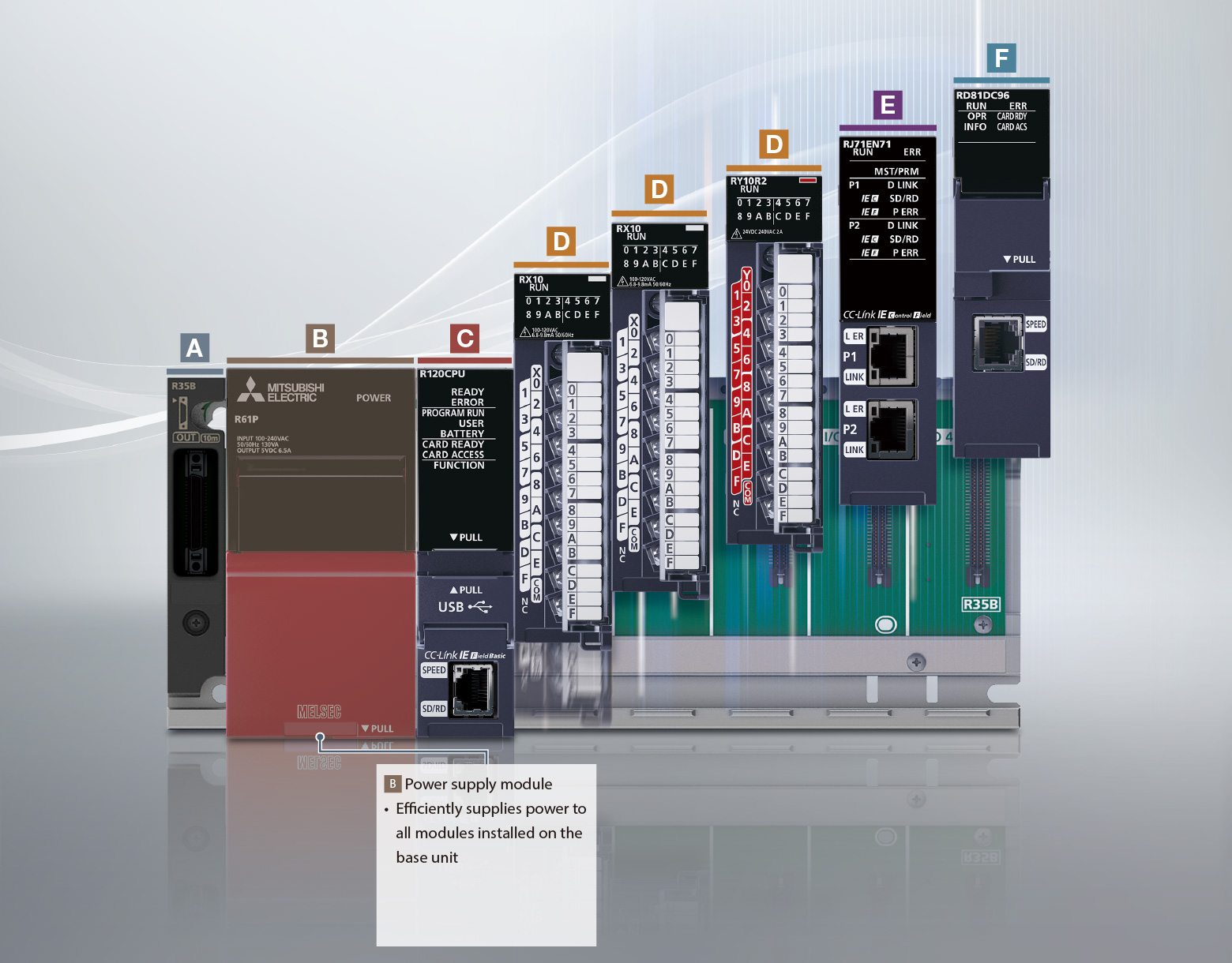

- BPower supply module
- Efficiently supplies power to all modules installed on the base unit

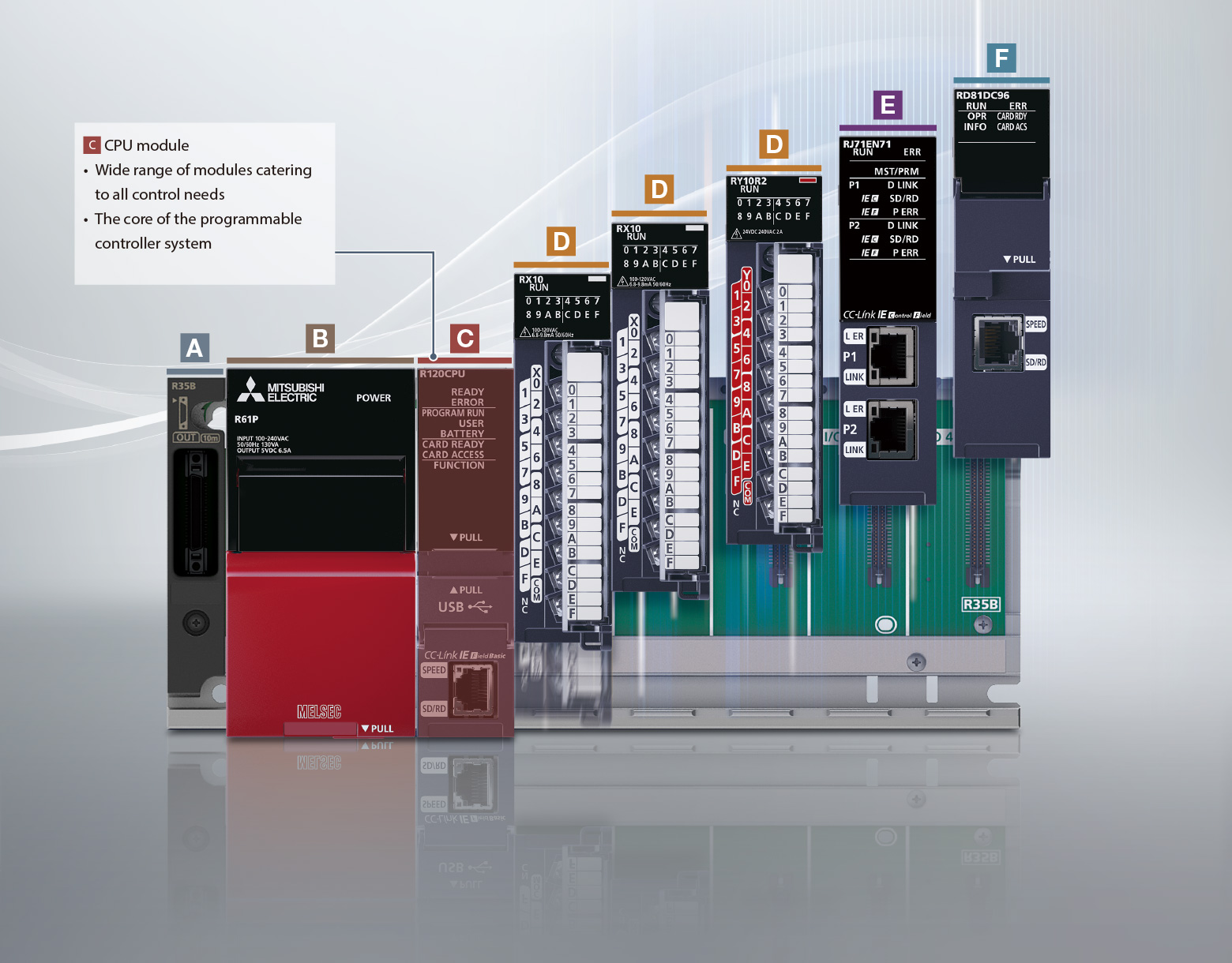

- CCPU module
- Wide range of modules catering to all control needs
- The core of the programmable controller system

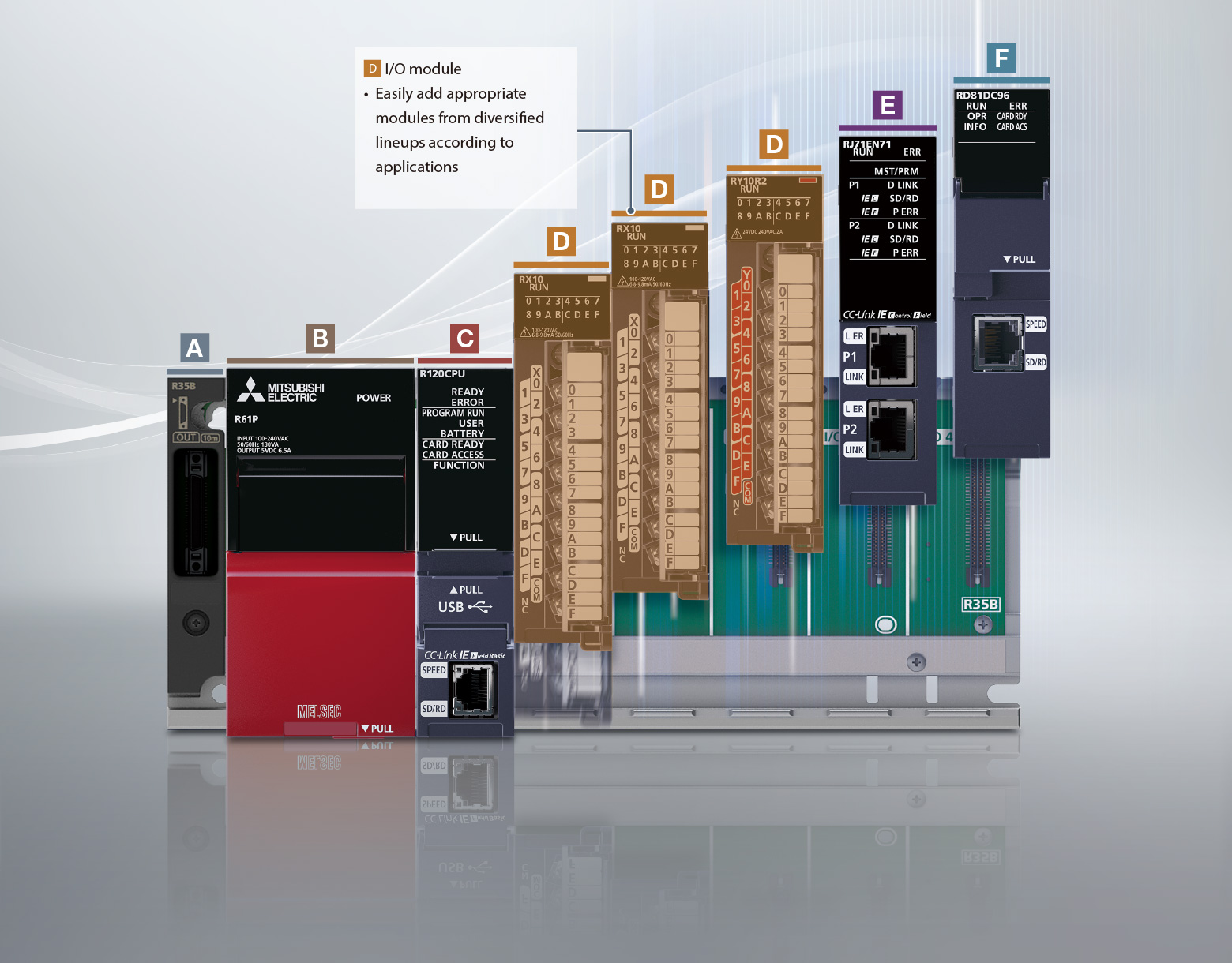

- DI/O module
- Easily add appropriate modules from diversified lineups according to applications

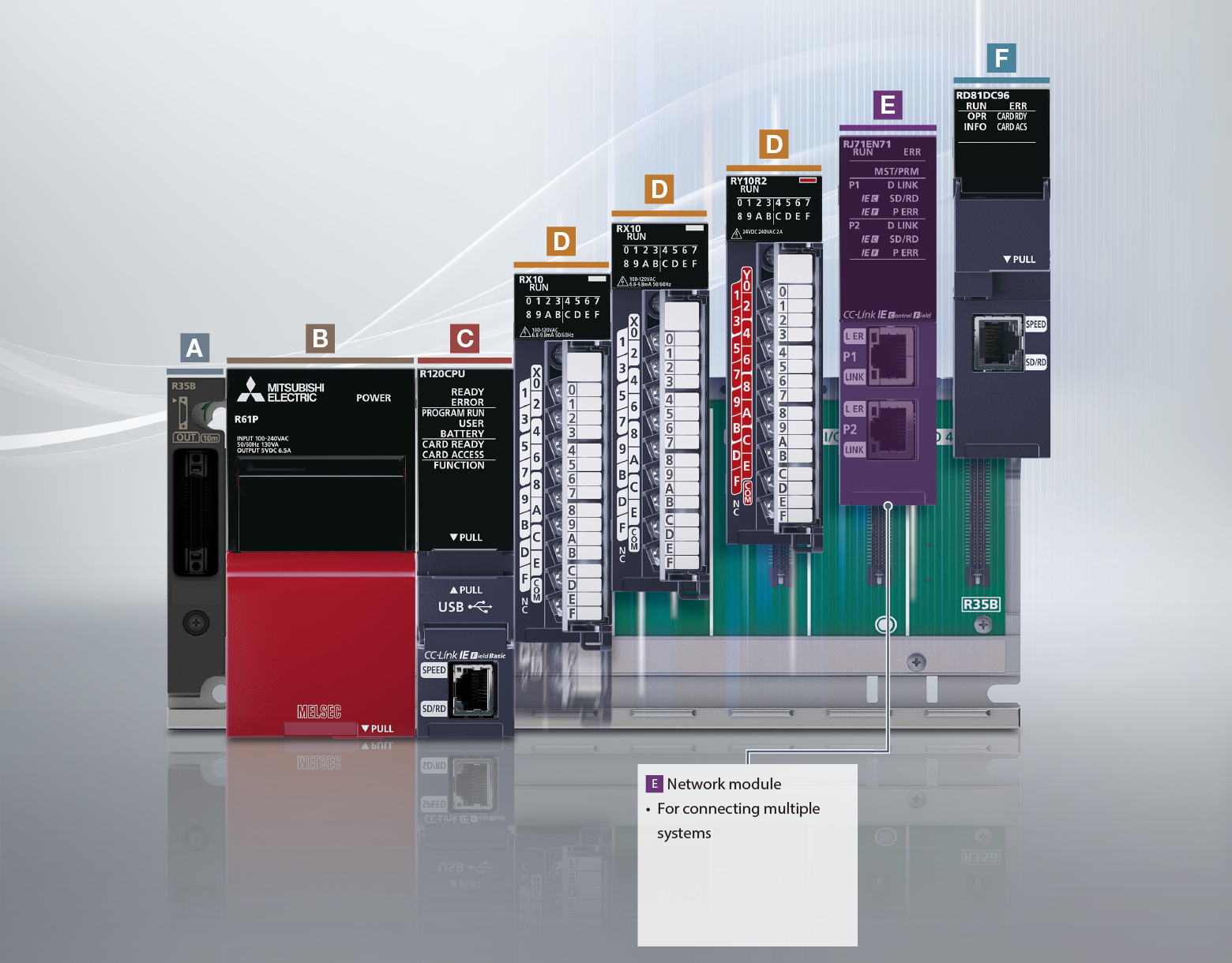

- ENetwork module
- For connecting multiple systems
- FAdvanced information module
- Provides connectivity with IT systems for data communications and analysis
Main base
Redundant power supply main base
Extended temperature range main base
Extended temperature range redundant power supply main base
Slim type base
Extension base
Redundant power supply extension base
Redundant system extension base
Extended temperature range extension base
Extended temperature range redundant power supply extension base
Extended temperature range redundant system extension base
RQ extension base
Extension cable
DIN rail mounting adapter
Blank cover
Power supply
Redundant power supply
Slim type power supply
DC input
DC high-speed input
DC input with diagnostic functions
DC input with safety functions
AC input
Transistor (sink) output
Transistor (source) output
High-speed transistor (sink) output
High-speed transistor (source) output
Transistor output with diagnostic functions
Transistor output with safety functions
Relay output
Triac output
I/O combined DC input,
transistor (sink) output
Analog input
High-speed analog input
Analog output
High-speed analog output
DTemperature input, and temperature control modules
Temperature input (channel isolated)
Temperature/micro voltage input module
- R60TRD4-G NEW
Temperature control
Temperature control (heater disconnection detection)
DMotion and positioning modules
Motion (Compatible with CC-Link IE TSN)
Simple motion (Compatible with CC-Link IE Field network)
Simple motion (Compatible with SSCNET Ⅲ/H)
Positioning
Transistor output
Positioning
Differential driver output
FPGA*1 modules
- *1.FPGA stands for field programmable gate array.
