Energy Measuring UnitsEcoMonitorPlus

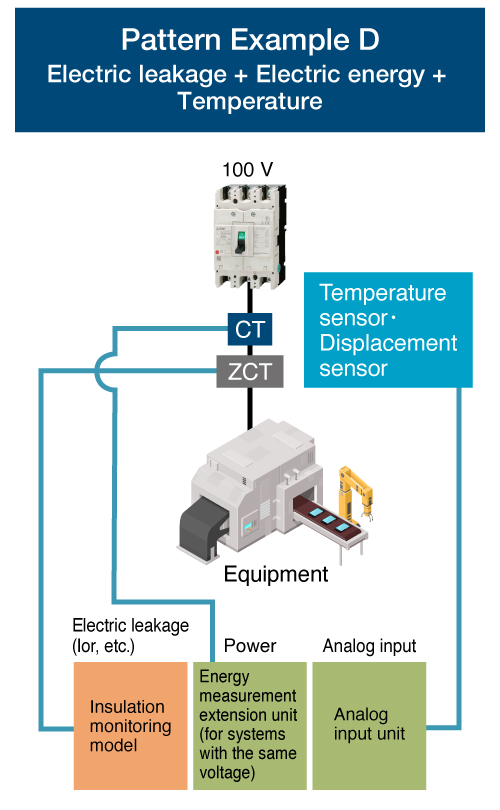

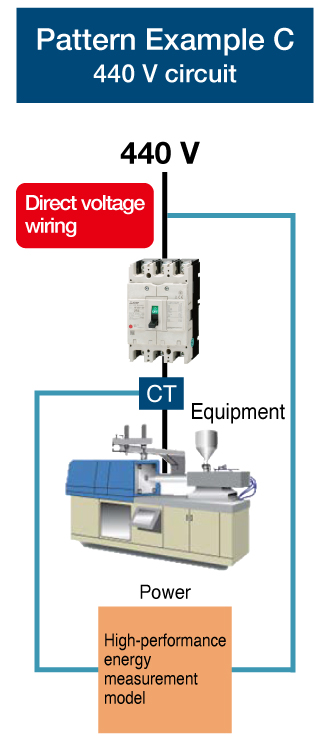

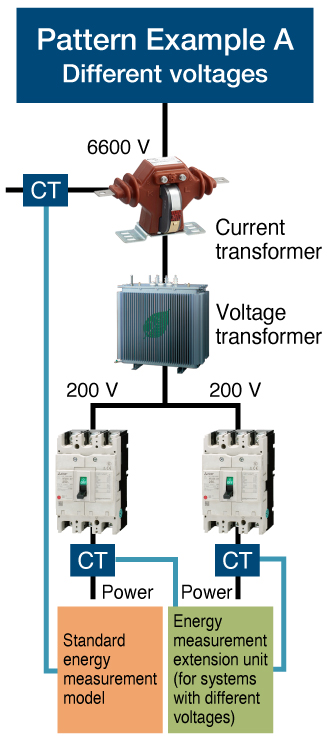

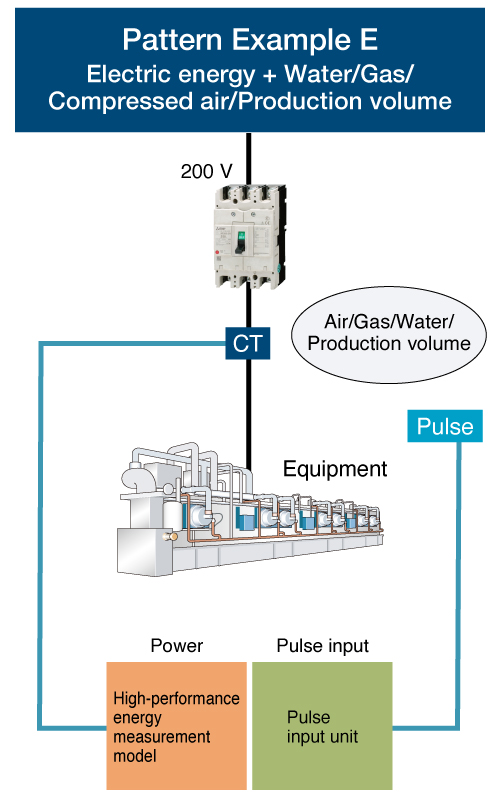

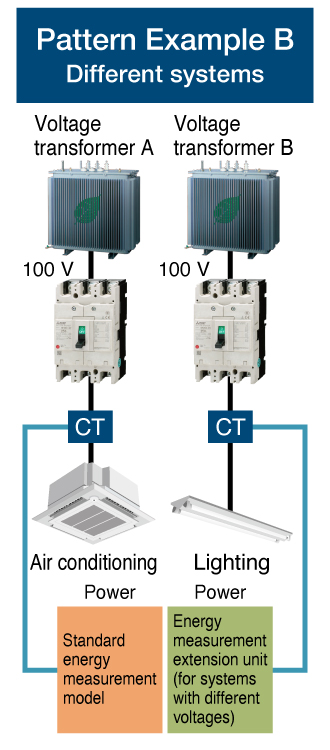

Contoh Kombinasi Satuan
Penggabungan satuan memungkinkan penggunaan dalam berbagai macam skenario.
*1：Contoh pola ini merupakan representasi skematis dari satu kemungkinan kombinasi. Pastikan untuk mengonfirmasi metode pemasangan kabel yang diizinkan dalam buku petunjuk pengoperasian sebelum menggunakan peralatan.
Contoh Instalasi

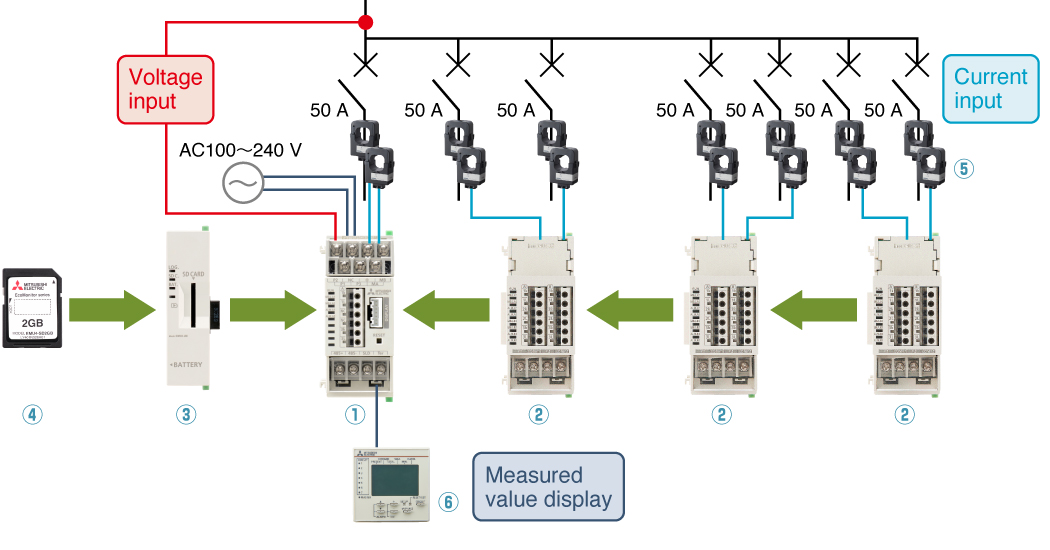

Pengukuran daya 7 sirkuit (Sistem tiga fase 3-kawat, Sirkuit tegangan rendah, Arus primer terukur: 50 A)
| Product name | Model | Quantity | |
|---|---|---|---|
| ① | Energy measuring unit (Standard energy measurement model) |
EMU4-BM1-MB | 1 |
| ② | Energy measuring unit (Energy measurement extension unit for systems with the same voltage) |
EMU4-A2 | 3 |
| ③ | Logging unit | EMU4-LM | 1 |
| ④ | Logging unit SD card | EMU4-SD2GB | 1 |
| ⑤ | Split-type current sensor | EMU-CT50-A | 14 |
| ⑥ | Display unit | EMU4-D65 | 1 |

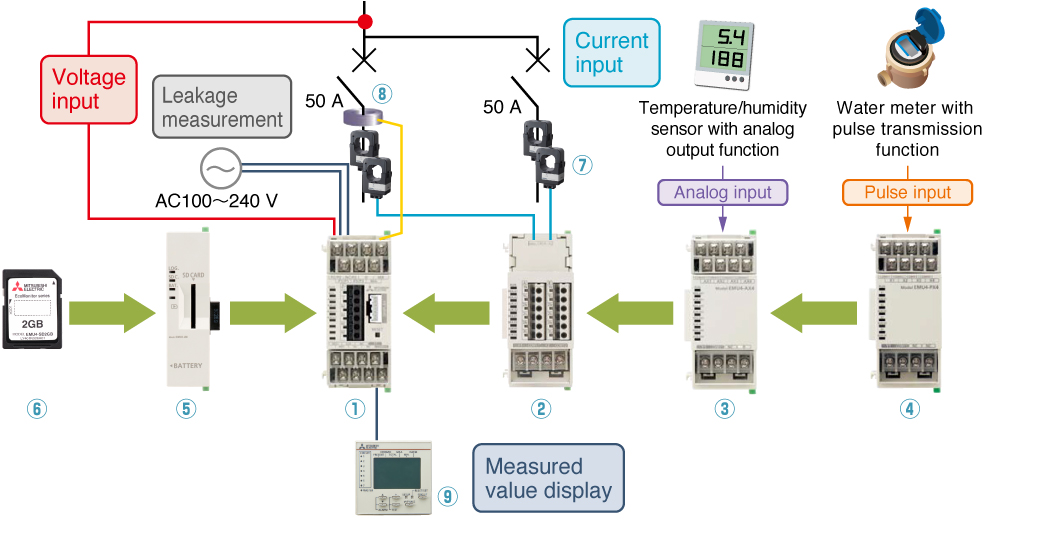

Pengukuran kebocoran 1 sirkuit + Pengukuran daya 2 sirkuit (Sistem tiga fase 3-kawat, Sirkuit tegangan rendah, Arus primer terukur: 50 A) + Input analog (4 titik) + Input pulsa (4 titik)
| Product name | Model | Quantity | |
|---|---|---|---|
| ① | Energy measuring unit (Insulation monitoring model) |
EMU4-LG1-MB | 1 |
| ② | Energy measuring unit (Energy measurement extension unit for systems with the same voltage) |
EMU4-A2 | 1 |
| ③ | Analog input unit | EMU4-AX4 | 1 |
| ④ | Pulse input unit | EMU4-PX4 | 1 |
| ⑤ | Logging unit | EMU4-LM | 1 |
| ⑥ | Logging unit SD card | EMU4-SD2GB | 1 |
| ⑦ | Split-type current sensor | EMU-CT50-A | 4 |
| ⑧ | Split-type zero-phase current transformer | CZ-22S | 1 |
| ⑨ | Display unit | EMU4-D65 | 1 |
